Dealer part number 837075-VAL
Part Number 837075
Parts Description FULLPACK DMF with High
Efficiency Clutch
Packing unit 1
Quantity per PU -
Parts state Normal
EAN 3276428370750
Vehicle VW T5 Van (7HA, 7HH, 7EA, 7EH) 2.0
TDI
Constr.year 09.09 - 08.15
Power 75kW / 102HP
Capacity 1968
Engine Code CAAB
KBA Keynumber 0603 ARH , 0603 AVQ
Properties vehicle
Transmission Type Manual Transmission
Vehicle Equipment for vehicles without start-stop function
Vehicle Identification Number (VIN) from C-000 001
Characteristics
New Part
Supplementary Article/Supplementary Info with dual-mass flywheel
Number of mounting bores 6
Supplementary Article/Info 2 with screw set
with lock screw set
with clutch release bearing
Tightening Torque [Nm] 60 Nm
Tightening angle [degrees] 50 °
Clutch Pressure Plate Outer Diameter [mm] 228
Number of Teeth 28
only available in set
Weight [kg] 14,85 kg
OE numbers
Audi: 02A141165A, 02A141165D, 02A141165E, 02A141165G, 02A141165M, 02A141165P, 02A141165R,
03G141015G, 03G141015N, 03G141015NX, 03L105266AH, 03L105266BH, 03L141015P, 03L141015PX, 2A141165A,
2A141165D, 2A141165E, 2A141165G, 2A141165M, 2A141165P, 2A141165R, 3G141015G, 3G141015N, 3G141015NX,
3L105266AH, 3L105266BH, 3L141015P, 3L141015PX
Audi (FAW): 02A141165M, 02A141165R, 2A141165M, 2A141165R
Jetta: 02A141165A, 02A141165G, 02A141165M, 2A141165A, 2A141165G, 2A141165M
SEAT: 02A141165A, 02A141165G, 02A141165M, 02A141165P, 02A141165R, 03G141015G, 03G141015N,
03G141015NX, 03L105266BH, 03L105266EA, 03L141015P, 03L141015PX, 2A141165A, 2A141165G, 2A141165M,
2A141165P, 2A141165R, 3G141015G, 3G141015N, 3G141015NX, 3L105266BH, 3L105266EA, 3L141015P,
3L141015PX
VALEO - 837075-VAL - Clutch Kit 27.02.2025
Page 1 From
3
OE numbers
Skoda: 02A141165A, 02A141165G, 02A141165M, 02A141165P, 02A141165R, 03G141015G, 03G141015N,
03G141015NX, 03L105266AH, 03L105266BH, 03L105266EA, 03L141015P, 03L141015PX, 06F141015B, 2A141165A,
2A141165G, 2A141165M, 2A141165P, 2A141165R, 3G141015G, 3G141015N, 3G141015NX, 3L105266AH,
3L105266BH, 3L105266EA, 3L141015P, 3L141015PX, 6F141015B
Skoda (SVW): 02A141165M, 02A141165R, 2A141165M, 2A141165R
VW: 02A141165A, 02A141165B, 02A141165D, 02A141165E, 02A141165G, 02A141165M, 02A141165P, 02A141165R,
03G141015F, 03G141015G, 03G141015M, 03G141015MX, 03G141015N, 03G141015NX, 03L105266AH,
03L105266BH, 03L105266EA, 03L141015N, 03L141015NX, 03L141015P, 03L141015PX, 03L141025K, 06F141015B,
2A141165A, 2A141165B, 2A141165D, 2A141165E, 2A141165G, 2A141165M, 2A141165P, 2A141165R, 3G141015F,
3G141015G, 3G141015M, 3G141015MX, 3G141015N, 3G141015NX, 3L105266AH, 3L105266BH, 3L105266EA,
3L141015N, 3L141015NX, 3L141015P, 3L141015PX, 3L141025K, 6F141015B
VW (FAW): 02A141165G, 02A141165M, 02A141165P, 02A141165R, 03L141015P, 2A141165G, 2A141165M,
2A141165P, 2A141165R, 3L141015P
VW (SVW): 02A141165M, 02A141165R, 03L141015P, 2A141165M, 2A141165R, 3L141015P
Parts list
Part Number Parts Description Quantity
838258-VAL
VALEO
838258
Clutch Kit
SERVICE KIT3P for FULLPACK DMF
Supplementary Article/Info 2: with clutch release bearing
1
Accessory Lists
Part Number Parts Description Quantity
135000 Grease 1
Additional information
Technical Information
Interchangeability with LuK or Sachs version if replacement
of the complete kit with FullPACK DMF
VALEO - 837075-VAL - Clutch Kit 27.02.2025
Page 2 From
3

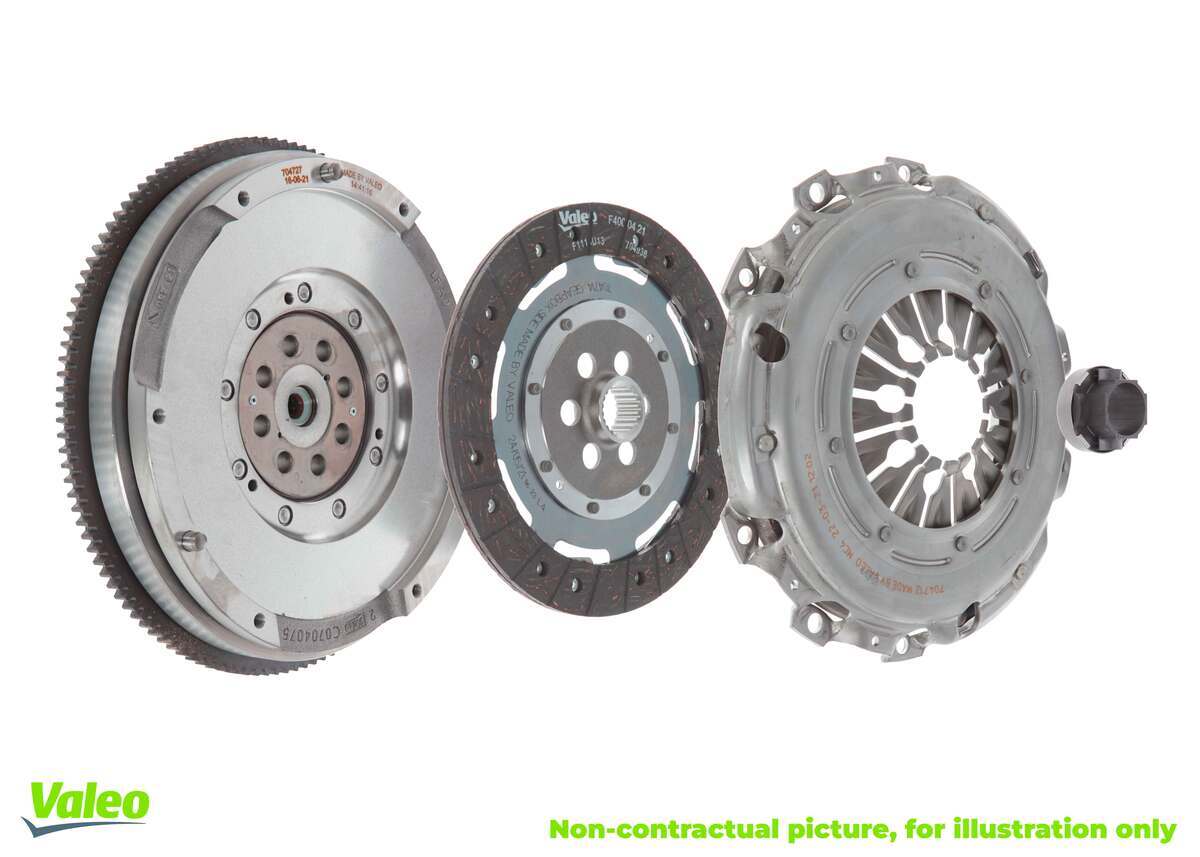

Images
VALEO - 837075-VAL - Clutch Kit
