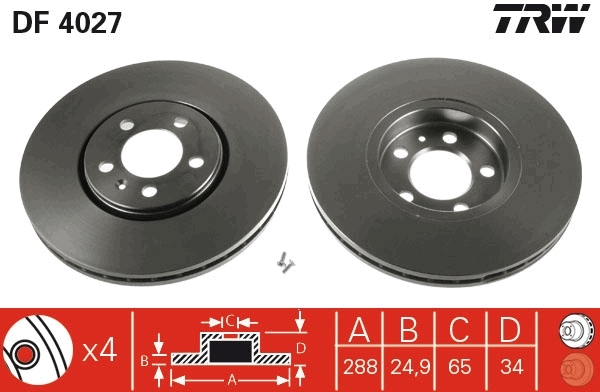

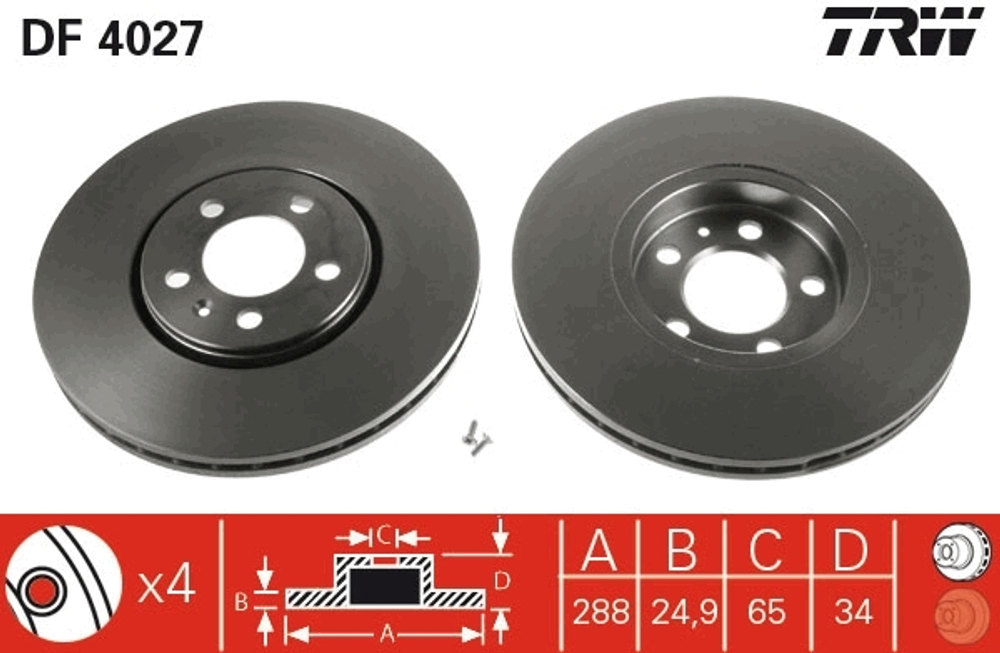

TRW - DF4027-TRW - Brake Disc

Characteristics Brake Disc Type Vented Diameter [mm] 288 mm Brake Disc Thickness [mm] 25 mm Minimum thickness [mm] 22 mm Centering Diameter [mm] 65 mm Height [mm] 34 mm Number of Holes 5 Thread Size 15,5 Bolt Hole Circle Ø [mm] 100 mm Machining High-carbon Colour black Surface painted Test Mark E190R-02C0185/0551. OE numbers Audi Interchangeable - 1JO 615 301 C Interchangeable - 1J0 615 301 C Interchangeable - 1J0 615 301 K Interchangeable - 1J0 615 301 R Interchangeable - 1J0 615 301 S Interchangeable - 6R0 615 301 A Interchangeable - 6R0 615 301 D SEAT Interchangeable - JZW 615 301 D Interchangeable - 1JO 615 301 C Interchangeable - 1J0 615 301 Interchangeable - 1J0 615 301 C Interchangeable - 1J0 615 301 K Interchangeable - 1J0 615 301 R Interchangeable - 1J0 615 301 S Interchangeable - 6R0 615 301 A Interchangeable - 6R0 615 301 D Skoda Interchangeable - JZW 615 301 D Interchangeable - 1JO 615 301 C Interchangeable - 1J0 615 301 Interchangeable - 1J0 615 301 C Interchangeable - 1J0 615 301 K Interchangeable - 1J0 615 301 R Interchangeable - 1J0 615 301 S Interchangeable - 6R0 615 301 A Interchangeable - 6R0 615 301 D VW Interchangeable - JZW 615 301 D Interchangeable - 1JO 615 301 C Interchangeable - 1J0 615 301 Interchangeable - 1J0 615 301 C Interchangeable - 1J0 615 301 K Interchangeable - 1J0 615 301 R Interchangeable - 1J0 615 301 S Interchangeable - 6R0 615 301 A Interchangeable - 6R0 615 301 D VW (SVW) Interchangeable - 6R0 615 301 A. Documents/Illustrations Service Information: 33F7364B02300DE393BDE1A4C123A8D7C61E94C5BF365A8BD524EF8FDD17B916 Service Information: C1CF19B99778FA119E60324B5CE36C7499E864664A93088D4ED1508E5E5DC4CF
