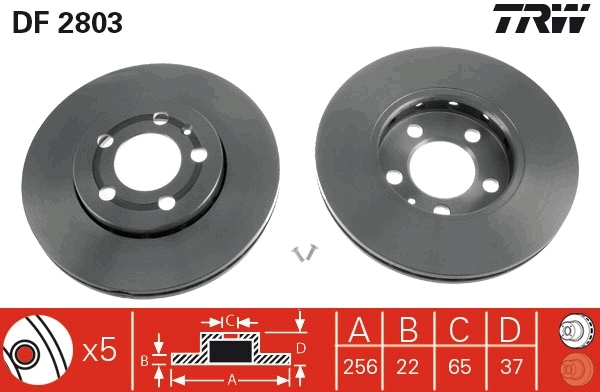

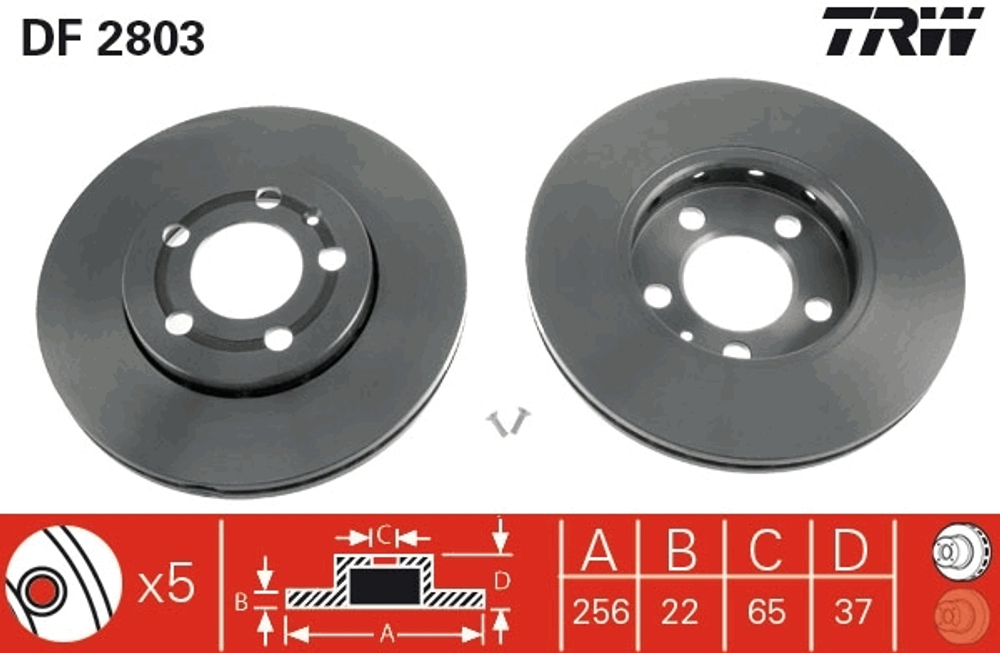

TRW - DF2803-TRW - Brake Disc

Characteristics Brake Disc Type Vented Diameter [mm] 256 mm Brake Disc Thickness [mm] 22 mm Minimum thickness [mm] 19 mm Centering Diameter [mm] 65 mm Height [mm] 37 mm Number of Holes 5 Thread Size 16 Bolt Hole Circle Ø [mm] 100 mm Machining High-carbon Colour black Surface painted Test Mark E1 90R-02 C0185/2514. Replacement numbers Item replaces Brake Disc - DF4235. OE numbers Audi Interchangeable - 1J0 615 301 D Interchangeable - 1J0 615 301 L Interchangeable - 5Z0 615 301 B Interchangeable - 6R0 615 301 Interchangeable - 6R0 615 301 C Interchangeable - 8Z0 615 301 B Interchangeable - 8Z0 615 301 D Brilliance Interchangeable - 3496025 SEAT Interchangeable - 1J0 615 301 D Interchangeable - 1J0 615 301 L Interchangeable - 1J0 698 301 D Interchangeable - 5Z0 615 301 B Interchangeable - 6R0 615 301 Interchangeable - 6R0 615 301 C Skoda Interchangeable - 1J0 615 301 D Interchangeable - 1J0 615 301 L Interchangeable - 6RF 615 301 A Interchangeable - 6RF 615 301 C Interchangeable - 6R0 615 301 Interchangeable - 6R0 615 301 C Skoda (SVW) Interchangeable - 6QD 615 301 Interchangeable - 6RD 615 301 VW Interchangeable - 1JE 615 301 Interchangeable - 1J0 615 301 D Interchangeable - 1J0 615 301 L Interchangeable - 5Z0 615 301 B Interchangeable - 6RF 615 301 A Interchangeable - 6RF 615 301 C Interchangeable - 6R0 615 301 Interchangeable - 6R0 615 301 C Interchangeable - 8Z0 615 301 D VW (FAW) Interchangeable - 6RD 615 301 VW (SVW) Interchangeable - 6QD 615 301 Interchangeable - 6RD 615 301 Interchangeable - 6R0 615 301
