TRW - DF1529-TRW - Brake Disc

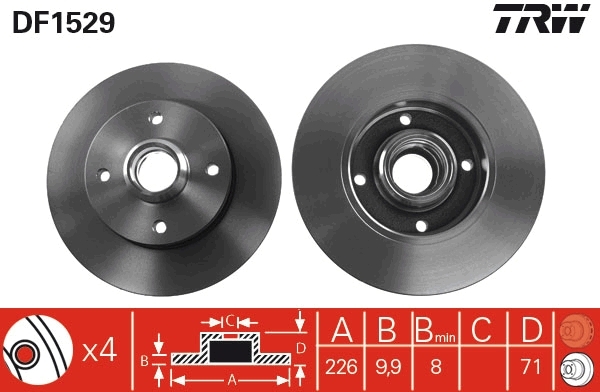

Characteristics Surface painted Brake Disc Type Solid Diameter [mm] 226 mm Brake Disc Thickness [mm] 10 mm Minimum thickness [mm] 8 mm Height [mm] 71 mm Centering Diameter [mm] 40 mm Number of Holes 4 Thread Size M12 x 1,50 Bolt Hole Circle Ø [mm] 100 mm Colour black. OE numbers Audi Interchangeable - 1HM 615 601 Interchangeable - 191 615 601 SEAT Interchangeable - 1HM 615 601 Interchangeable - 191 615 601 Interchangeable - 191 615 601 A Interchangeable - 191 615 601 B Interchangeable - 357 615 601 Interchangeable - 6N0 615 601 Skoda Interchangeable - 1HM 615 601 Interchangeable - 191 615 601 Interchangeable - 6N0 615 601 VW Interchangeable - 1HM 615 601 Interchangeable - 191 615 601 Interchangeable - 191 615 601 A Interchangeable - 191 615 601 B Interchangeable - 357 615 601 Interchangeable - 6N0 615 601. Documents/Illustrations Service Information: 33F7364B02300DE393BDE1A4C123A8D7C61E94C5BF365A8BD524EF8FDD17B916 Service Information: C1CF19B99778FA119E60324B5CE36C7499E864664A93088D4ED1508E5E5DC4CF
