Dealer part number 92159905-TET
Part Number 92159905
Parts Description PRO+
Packing unit 1
Quantity per PU 2
Parts state Normal
EAN 4019722438998
Vehicle Audi A4 Allroad B9 (8WH, 8WJ) 2.0
TDI quattro
Constr.year 01.16 -
Power 140kW / 190HP
Capacity 1968
Engine Code DESA, DETA, DFVA
KBA Keynumber 0588 BHA
Properties vehicle
Fitting Position Front Axle
for PR number 1LA
1LB

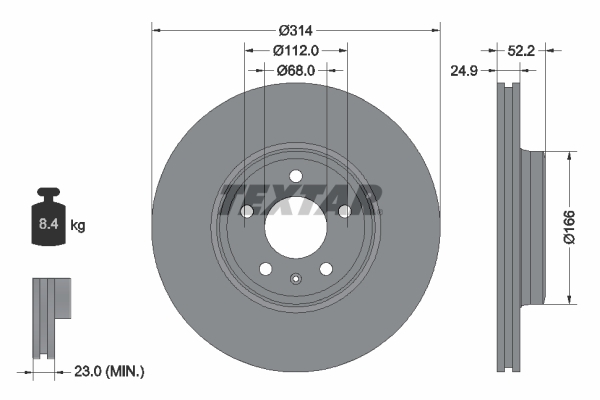

Characteristics
Brake Disc Type Vented
Diameter [mm] 314 mm
Brake Disc Thickness [mm] 25 mm
Height [mm] 52 mm
Minimum thickness [mm] 23 mm
Machining High-carbon
Surface Coated
Inner Diameter [mm] 154 mm
Bolt Hole Circle Ø [mm] 112 mm
Centering Diameter [mm] 68 mm
Hole Arrangement/Number 05/06
Wheel Bolt Bore Diameter [mm] 15 mm
Supplementary Article/Info 2 without wheel hub
without wheel bearing
without wheel studs
Packaging length [cm] 32,8 cm
Packaging width [cm] 32,8 cm
Packaging height [cm] 12,5 cm
Weight [kg] 8,4 kg
Additional parts information
Alternative reference no
92159903
TEXTAR - 92159905-TET - Brake Disc 22.05.2025
Page 1 From
3
Replacement numbers
92159903
OE numbers
Audi: L8K0615301, 8K0615301, 8K0615301T, 8W0615301T
Audi (FAW): L8KD615301, L8WD615301, 8WD615301
SEAT: 8K0615301, 8W0615301T
Skoda: 8K0615301, 8W0615301T
VW: 8K0098301F, 8K0615301, 8W0615301T
VW (FAW): L8WD615301
Accessory Lists
Part Number Parts Description Quantity
96000100-TET
96000100
Brake/Clutch Cleaner
Formula XT
1
96000200-TET
96000200
Brake/Clutch Cleaner
Formula XT
1
96000400 Brake/Clutch Cleaner
Formula XT
1
81000401-TET
81000401
Mounting Paste
CERA TEC
1
81001401-TET
81001401
Mounting Paste
HYDRA TEC
1
TEXTAR - 92159905-TET - Brake Disc 22.05.2025
Page 2 From
3
Images
TEXTAR - 92159905-TET - Brake Disc
