TEXTAR - 92154503-TET - Brake Disc

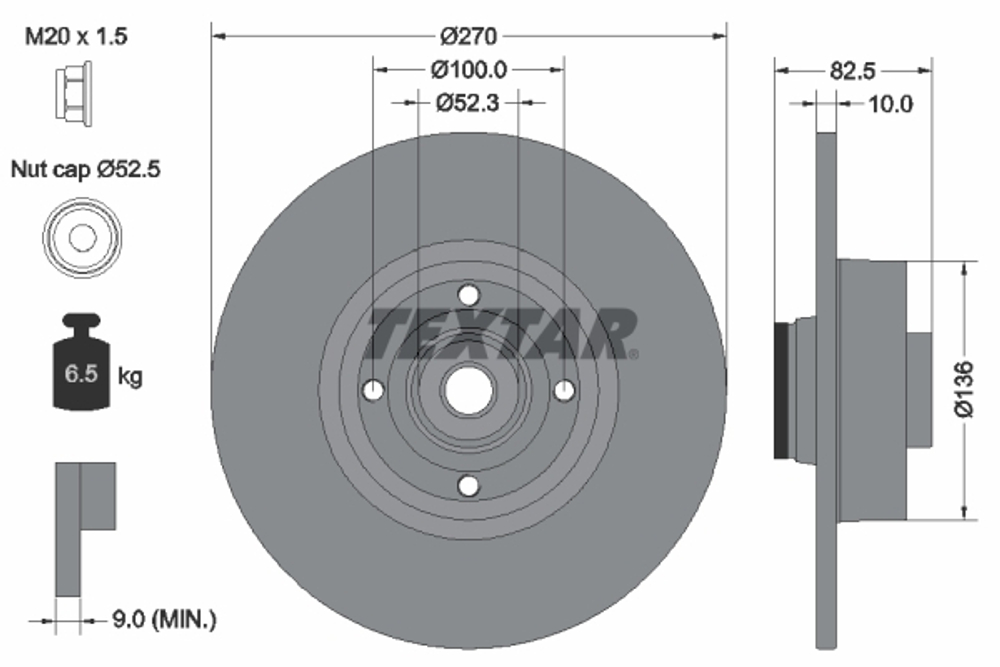

Graphic. Characteristics Brake Disc Type Solid Diameter [mm] 270 mm Brake Disc Thickness [mm] 10 mm Minimum thickness [mm] 9 mm Surface Coated Height [mm] 83 mm Hole Arrangement/Number 04/04 Bolt Hole Circle Ø [mm] 100 mm Centering Diameter [mm] 52 mm Stub Axle Diameter [mm] 25 mm Inner Diameter [mm] 125 mm Wheel Bolt Bore Diameter [mm] 12 mm Supplementary Article/Info 2 with integrated magnetic sensor ring with wheel bearing without wheel studs with wheel hub Supplementary Article/Supplementary Info with axle nut Packaging length [cm] 27,8 cm Packaging width [cm] 27,8 cm Packaging height [cm] 12,2 cm Weight [kg] 6,5 kg. Properties vehicle Fitting Position Rear Axle
