Dealer part number 2238301-TET
Part Number 2238301
Parts Description Q+
Packing unit 1
Quantity per PU 1
Parts state Normal
EAN 4019722483066
Vehicle Audi A4 Allroad B9 (8WH, 8WJ) 2.0
TDI quattro
Constr.year 01.16 -
Power 140kW / 190HP
Capacity 1968
Engine Code DESA, DETA, DFVA
KBA Keynumber 0588 BHA
Properties vehicle
Fitting Position Front Axle
for PR number 1LA
1LB
Characteristics
Width [mm] 155 mm
Height [mm] 64 mm
Thickness [mm] 17 mm
Wear Warning Contact incl. wear warning contact
Number of wear indicators [per axle] 1 Per axle
directional
WVA Number 22383
Brake System ATE
Observe mounting information
Packaging length [cm] 17 cm
Packaging width [cm] 12 cm
Packaging height [cm] 8,3 cm
Weight [kg] 1,7 kg
Utility numbers
22383, 22383 170 0 5, 22384, 22385, 9180D1953
OE numbers
Audi: 8W0698151AA, 8W0698151AB, 8W0698151AF, 8W0698151AG, 8W0698151BG, 8W0698151BH, 8W0698151J,
8W0698151K, 8W0698151Q
Audi (FAW): L8WD698151, L8WD698151A, 8WD698151
SEAT: 8W0698151AG, 8W0698151BG, 8W0698151K, 8W0698151Q
Skoda: 8W0698151AG, 8W0698151BG, 8W0698151K, 8W0698151Q
VW: 8W0698151AG, 8W0698151BG, 8W0698151K, 8W0698151Q
TEXTAR - 2238301-TET - Brake Pad Set, disc brake 22.05.2025
Page 1 From
3
Accessory Lists
Part Number Parts Description Quantity
96000100-TET
96000100
Brake/Clutch Cleaner
Formula XT
1
96000200-TET
96000200
Brake/Clutch Cleaner
Formula XT
1
96000400 Brake/Clutch Cleaner
Formula XT
1
81000401-TET
81000401
Mounting Paste
CERA TEC
1
81001401-TET
81001401
Mounting Paste
HYDRA TEC
1
TEXTAR - 2238301-TET - Brake Pad Set, disc brake 22.05.2025
Page 2 From
3

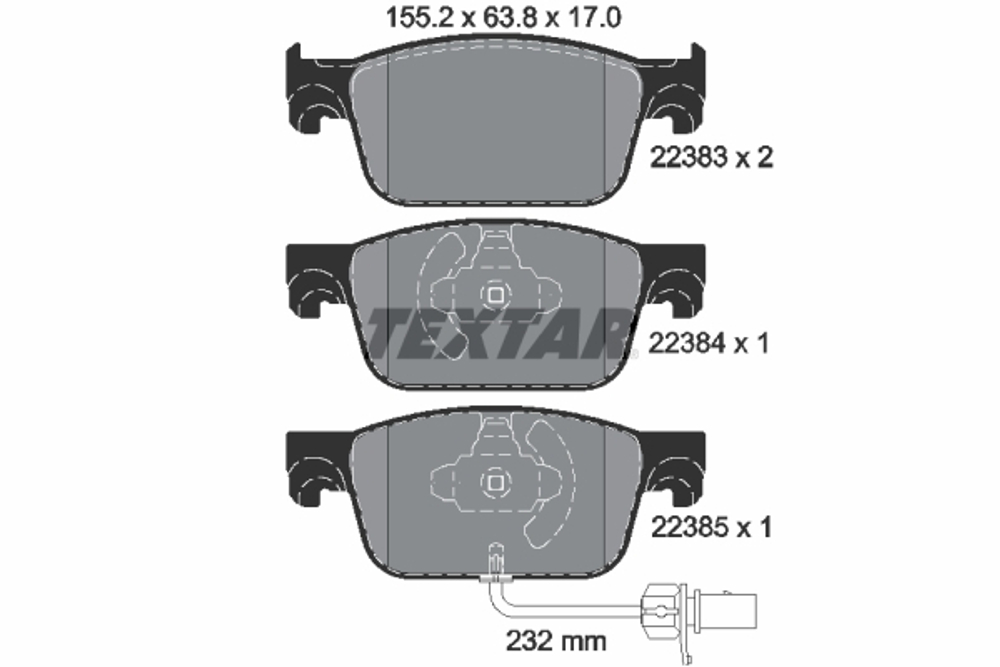

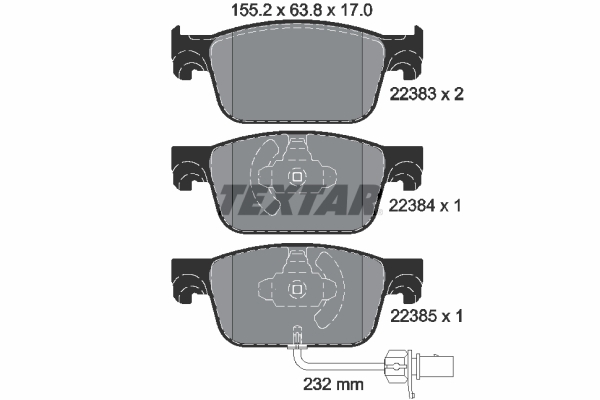

Images
TEXTAR - 2238301-TET - Brake Pad Set, disc brake
