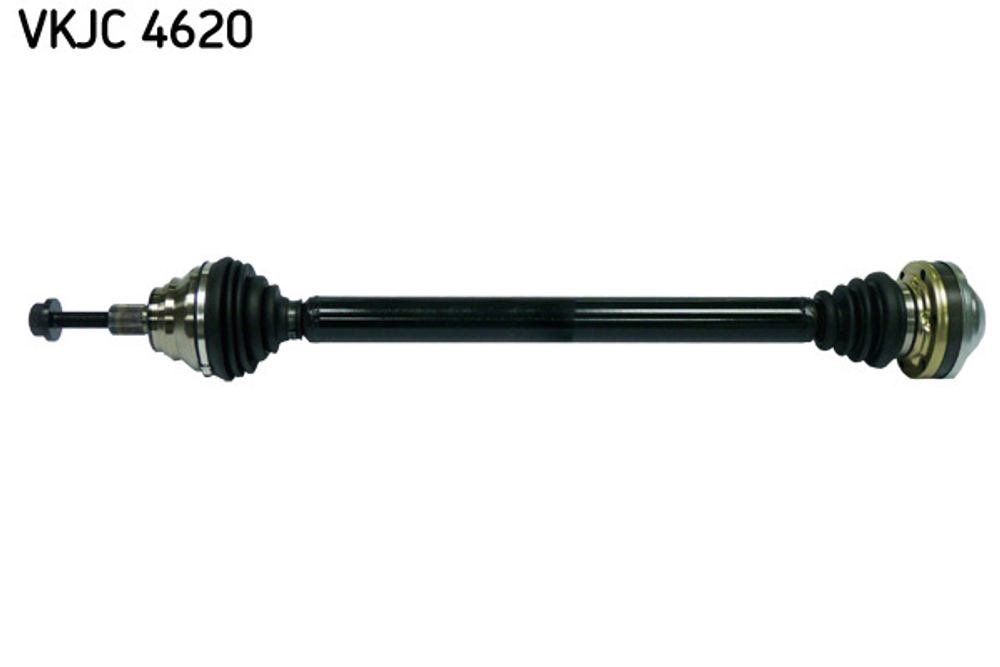

SKF - VKJC4620-SKF - Drive Shaft - Povrat artikla narucenog iz Njemacke nije moguc.

Name: SKF - VKJC4620-SKF - Drive Shaft - Povrat artikla narucenog iz Njemacke nije moguc.
SKU: VKJC 4620
Price: 191.58 EUR
Availability: InStock

(0)

Описание

Documents/Illustrations Technical Drawing: VKJC_4620_SCH Service Information: PI_VJKC_DESIGN_CHANGE_EN_0218 Service Information: PI_VKJA_VKJC__EN_0221 Service Information: PTI_VKJC_462X_DESIGN_EN_0522. Graphic Preview. OE numbers Audi 1K0 407 272 EN 1K0 407 272 NJ 1K0 407 272 RB 1K0 407 272 RE 1K0 407 272 RF 1K0 407 454 DX 1K0 407 762 BX 1K0 407 762 PX 1K0 407 764 DX 1K0 407 764 LX 1K0 407 764 QX 5N0 407 762 F [+] SEAT 1K0 407 272 EN 1K0 407 272 RB 1K0 407 272 RF 1K0 407 764 DX 1K0 407 764 LX 5K0 407 272 C 5K0 407 762 BX 5Q0 407 272 BM 5Q0 407 272 E 5Q0 407 272 F 5Q0 407 762 FX 5Q0 407 762 JX [+] Skoda 1K0 407 272 NJ 1K0 407 272 PM 1K0 407 272 RB 1K0 407 272 TM 1K0 407 762 PX 1K0 407 764 LX 5Q0 407 272 BM 5Q0 407 272 E 5Q0 407 272 F 5Q0 407 762 FX 5Q0 407 762 JX 5Q0 407 762 RX VW JZW 407 272 BX 1K0 407 272 EK 1K0 407 272 EN 1K0 407 272 JB 1K0 407 272 KF 1K0 407 272 NJ 1K0 407 272 PM 1K0 407 272 RB 1K0 407 272 RF 1K0 407 272 RR 1K0 407 272 TP 1K0 407 454 GX [+]

Показать полностью Свернуть

В корзине шт Перейти

Нет в наличии

Купить в 1 клик

Описание

Отзывы

Описание

VKJC4620-SKF Properties vehicle Engine Code BMR CBBB Transmission Type 6-Speed Manual Transmission Fitting Position Front Axle Right Characteristics New Part Wheel-sided joint diameter [mm] 98 mm Transmission-sided joint diameter [mm] 108 mm Length [mm] 795 mm Bore Diameter [mm] 11 mm Thread Size M16x1.5 External Toothing wheel side 36 Sealing Ring Diameter [mm] 60 mm Number of bores 6 Bolt Hole Circle Ã [mm] 94 mm
