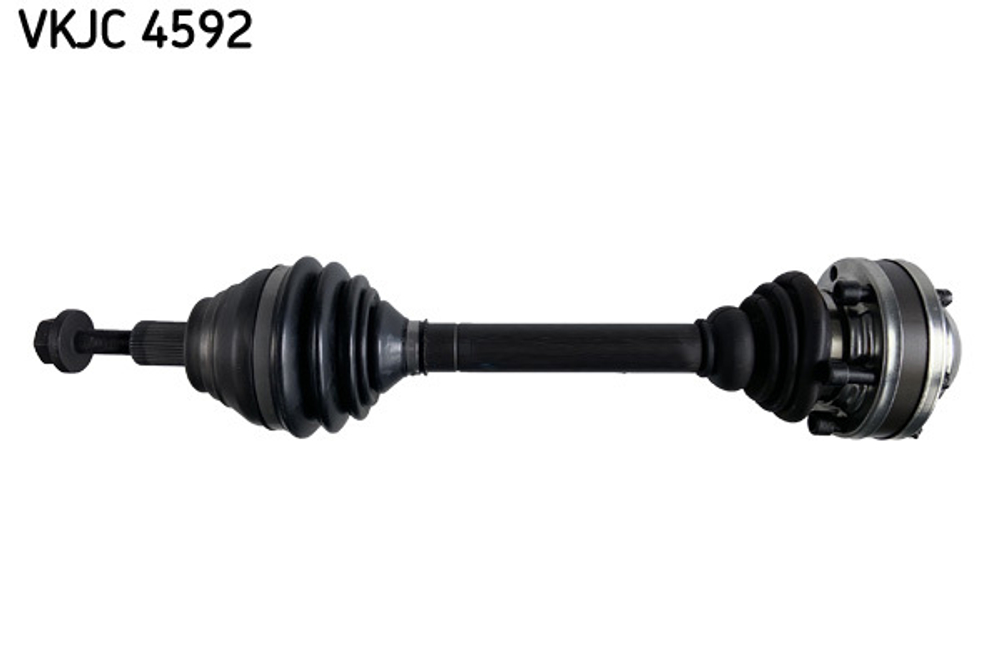

SKF - VKJC4592-SKF - Drive Shaft

Properties vehicle Engine Code BMR CBBB Transmission Type 6-Speed Manual Transmission Fitting Position Front Axle Left. OE numbers Audi 1K0 407 271 BJ 1K0 407 271 EE 1K0 407 271 HM 1K0 407 451 TX 1K0 407 453 BX 1K0 407 761 HX 3C0 407 271 AJ 3C0 407 451 FX 5N0 407 761 F 5N0 407 761 FX 5N0 407 763 D 5N0 407 763 DX [+] SEAT 1K0 407 271 EE 1K0 407 271 NP 1K0 407 451 TX 3C0 407 271 AJ 3C0 407 451 FX 5Q0 407 271 AP 5Q0 407 271 AQ 5Q0 407 271 H 5Q0 407 761 AX 5Q0 407 761 PX 5Q0 407 763 X 7N0 407 763 [+] Skoda 1K0 407 271 EE 1K0 407 271 HM 1K0 407 271 KJ 1K0 407 271 NP 1K0 407 271 NR 1K0 407 451 TX 1K0 407 761 HX 1K0 407 761 TX 3AB 407 271 5Q0 407 271 AQ 5Q0 407 271 H 5Q0 407 761 AX [+] VW JZW 407 271 BX 1K0 407 271 BJ 1K0 407 271 BN 1K0 407 271 EE 1K0 407 271 EF 1K0 407 271 ES 1K0 407 271 HM 1K0 407 271 MC 1K0 407 271 NP 1K0 407 271 NQ 1K0 407 451 DX 1K0 407 451 TX [+]. Documents/Illustrations Technical Drawing: VKJC_4592_SCH Service Information: PI_VJKC_DESIGN_CHANGE_EN_0218 Service Information: PI_VKJA_VKJC__EN_0221. Characteristics New Part Wheel-sided joint diameter [mm] 98 mm Transmission-sided joint diameter [mm] 108 mm Length [mm] 487 mm Bore Diameter [mm] 11 mm Thread Size M16x1.5 External Toothing wheel side 36 Sealing Ring Diameter [mm] 60 mm Number of bores 6 Bolt Hole Circle Ø [mm] 94 mm
