Dealer part number 535011510-INA
Part Number 535 0115 10
Packing unit 1
Quantity per PU 1
Parts state Normal
EAN 4005108344786
Characteristics
for manufacturer number F-554053.XX
Number of ribs 6
Distance to first groove [mm] 16
Width [mm] 40 mm
Diameter 1 / 2 [mm] 61,5/17,0 mm
Supplementary Article/Supplementary Info 2 Requires special tools for mounting
Observe service information
Utility numbers
31754, OAP7032, 70 93 1754, 588009
OE numbers
Alfa Romeo: 994 8513, 994 9129, 9948513, 9949129, 995 1269, 9951269
Cadillac: 12759595
Fiat: 46748353, 46763533, 46763534, 46765838, 46774428, 46774429, 46774430, 46782212, 46782213, 46809068,
46823540, 51859052, 51859053, 60815944, 60816045, 60816557, 60816954, 63321497, 63321804, 63321819,
63321826, 71746673, 71769230, 71769232, 73501591, 73503235, 994 8513, 994 9129, 9948513, 9949129, 995 1269,
9951269
General Motors: 93180098, 93180102, 93180104
Lancia: 994 8513, 994 9129, 9948513, 9949129, 995 1269, 9951269
Opel: 12 04 413, 1204413, 62 04 187, 62 04 188, 62 04 189, 6204187, 6204188, 6204189, 93182514
Saab: 93 180 104, 93 182 514, 93180104, 93182514
Suzuki: 31171-79J00, 3117179J00, 31171-79J00-LCP, 3117179J00LCP, 31171-79J00-000, 3117179J00000, 31400-
79J00-000, 3140079J00000
Vauxhall: 12 04 413, 1204413, 62 04 187, 62 04 188, 62 04 189, 6204187, 6204188, 6204189, 93182514
Accessory Lists
Part Number Parts Description Quantity
400044410-INA
400 0444 10
Mounting Tool Kit, alternator freewheel clutch 1
Schaeffler INA - 535011510-INA - Alternator Freewheel Clutch 18.04.2026
Page 1 From
3
Images

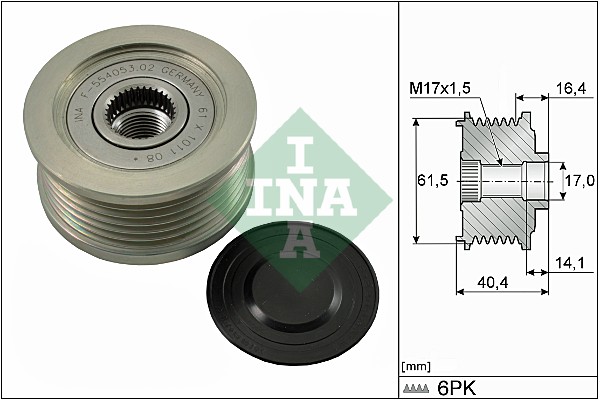

Schaeffler INA - 535011510-INA - Alternator Freewheel Clutch
