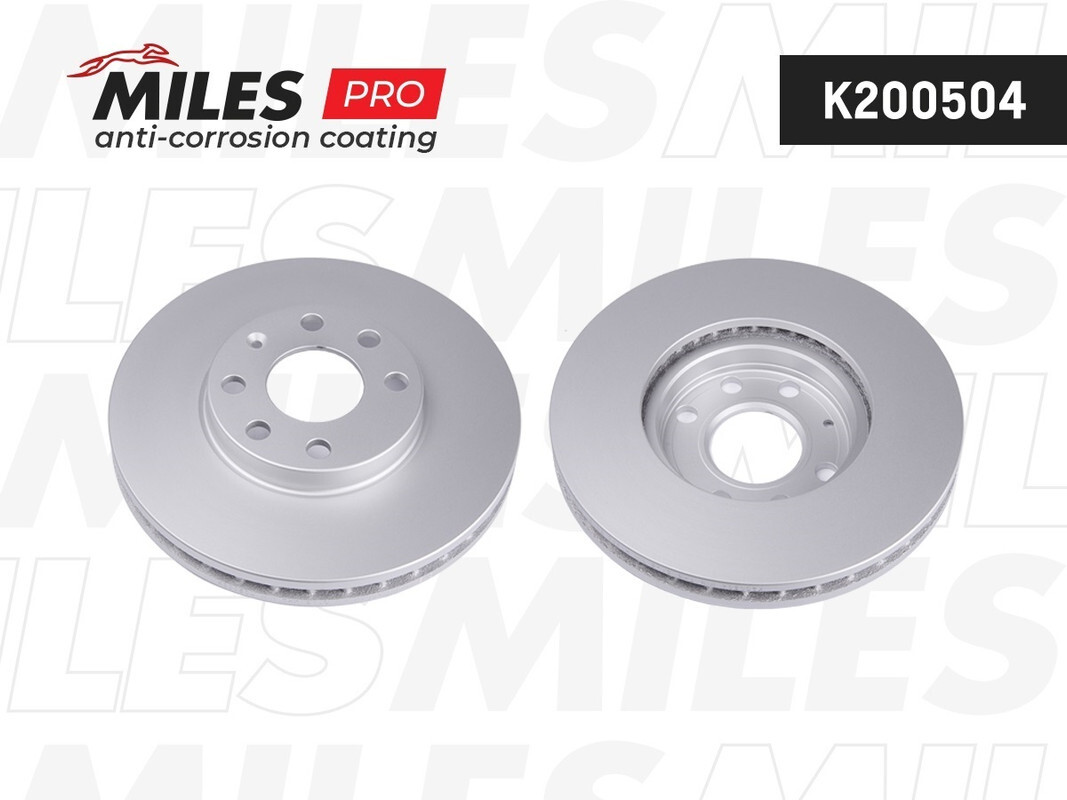

MILES - K200504-MLS - Brake Disc

Utility numbers 1110176 1263105100 17210 355106041 355106051 355127371 5293369P 657210 78RBD27879 815252513V 8DD355106041 8DD355106051 8DD355127371 90497879 9117677 95526647 ADC1105V ADZ94321 B130217 BBD4073 BDC4813 BDS1261 DBA817 DBA817S DBA817X DF4042 DI0402 DI0402C DI955827 DP1010110753 FO2322 H3172003 K000504 MDC1049 MDC1049C MDK0088 P330045. Characteristics Fitting Position Front Axle Number of Holes 4 Brake Disc Type Vented Diameter [mm] 256 mm Height [mm] 41 mm Centering Diameter [mm] 60 mm Bolt Hole Circle Ø [mm] 100 mm Wheel Bolt Bore Diameter [mm] 14 mm Brake Disc Thickness [mm] 24 mm Minimum thickness [mm] 21 mm Surface Coated. OE numbers General Motors 05 69 059 90497879 9117677. Graphic
