MAHLE - OC47OF-MAH - Oil Filter

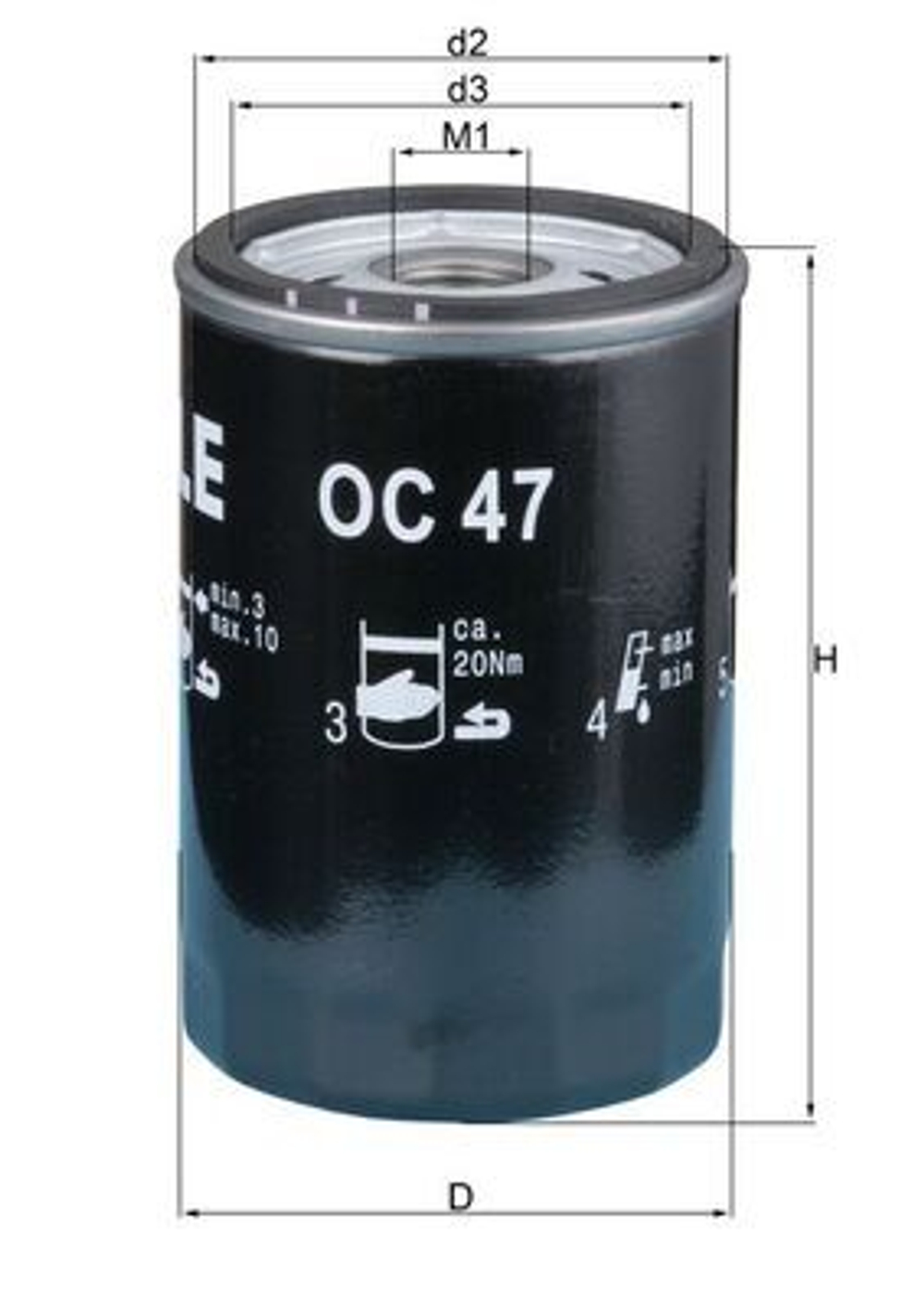

Characteristics Filter type Spin-on Filter Diameter [mm] 76 mm Height [mm] 120 mm Thread Size 3/4"-16UNF-2B Diameter 2 [mm] 71 mm Seal Ring Diameter [mm] 62 mm Tightening Torque [Nm] 20 Nm Article number of the recommended special tool OCS 1 Supplementary Article/Supplementary Info 2 with two anti-return valves Valve Type Overflow Valve Packaging height [cm] 12,00 cm Packaging width [cm] 15,60 cm Net Weight [g] 360 Packaging length [cm] 39,5 cm. OE numbers Audi BAT115561A E5120700509 SE021030288A 0028115351 0261155613 035115561 035115561G 037115561A 037115561B 056115561A 056115561B 056115561G [+] BMW 11421264508 11421266773 11421287836 11421707779 11421761087 11429061198 1264508 1266773 1707779 1761087 9061198 CATERPILLAR 9Y4510 Chrysler J3250334 3232126 8127168 Citroën 5417584 CRANECARRIER COMPANY 941172 CUPRA BAT115561A E5120700509 SE021030288A 0028115351 0261155613 035115561 035115561G 037115561A 037115561B 056115561A 056115561B 056115561G [+] FODEN TRUCKS 0482551026 Ford A700X6714CA A700X6714KA A720X6714LA A770X6714HA A780X6714GA A800X6714FA A800X6714KA A840X6714EA A840X6714RA EFL284 EFL48 1498016 [+] General Motors 93892090 9975233 GMC 7984778 93892090 9975233 GUELDNER 0009830625 HANOMAG HENSCHEL 860114932124 Isuzu 700032431 8944637151 KUBOTA 1542632430 7000032431 Peugeot 5417584 Porsche 93110770100 VM 4115064 VW BAT115561A E5120700509 SE021030288A 0028115351 0261155613 035115561 035115561G 037115561A 037115561B 056115561A 056115561B 056115561G [+]. Documents/Illustrations Service Information: 282C0160F06C1D84DE8E5FD01E51C0E8CD9DA357722881A42A29B4B9B2E1F5BE Service Information: 279AC05DBCB4B1A69F490451BB0A17FC27922159A321D911ADF1DE1F70AF1679 Service Information: F7871519661712CB58B7F5FE59A17B960190C68A9000F77C50EE1299B6E9AB57 Service Information: 78809CDE61B2D7E695F8D6807F66286FC11B4084070A5E86EE842F72D536EE62 Service Information: 716441FE7A77FCF44F7758CC904372B76A742823BEF72493A182BDA8E20CDA83 Service Information: B1B4038D144ABE143A888CF2F72A01209EC14F1615B24C495D6ADDFA68031A32
