Dealer part number CR1096000S-MAH
Part Number CR 1096 000S
Parts Description BEHR
Packing unit 1
Quantity per PU 1
Parts state Normal
EAN 4057635092937
Vehicle SEAT Ibiza 4 (6J5, 6P1) 1.2 TDI
Constr.year 06.10 - 05.15
Power 55kW / 75HP
Capacity 1199
Engine Code CFWA
KBA Keynumber 7593 AEZ
Properties vehicle
Climate Zones for hot climate zones
New Part
Characteristics
Radiator type Mechanically jointed cooling fins
Core Length [mm] 649 mm
Core Width [mm] 322 mm
Core Depth [mm] 34 mm
Water Tank Material (radiator) Plastic
Supplementary Article/Supplementary Info 2 with screw
Vehicle Equipment for vehicles with air conditioning
Transmission Type Manual Transmission
Packaging height [cm] 10,50 cm
Net Weight [g] 2375
Packaging width [cm] 44,00 cm
Packaging length [cm] 87,5 cm
Utility numbers
8MK 376 754-284, 376754284, 70823429, CR 1096 000P
OE numbers
Audi: 6R0121253, 6R0121253N
CUPRA: 6R0121253
SEAT: 6R0121253, 6R0121253N
Skoda: 6R0121253, 6R0121253N
VW: 6R0121253, 6R0121253N
MAHLE - CR1096000S-MAH - Radiator, engine cooling 08.01.2026
Page 1 From
9
Additional information
General Information
SIMPLE FIT - Installation accessories, such as O-rings,
seals, screws, nuts, bolts, and hose clips,
are included with the product.
The core dimensions / product measurements of the different
manufacturers /vendors might be different due to various
production technologies. These dimensions / product
measurements are not an indication for the performance or
the correct fitting accuracy of the product itself.
MAHLE - CR1096000S-MAH - Radiator, engine cooling 08.01.2026
Page 2 From
9
Images

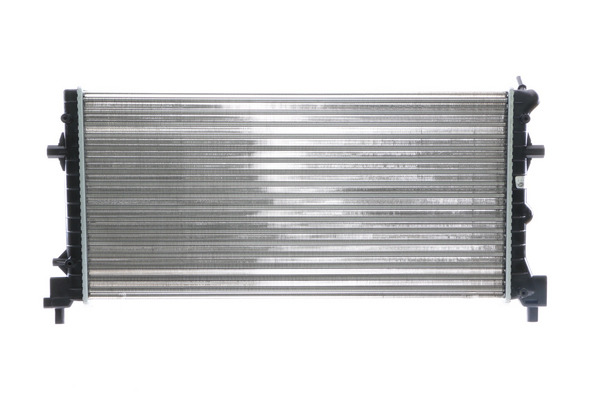

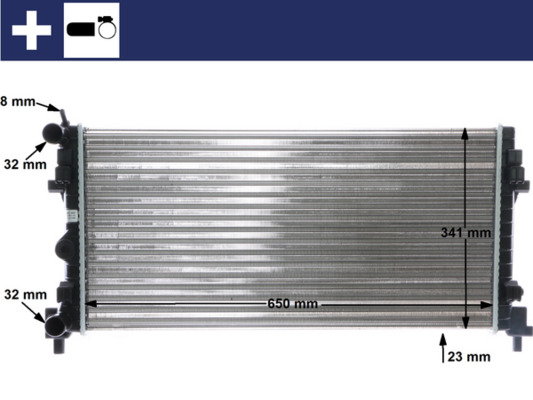

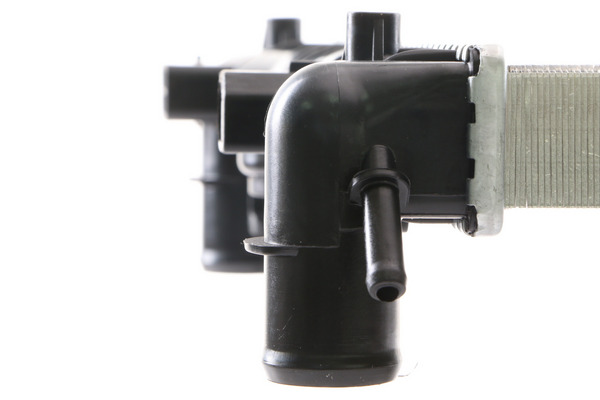

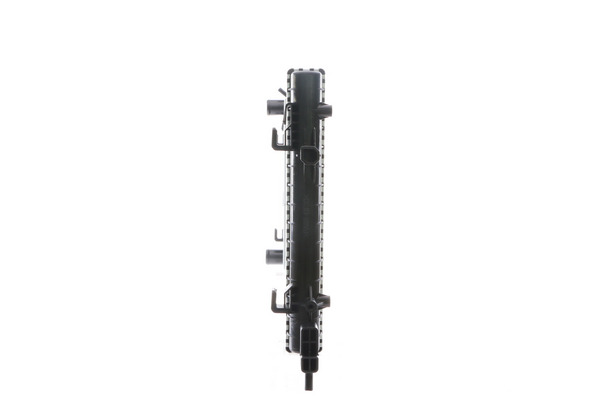

MAHLE - CR1096000S-MAH - Radiator, engine cooling
