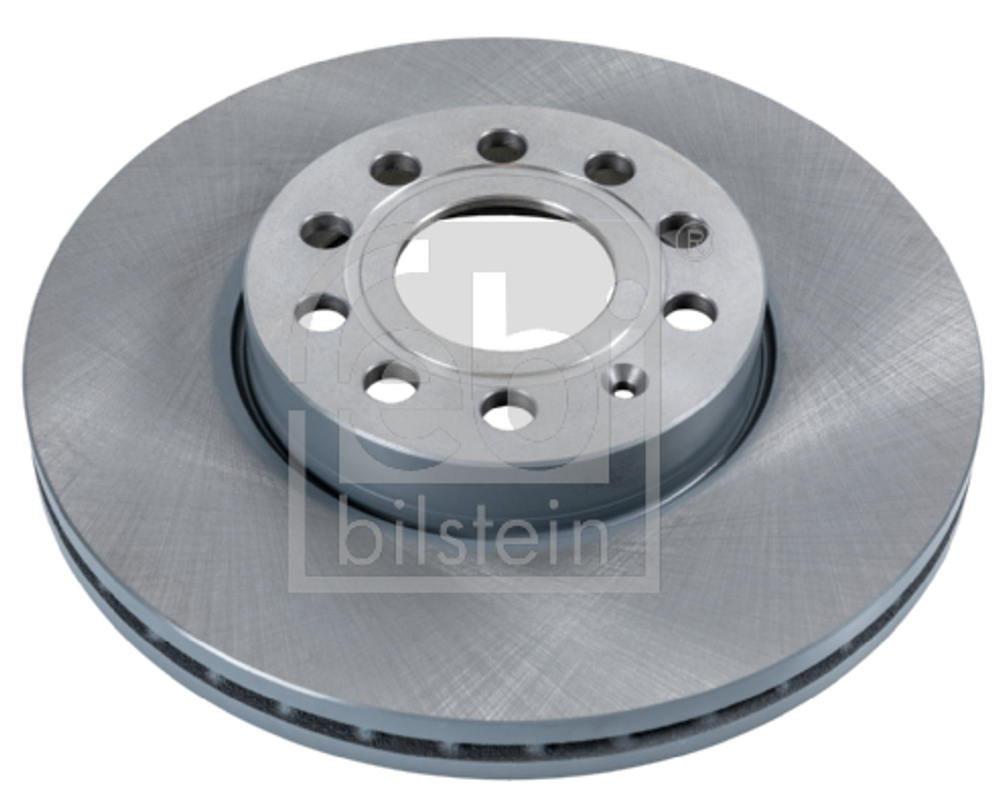

FEBI BILSTEIN - 22902-FEB - Brake Disc

Documents/Illustrations Service Information: FTEC130_GB Service Information: FTEQUIETBRAKING_GB Service Information: PROTIPSBRAKEDISC_GB Service Information: PROTIPSPR_GB Service Information: gDALfhEiveE Service Information: mmrjSH-rUFg Service Information: skSUujdvpOo Service Information: T1GuKSxZUBI Service Information: XxsLE8ugrfI. OE numbers Audi JZW 615 301 J 1K0 615 301 K 1K0 615 301 T 5C0 615 301 A 5Q0 615 301 H Ford 2 631 430 SEAT JZW 615 301 J 1K0 615 301 K 1K0 615 301 T 5Q0 615 301 H Skoda JZW 615 301 J 1K0 615 301 K 1K0 615 301 T 5Q0 615 301 H VW JZW 615 301 J 1K0 615 301 K 1K0 615 301 T 5C0 615 301 A 5C0 615 301 D 5Q0 615 301 H. Characteristics Brake Disc Thickness [mm] 25 mm Rim Hole Number 5 -Hole Number of mounting bores 1 Thickness [mm] 50 mm Diameter [mm] 288 mm Bolt Hole Circle Ø [mm] 112 mm Surface Coated Brake Disc Type Vented Fitting Position Front Axle Minimum thickness [mm] 22 mm Centering Diameter [mm] 65 mm Weight [kg] 7,56 kg Observe service information
