Dealer part number 15374-FEB
Part Number 15374
Packing unit 20
Quantity per PU -
Parts state Normal
EAN 4027816153740
Vehicle VW Polo 5 (6R1, 6C1) 1.2 TSI
Constr.year 11.09 - 05.22
Power 77kW / 105HP
Capacity 1197
Engine Code CBZB
KBA Keynumber 0603 ARA , 0603 AXM
Characteristics
Length [mm] 30 mm
External Thread Size M14 x 1,5
Thread Length [mm] 18 mm
Spanner Size 19
Bolt Head-/Nut Design Male Hex
Material Steel
Surface Zinc-coated
Screw length below head [mm] 22 mm
Weight [kg] 0,04 kg
Supplementary Article/Info 2 with seal ring
Observe service information
Utility numbers
51791, 10N908013201, SA010813, 220125S, 567.640, 588.670.001, 15374, 1113800100, 32 91 5374,
109 035
OE numbers
Audi: N 908 132 01, N 908 132 02, N 908 132 03
Chrysler: 68004313AA
CUPRA: N 908 132 02
Dodge: 68004313AA
Ford: 1 459 212, 2 579 863
Jeep: 68004313AA
MITSUBISHI: MN980017, MN980254
SEAT: N 908 132 01, N 908 132 02, N 908 132 03
Skoda: N 908 132 01, N 908 132 02, N 908 132 03
VW: N 908 132 01, N 908 132 02, N 908 132 03, N 911 014 01
FEBI BILSTEIN - 15374-FEB - Screw Plug, oil sump 24.02.2025
Page 1 From
3
Accessory Lists
Part Number Parts Description Quantity
174815-FEB
174815
Binding Agent 1
174816-FEB
174816
Binding Agent 1
174817-FEB
174817
Binding Agent 1
177587 Oil sump
febi Plus
1
Additional information
General Information
These products are designed to be used as originally
intended and not modified for purpose. Please ensure the
products are installed by a competent individual. N.B.
products are usually supplied without fitting instructions.
FEBI BILSTEIN - 15374-FEB - Screw Plug, oil sump 24.02.2025
Page 2 From
3

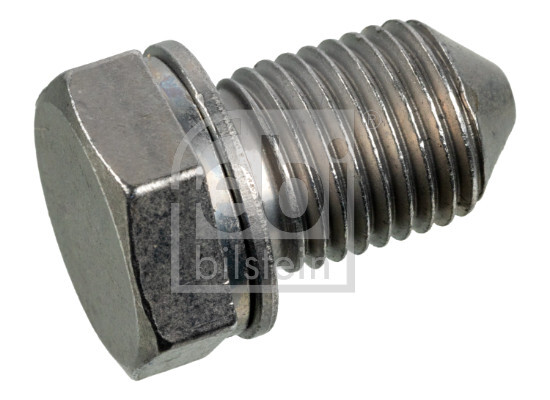

Images
FEBI BILSTEIN - 15374-FEB - Screw Plug, oil sump
