Dealer part number 12281-FEB
Part Number 12281
Packing unit 1
Quantity per PU -
Parts state Normal
EAN 4027816122814
Characteristics
Length [mm] 24 mm
Inner Diameter [mm] 14 mm
Outer Diameter [mm] 20 mm
External Thread Size M14 x 1,5
Quality/ Grade 5.8
Spanner Size 19
Bolt Head-/Nut Design Male Hex
Material Steel
Surface Phosphatized
Screw length below head [mm] 16 mm
Weight [kg] 0,033 kg
Supplementary Article/Info 2 with seal ring
Observe service information
Utility numbers
83011, 51935, 10N902088901, SA010811, 03272, 12281, 32 91 2281, 99 90 3272, 104 528
OE numbers
Audi: N 013 849 2, N 902 889 01, N 902 889 01 S1
SEAT: N 013 849 2, N 902 889 01, N 902 889 01 S1
Skoda: N 013 849 2, N 902 889 01, N 902 889 01 S1
VW: N 013 849 2, N 902 889 01, N 902 889 01 S1
Parts list
Part Number Parts Description Quantity
03272-FEB
FEBI BILSTEIN
03272
Screw Plug, oil sump
Length: 24, Spanner size: 19, Bolt Head-/Nut Design: Male Hex, Material: Steel,
Supplementary Article/Info 2: without seal ring
1
07215-FEB
FEBI BILSTEIN
07215
Seal Ring, oil drain plug
Thickness: 1,5, Inner Diameter: 14, Outer Diameter: 20, Material: Copper
1
FEBI BILSTEIN - 12281-FEB - Screw Plug, oil sump 20.02.2025
Page 1 From
3
Accessory Lists
Part Number Parts Description Quantity
174815-FEB
174815
Binding Agent 1
174816-FEB
174816
Binding Agent 1
174817-FEB
174817
Binding Agent 1
Additional information
General Information
These products are designed to be used as originally
intended and not modified for purpose. Please ensure the
products are installed by a competent individual. N.B.
products are usually supplied without fitting instructions.
FEBI BILSTEIN - 12281-FEB - Screw Plug, oil sump 20.02.2025
Page 2 From
3
Images

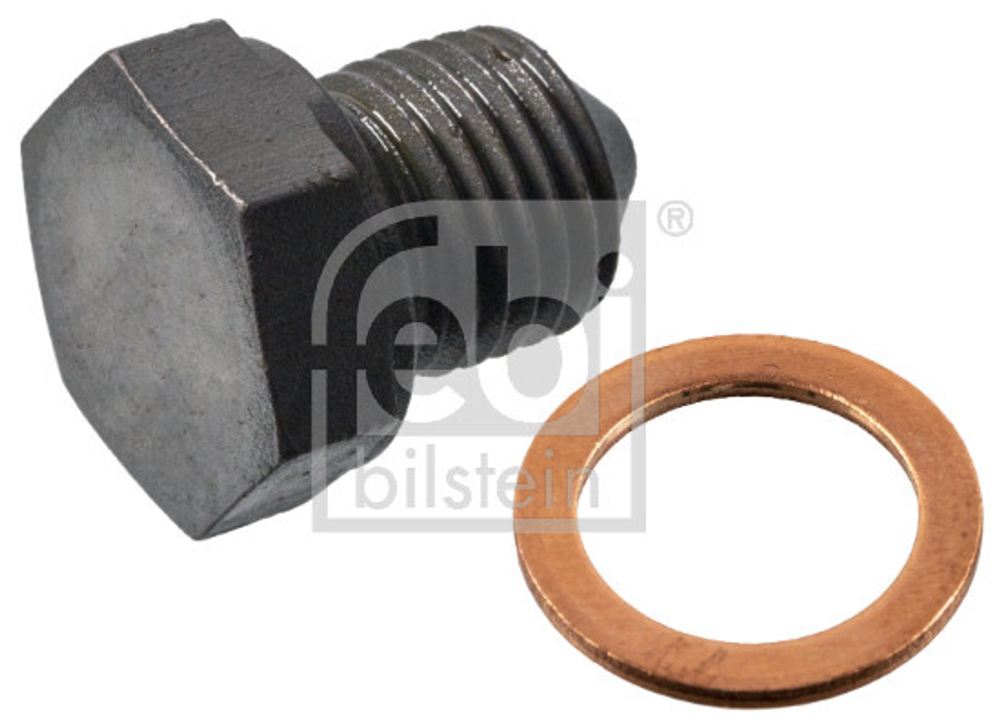

FEBI BILSTEIN - 12281-FEB - Screw Plug, oil sump
