Dealer part number CT1051WP1-COT
Part Number CT1051WP1
Packing unit 1
Quantity per PU 1
Parts state Normal
EAN 4010858766115
Vehicle Audi A4 B7 Avant (8ED) 2.0 TDI 16V
Constr.year 11.04 - 06.08
Power 103kW / 140HP
Capacity 1968
Engine Code BLB, BRE
KBA Keynumber 0588 862 , 0588 ACV
Properties vehicle

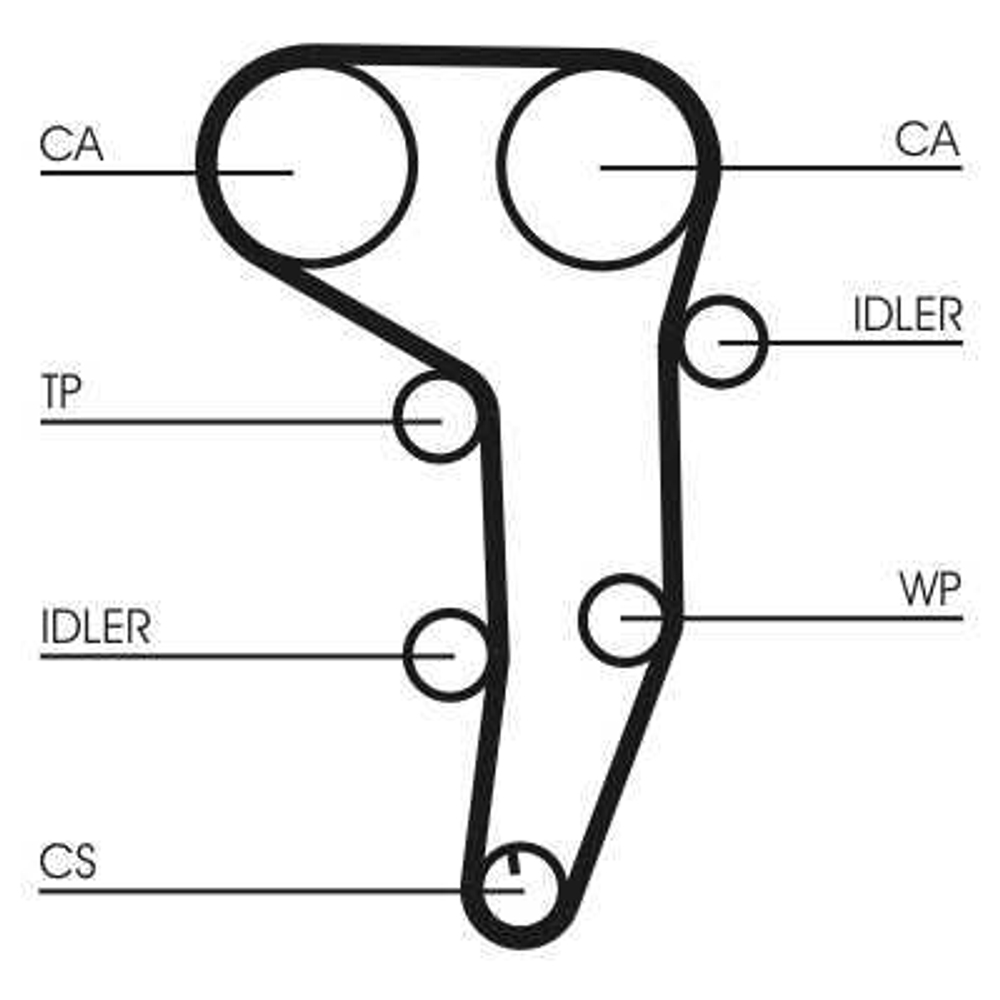

Driven Units Camshaft
Engine Code BRE
BLB
Characteristics
Packaging length [cm] 19,5 cm
Packaging width [cm] 18,2 cm
Packaging height [cm] 18,7 cm
Number of Teeth 141
Weight [kg] 2,788 kg
Width [mm] 30 mm
Units/Pulleys incl. deflection pulley
Inner Diameter [mm] 10 mm
Utility numbers
CT 1051, CT 1051 K1, CT 1051 WP1, 530040530, VKMC01255-1, KDP457.500

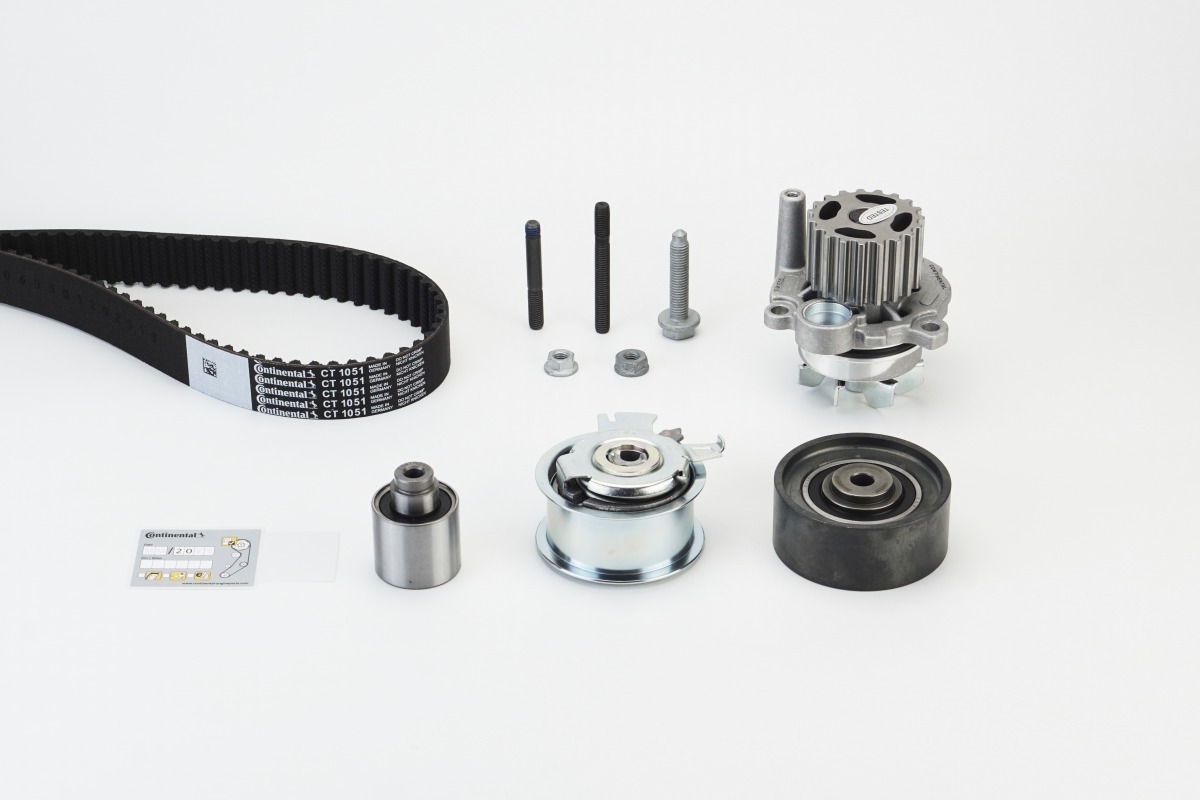

Parts list
Part Number Parts Description Quantity
CT1051-COT
CONTINENTAL CTAM
CT1051
Timing Belt
Number of Teeth: 141, Width: 30
1
WP6006 Water Pump, engine cooling
Supplementary Article/Supplementary Info: with gasket/seal
1
V55766 Tensioner Pulley, timing belt
Width: 36, Outer Diameter: 68
1
V55735 Deflection Pulley/Guide Pulley, timing belt
Width: 36, Outer Diameter: 40
1
V55767 Deflection Pulley/Guide Pulley, timing belt
Width: 34, Outer Diameter: 80
1
V41091 Screw 1
V31183 Nut 1
CONTINENTAL CTAM - CT1051WP1-COT - Water Pump &
Timing Belt Set 16.06.2025
Page 1 From
4
Parts list
Part Number Parts Description Quantity
V31211 Nut 1
V41151 Screw 1
V41216 Screw 1
Additional information
Technical Information
Please note: Technical Info in the attachment
Appropriate crankshaft bolt(s) available separately. See
section belt pulley crankshaft (bolt set)
CONTINENTAL CTAM - CT1051WP1-COT - Water Pump &
Timing Belt Set 16.06.2025
Page 2 From
4
Images
CONTINENTAL CTAM - CT1051WP1-COT - Water Pump &
Timing Belt Set
