Dealer part number CT1051K1-COT
Part Number CT1051K1
Packing unit 1
Quantity per PU 1
Parts state Normal
EAN 4010858797690
Vehicle Audi A4 B7 Avant (8ED) 2.0 TDI 16V
Constr.year 11.04 - 06.08
Power 103kW / 140HP
Capacity 1968
Engine Code BLB, BRE
KBA Keynumber 0588 862 , 0588 ACV
Properties vehicle
Driven Units Camshaft
Engine Code BRE
BLB
Characteristics
Packaging length [cm] 26,5 cm
Packaging width [cm] 16,5 cm
Packaging height [cm] 9,5 cm
Weight [kg] 2,8 kg
Number of Teeth 141
Width [mm] 30 mm
Units/Pulleys incl. deflection pulley
Inner Diameter [mm] 10 mm
Utility numbers
CT1051, CT1051 K1, 530040510, VKMA01255, KD457.50
OE numbers
Audi: 03G198119, 03G198119B, 03G198119D
SEAT: 03G198119, 03G198119B, 03G198119D
Skoda: 03G198119, 03G198119B, 03G198119D
VW: 03G 198 119, 03G 198 119 B, 03G198119D

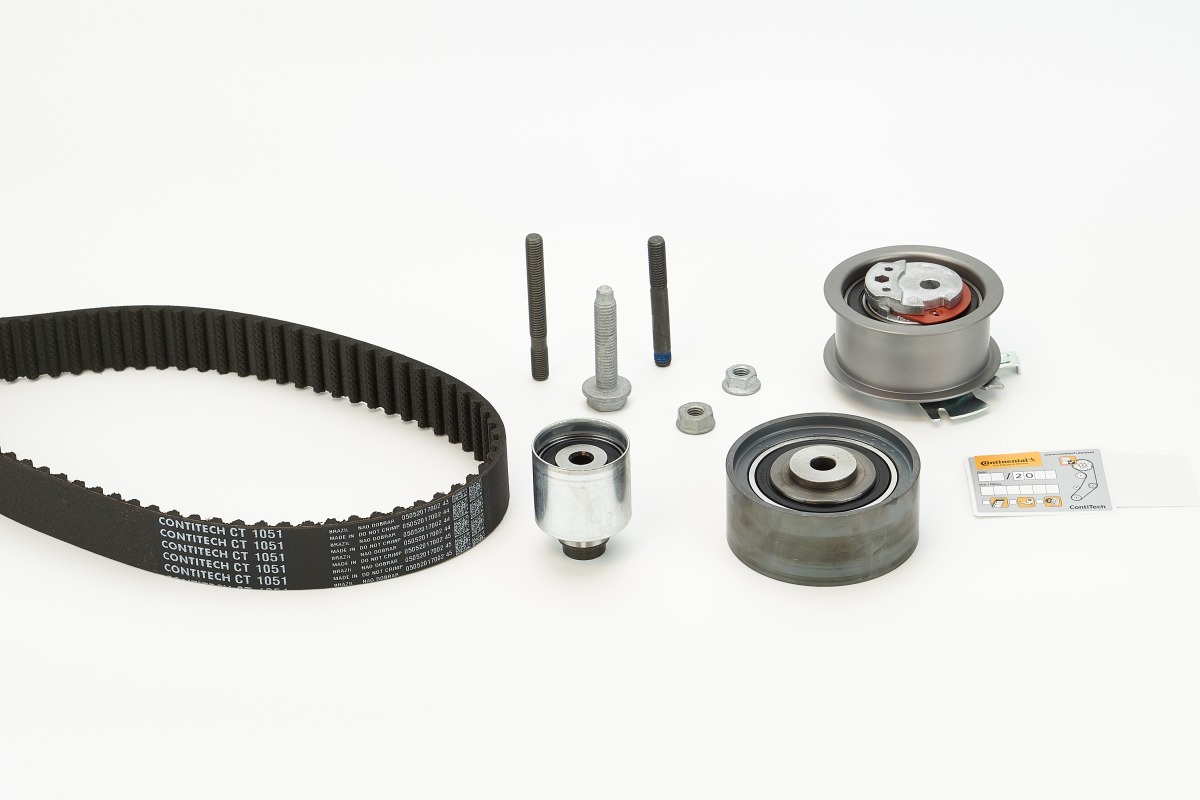

Parts list
Part Number Parts Description Quantity
CT1051-COT
CONTINENTAL CTAM
CT1051
Timing Belt
Number of Teeth: 141, Width: 30
1
V55766 Tensioner Pulley, timing belt
Width: 36, Outer Diameter: 68
1
CONTINENTAL CTAM - CT1051K1-COT - Timing Belt Set 16.06.2025
Page 1 From
4
Parts list
Part Number Parts Description Quantity
V55735 Deflection Pulley/Guide Pulley, timing belt
Width: 36, Outer Diameter: 40
1
V55767 Deflection Pulley/Guide Pulley, timing belt
Width: 34, Outer Diameter: 80
1
V31183 Nut 1
V31211 Nut 1
V41091 Screw 1
V41151 Screw 1
V41216 Screw 1
Additional information
Technical Information
Please note: Technical Info in the attachment
Appropriate crankshaft bolt(s) available separately. See
section belt pulley crankshaft (bolt set)
CONTINENTAL CTAM - CT1051K1-COT - Timing Belt Set 16.06.2025
Page 2 From
4

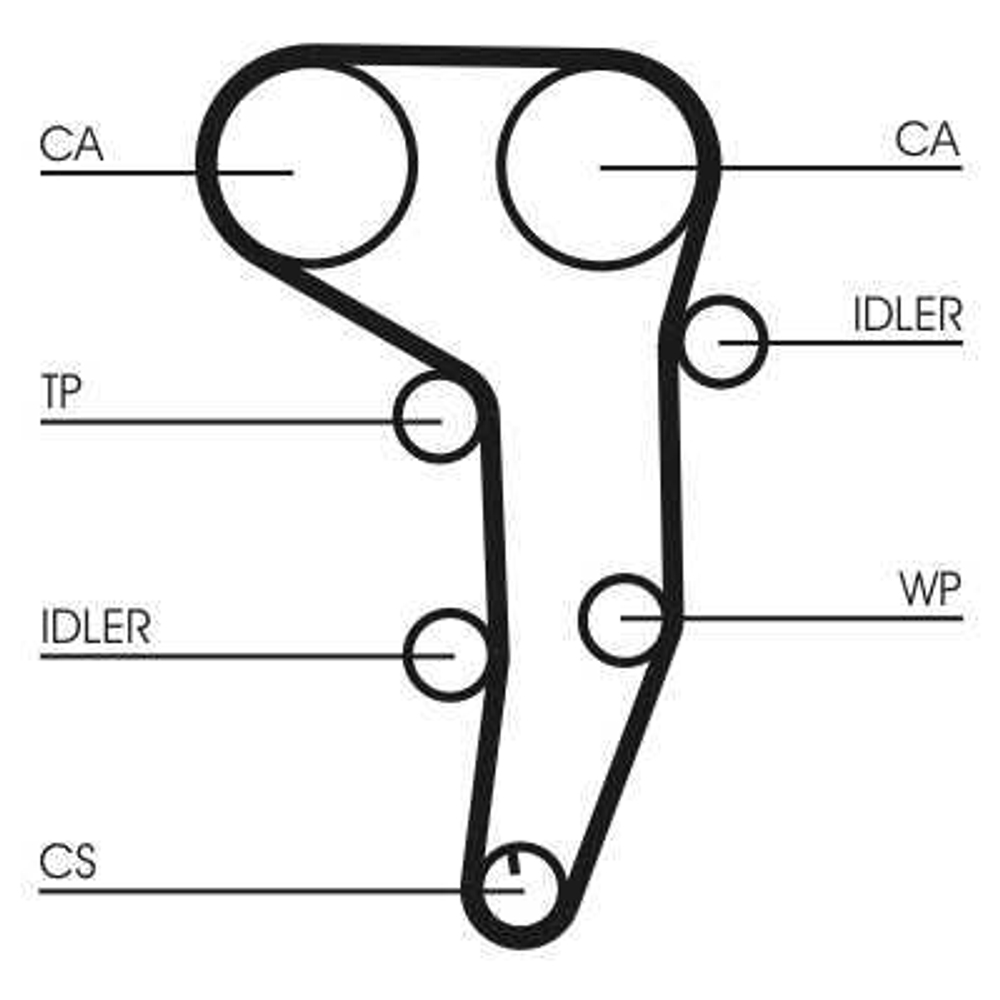

Images
CONTINENTAL CTAM - CT1051K1-COT - Timing Belt Set
