Dealer part number ADC1417V-CML
Part Number ADC1417V
Parts Description Comline
Packing unit 1
Quantity per PU 1
Parts state Normal
EAN 5055181530780
Characteristics
Height [mm] 46 mm
Brake Disc Type Vented
Brake Disc Thickness [mm] 25 mm
Minimum thickness [mm] 23 mm
Diameter [mm] 288 mm
Number of Holes 5
Centering Diameter [mm] 68 mm
Bolt Hole Circle Ø [mm] 112 mm
Surface Coated
OE numbers
Audi: JZW 615 301F, 4A0 615 301C, 4A0 615 301D, 4A0 615 301E, 4B0 615 301B, 8E0 615 301Q
SEAT: JZW 615 301F, 4A0 615 301C, 4A0 615 301D, 4A0 615 301E, 4B0 615 301 B, 8E0 615 301Q
Skoda: JZW 615 301F, 4A0 615 301C, 4A0 615 301D, 4A0 615 301E, 4B0 615 301B, 8E0 615 301Q
VW: JZW 615 301F, 4A0 615 301C, 4A0 615 301D, 4A0 615 301E, 4B0 615 301 B, 8E0 615 301Q, 92057605
COMLINE - ADC1417V-CML - Brake Disc 26.02.2025
Page 1 From
2
Images

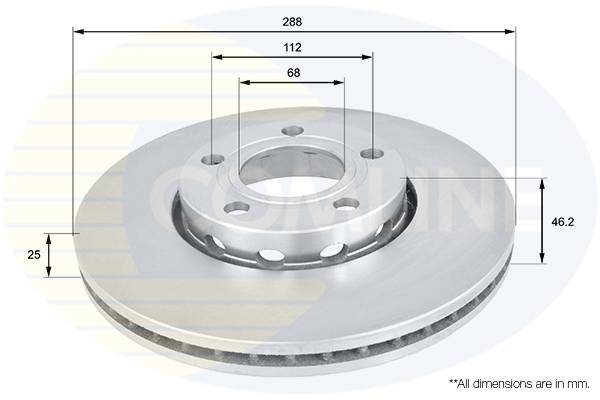

COMLINE - ADC1417V-CML - Brake Disc
