Dealer part number 0986494050-BOC
Part Number 0 986 494 050
Packing unit 1
Quantity per PU -
Parts state Normal
EAN 4047024044104
Characteristics
Wear Warning Contact with integrated wear sensor
Supplementary Article/Info 2 with piston clip
with anti-squeak plate
Article number of recommended accessories 1987474175
1987474658
1987474408
1987474373
Observe technical data
Material Low-Metallic
Test Mark ECE-R90
WVA Number 23018
Thickness [mm] 20 mm
Width [mm] 156 mm
Height [mm] 74 mm
Brake System ATE
Utility numbers
23018, BP419, E9 90R - 02A1425/1629, 13.0460-7110.2, 13.0470-7110.2, 13.0470-7201.2, 571982B,
573337B, 0 986 424 482, FDB1323, FSL1323, BL1617A4, 05P1119, 05P790, BD S088, 30 91 6060,
2193801, GDB1307, GDB1617
Replacement numbers
0 986 424 706
OE numbers
Audi: 4B0 698 151 AB, 4B0 698 151 AF, 4B0 698 151 J, 4B0 698 151 M, 4B0 698 151 N, 4F0 698 151, 8E0 698 151 K
Brilliance: SHZ3501001
SEAT: 4B0 698 151 M, 8E0 698 151 K
Skoda: 4B0 698 151 AB, 4B0 698 151 M, 4B0 698 151 N, 8E0 698 151 J, 8E0 698 151 K
BOSCH - 0986494050-BOC - Brake Pad Set, disc brake 25.02.2025
Page 1 From
5
OE numbers
VW: 4BO 698 151 K, 4B0 698 151, 4B0 698 151 AB, 4B0 698 151 AF, 4B0 698 151 E, 4B0 698 151 J, 4B0 698 151 M, 2193801
4B0 698 151 N, 4F0 698 151, 8E0 698 151 F, 8E0 698 151 J, 8E0 698 151 K
BOSCH - 0986494050-BOC - Brake Pad Set, disc brake 25.02.2025
Page 2 From
5
Images

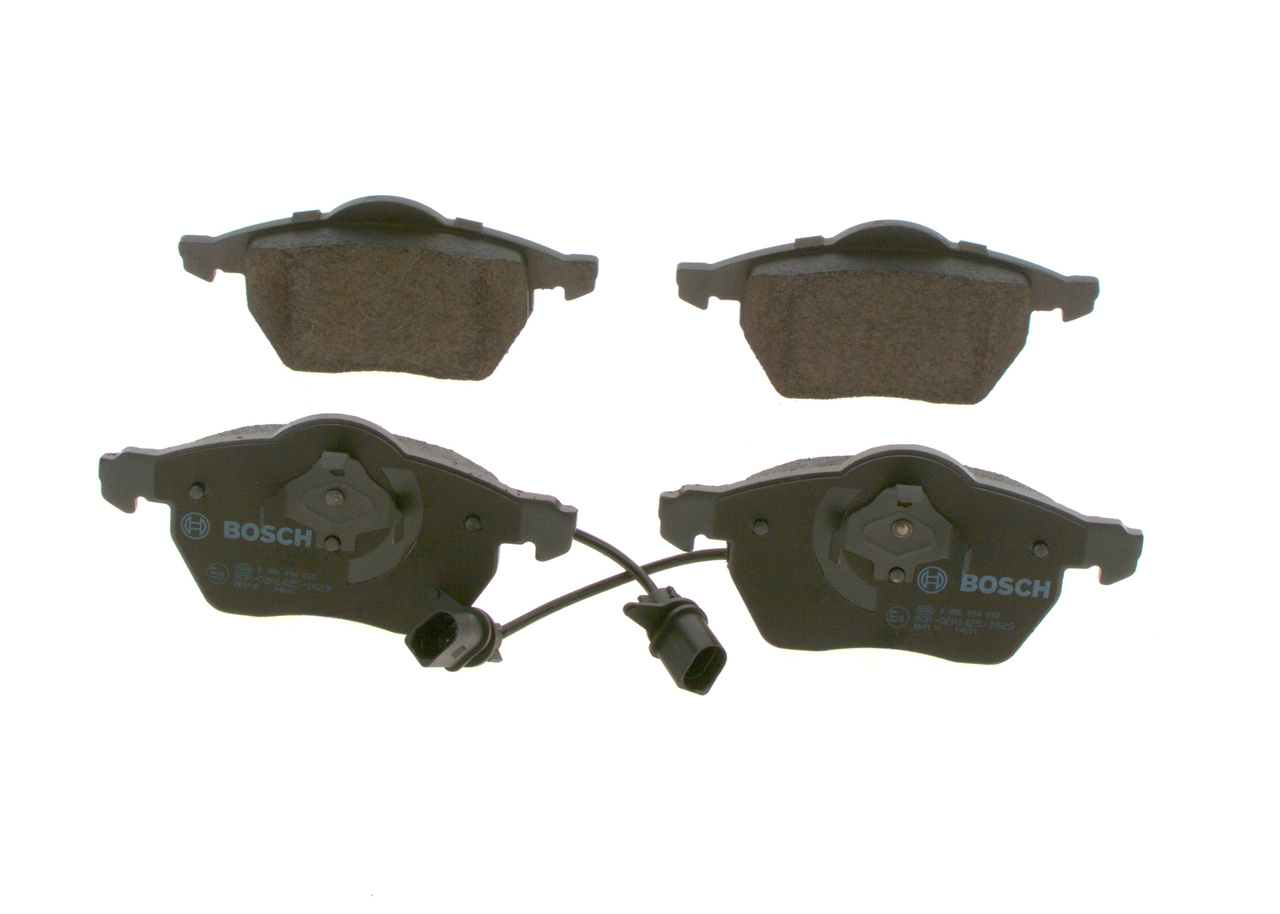

BOSCH - 0986494050-BOC - Brake Pad Set, disc brake
