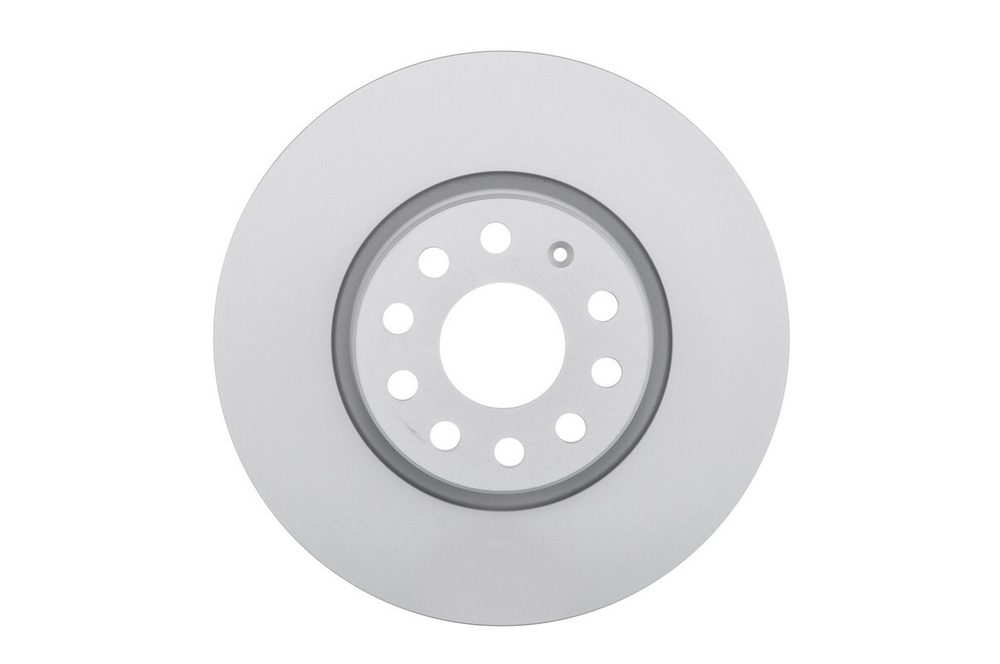

BOSCH - 0986479058-BOC - Brake Disc

Properties vehicle Fitting Position Front Axle for PR number 1LJ 1LH 1ZG 1ZM. OE numbers Audi 1K0 615 301 AA 5C0 615 301 B 5C0 615 301 E 5Q0 615 301 F 561 615 301 561 615 301 B CUPRA 1K0615301AA 5Q0615301F SEAT 1K0 615 301 AA 5Q0 615 301 F 561 615 301 561 615 301 B Skoda 1K0 615 301 AA 5Q0 615 301 F 561 615 301 561 615 301 B VW JZW 615 301 H 1K0 615 301 AA 5C0 615 301 B 5C0 615 301 E 5Q0 615 301 F 561 615 301 561 615 301 B. Documents/Illustrations 360 degree product illustration: index. Characteristics Diameter [mm] 312 mm Brake Disc Thickness [mm] 25 mm Minimum thickness [mm] 22 mm Height [mm] 50 mm Bolt Hole Circle Ø [mm] 112 mm Brake Disc Type Vented Centering Diameter [mm] 65 mm Number of Holes 9 Surface Coated Machining High-carbon Supplementary Article/Info 2 with bolts/screws fulfils ECE norm ECE-R90 Bore Diameter up to [mm] 15 mm
