Dealer part number 0986478546-BOC
Part Number 0 986 478 546
Packing unit 1
Quantity per PU -
Parts state Normal
EAN 4047024199965,404702686
8708
Characteristics
Diameter [mm] 288 mm
Brake Disc Thickness [mm] 25 mm
Minimum thickness [mm] 23 mm
Height [mm] 46 mm
Bolt Hole Circle Ø [mm] 112 mm
Brake Disc Type Vented
Vented
Centering Diameter [mm] 68 mm
Number of Holes 9
Surface Coated
Machining High-carbon
Supplementary Article/Info 2 with bolts/screws
fulfils ECE norm ECE-R90
Bore Diameter up to [mm] 15 mm
Utility numbers
BD468, E1 90 R - 02C0289/0088
OE numbers
Audi: 8E0 615 301 Q
SEAT: 8E0 615 301 Q
Skoda: 8E0 615 301 Q
VW: 4A0 615 301 C, 4A0 615 301 D, 4A0 615 301 E, 8E0 615 301 Q, 92057605
BOSCH - 0986478546-BOC - Brake Disc 26.02.2025
Page 1 From
4

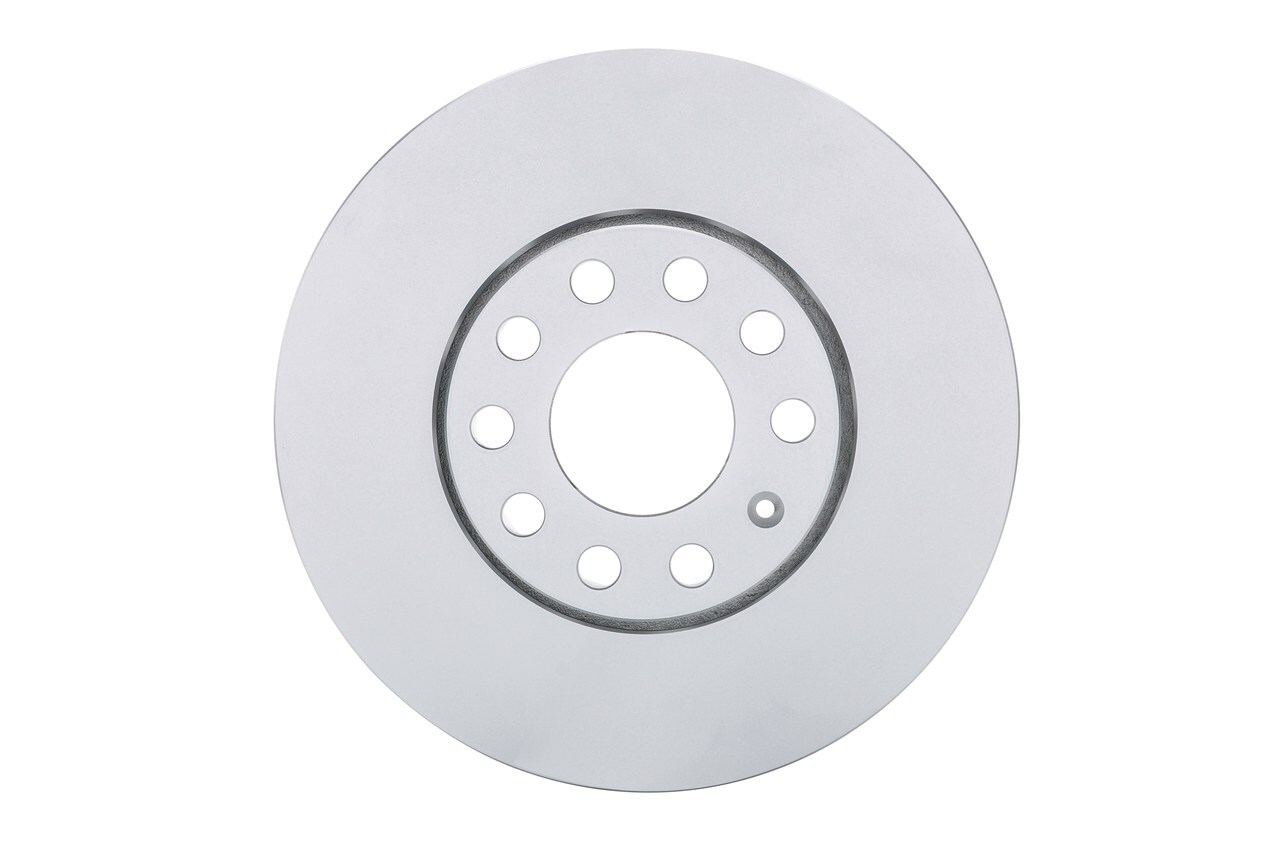

Images
BOSCH - 0986478546-BOC - Brake Disc
