BOSCH - 0986025000-BOC - Starter

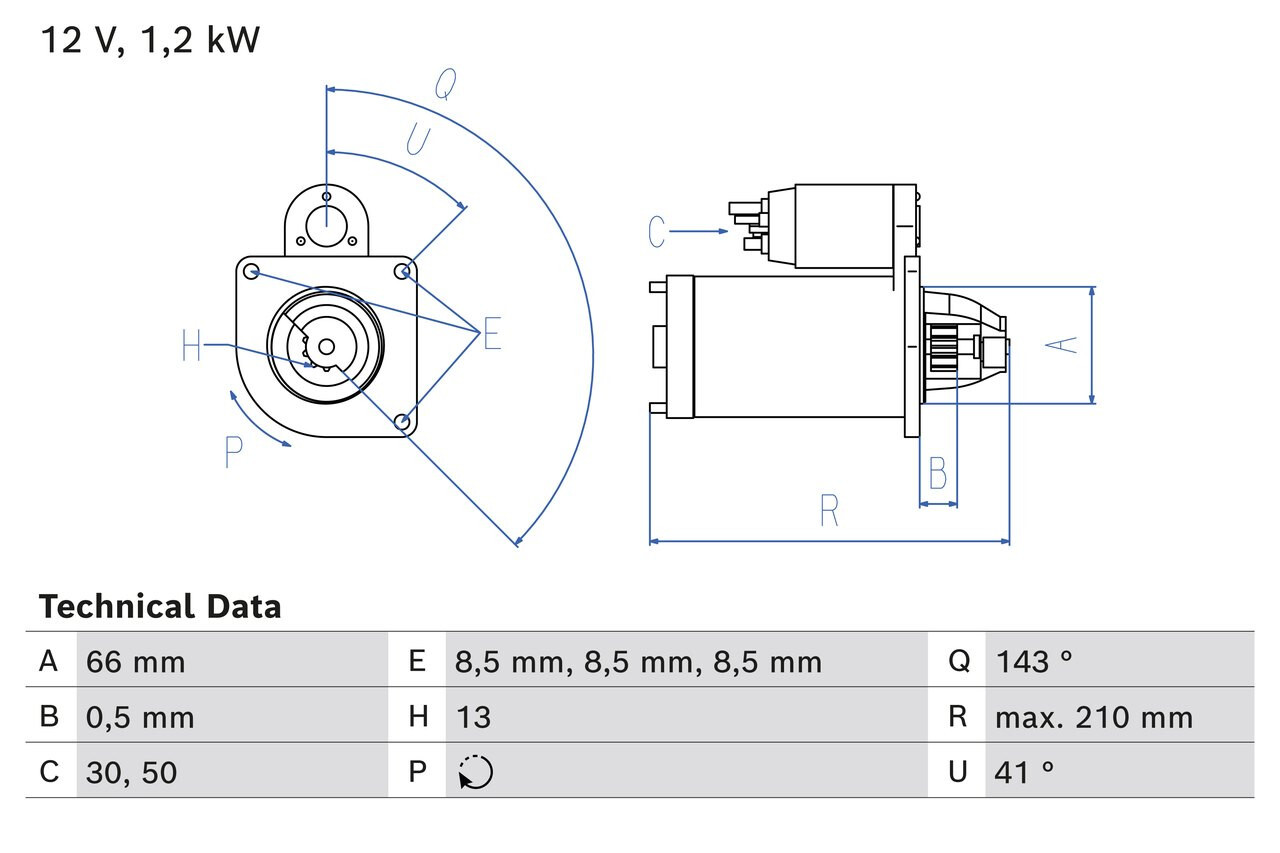

0986025000-BOC Properties vehicle Engine Code B48 A20 B Construction Year from 10.15 Construction Year to 10.17 Transmission Type Manual Transmission Characteristics Exchange Part Voltage [V] 12 V Rated Power [kW] 1,2 kW Number of mounting bores 3 Number of threaded holes 0 Clamp 30,50 Flange Diameter [mm] 66 mm Rotation Direction Clockwise rotation Pinion Rest Position [mm] 0,5 mm Starter Type Self-supporting Bore Diameter [mm] 8,5 mm Bore Diameter 2 [mm] 8,5 mm Bore Ø 3 [mm] 8,5 mm Length [mm] 210 mm Position/Degree rechts ° Mounting Angle [degrees] 41 ° Jaw opening angle measurement [Degree] 143 ° Mounting bore angle measurement [degree] 41 °
