Dealer part number 0332209150-BOC
Part Number 0 332 209 150
Packing unit 1
Quantity per PU -
Parts state Normal
EAN 3165141149661
Characteristics
Current Strength [A] 30 A
Voltage [V] 12 V

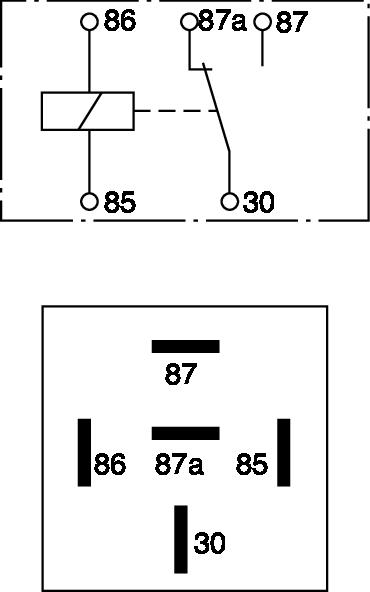

Number of pins 5 terminal
Relay function Normally open contact
Temperature range from [°C] -40 °C
Temperature range to [°C] 100 °C
Resistor [Ohm] 16 Ohm

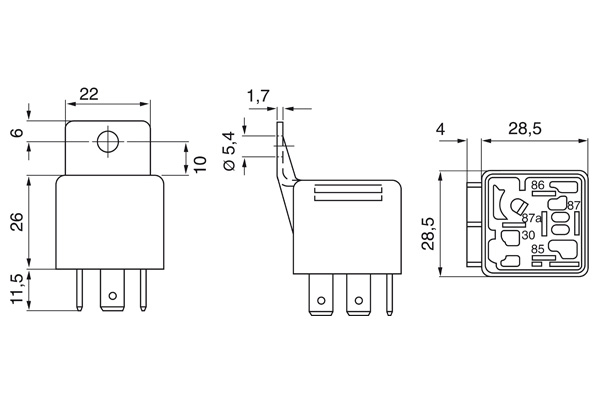

Length [mm] 29 mm
Width [mm] 29 mm
Height [mm] 54 mm
Utility numbers
WECHLSER MIT LASCHE, 0 332 019 150, 4RD933332051, 4RD933332401, 76705Z
Replacement numbers
0 332 100 011, 0 332 200 020, 0 332 200 020, 0 332 200 021, 0 332 200 021, 0 332 204 150, 0 332 204 150, 0 332 204
801, 0 332 204 801
OE numbers
AEBI: 0183450027, 2010219685
Alfa Romeo: 116 00 65 135 24, 531417
AMC: 8933001777, 8933001779
Audi: 2E0 937 099, 443 951 254 A, 803 951 253 A, 944 615 119 00
Buick: 12033862, 14100455, 1626239, 20499299, 25530733, 25537493, 94580644, 94855515, 96821098
CASE IH: 1983 420 C1, 399158, 82856475, 84000651RY102, 86400244
CATERPILLAR: 8C 8019
Chevrolet: 12 088 572, 14 100 455, 20 342 500, 20 541 669, 25 530 733, 25 530 905, 90 191 753, 94 855 515
Chrysler: 04864 0022A, 4864 0022A, 56006 707, 89330 01777, 89330 01779
Citroën: 1267 09, 6555 68, 6555 88
CITROËN/PEUGEOT: 655528, 79 055 22220
BOSCH - 0332209150-BOC - Relay, main current 27.01.2025
Page 1 From
6
OE numbers
DAF: 0906185, 116068, 1279539, 1542541, 1778563, 612311, 906185
Daimler: A 001 835 41 06, A2108240018
DEUTZ-FAHR: 166009, 166075
FAUN: 1731 014, 1731 116, 1731 142
FENDT: X 830 250 007, X 830 250 007 000, X820250021, X825200417, 3615652M1, 4272432M1, 4287339M1
Ferrari: 157992
Fiat: 60501035
Ford: H75TM 11450 A, H75TM 11450 AA, 0605 3460, 1519814, 1574 754, 6053460, 71BG10B926AA
HANOMAG: 3095 148 M91
HANOMAG RHEINSTAHL: 054 653 480 0
HENSCHEL: 0 920 137, 0 921 331
HITACHI: 132201, 2502201
Hyundai: 391603C200
INTERNATIONAL HARV.: 1983 420 C 1, 3146 359 R 1, 846 839 R 1
Iveco: 1164017, 5155318, 60193651, 8109522
Jaguar: 27DAC7687
JCB: 716/02400
JOHN DEERE: AL 15 001 5, AL 20 859 5, AL 29 657, AL 30 663
KAELBLE: 860 08102 75
KÄSSBOHRER: 7 375 032 000, 7 375 120 000
KHD: 01161143, 01164017, 01169084, 01169086, 04323166, 04345975, 1C 12V H7606, 116 1143, 116 4017, 116
9084, 116 9086, 2C 12V H7606, 432 3166, 434 5975, 5107 75 18 06
KÖGEL: 79520, 80079520
KRAMER: 1000193647
KRONE: 03015540
Lada: 21050 3747210 20, 2121 3747210 00
LAMBERET: 1935001
LINDNER: 3002517
MACK: 0438187434
MAN: 81 25902 0011, 81 25902 0039, 81 25902 0056, 81 25902 0088, 81 25902 0111, 81 25902 0238
MASSEY FERGUSON: 3387326M2, 4272432M1
Mercedes-Benz: A 000 542 16 19, A 000 542 19 19, A 000 542 34 19, A 000 545 55 05, A 000 545 83 05, A 000 821 01
63, A 000 821 10 63, A 000 982 81 23, A 000 982 83 23, A 001 542 92 19, A 001 545 24 05, A 001 835 09 06, A 001 835
41 06, A 002 542 07 19, A 002 542 14 19, A 002 542 74 19, A 002 542 89 19, A 002 545 14 19, A 003 542 10 19, A 003
545 27 05, A 003 545 86 05, A 004 545 04 05, A 005 455 55 05, A 210 824 00 18, 000 542 16 19, 000 542 19 19, 000
542 34 19, 000 545 55 05, 000 545 83 05, 000 821 01 63, 000 821 10 63, 000 982 81 23, 000 982 83 23, 001 542 92 19,
001 545 24 05, 001 835 09 06, 001 835 41 06, 002 542 07 19, 002 542 14 19, 002 542 74 19, 002 542 89 19, 002 545 14
19, 003 542 10 19, 003 545 27 05, 003 545 86 05, 004 545 04 05, 005 455 55 05, 210 824 00 18, 5455505
BOSCH - 0332209150-BOC - Relay, main current 27.01.2025
Page 2 From
6
OE numbers
MITSUBISHI: MR301971
MWM: 3 0712 02 9 0007, 6 0742 40 6 0004
Opel: 06238522, 06238525, 12 38 307, 12 38 552, 13500119, 62 38 515, 62 38 564, 90113750, 90491314, 90543014
Peugeot: 1267 09, 6547 TX, 6555 28, 6555 68, 79 055 222 20
Porsche: 616 09 902 01, 911 799 613 56, 944 094 615 01, 944 615 119 00
Puch: 708 0 86 091 0, 721 1 85 231 0
Renault: 00 90 511 178, 50 00 251 161, 50 00 560 885, 55 16 038 407, 55 16 039 662, 77 00 810 395, 77 01 375 547
ROSENBAUER: 951763
Saab: 08533176, 85 06 545, 85 17 195, 85 22 336, 85 53 901
SAVIEM: 50 00 251 161, 50 00 560 885, 55 16 038 407
SCANIA: 8533176
smart: A0005455505, A0005458305, A0008210163, A0009828123, A0009828323, A0015429219, A0025421419,
A0025427419, A0025428919, A0025451419, A0035421019, A0035452705, A0035458605, A0045450405,
A0054555505, 0005455505, 0005458305, 0008210163, 0009828123, 0009828323, 0015429219, 0025421419,
0025427419, 0025428919, 0025451419, 0035421019, 0035452705, 0035458605, 0045450405, 0054555505
SOLO: 00 84 354
SPIERINGS: 1018577
Sterling: 86586550012
Steyr: 397 58 0025, 39700580025
Vauxhall: 12 38 307, 13500119, 62 38 515, 62 38 564, 90491314, 90543014
Volvo: PJ5110012, RM13977251, 1214764, 20043732011, 238642, 241302, 872300
VW: 019 192 784 1, 063 906 061, 165 937 503, 2E0 937 099, 431 951 253 D, 443 951 254 A, 803 951 253 A
BOSCH - 0332209150-BOC - Relay, main current 27.01.2025
Page 3 From
6
Images
BOSCH - 0332209150-BOC - Relay, main current
