Dealer part number 0124525097-BOC
Part Number 0 124 525 097
Packing unit 1
Quantity per PU -
Parts state no longer deliverable by the
manufacturer
EAN 4047024286672
Characteristics
Voltage [V] 14 V
Alternator Charging Current [A] 155 A
Fastening Type Double Pivot Lever
Alternator Type excl. vacuum pump
Rotation Direction Clockwise rotation
Pulleys with freewheel belt pulley
Number of ribs 6
Belt Pulley Ø [mm] 57 mm
Length [mm] 196 mm
Recommended additional repairs V-Belt/V-ribbed Belt
Utility numbers
E8 (>) 14V 82/155A
Replacement numbers
Item is replaced by: 1 986 A01 157
OE numbers
Opel: 12799630, 93187415
Saab: 12 79 963, 12799630, 93187415
SCANIA: 12799630
Steyr: 1279963
Vauxhall: 93187415
Parts list
Part Number Parts Description Quantity
F 00M 130 132 Stator, alternator 1
F 00M 131 649 Rotor, alternator 1
F 00M 133 285 Rectifier, alternator 1
BOSCH - 0124525097-BOC - Alternator - Povrat artikla
narucenog iz Njemacke nije moguc. 24.01.2026
Page 1 From
5
Parts list
Part Number Parts Description Quantity
F00M144172-BOC
BOSCH
F 00M 144 172
Alternator Regulator 1
F00M147777-BOC
BOSCH
F 00M 147 777
Bearing 1
F 00M 147 877 Alternator Freewheel Clutch
Supplementary Article/Supplementary Info: with accessories
1
F00M990405-BOC
BOSCH
F 00M 990 405
Slip Ring Bearing, alternator 1
BOSCH - 0124525097-BOC - Alternator - Povrat artikla
narucenog iz Njemacke nije moguc. 24.01.2026
Page 2 From
5

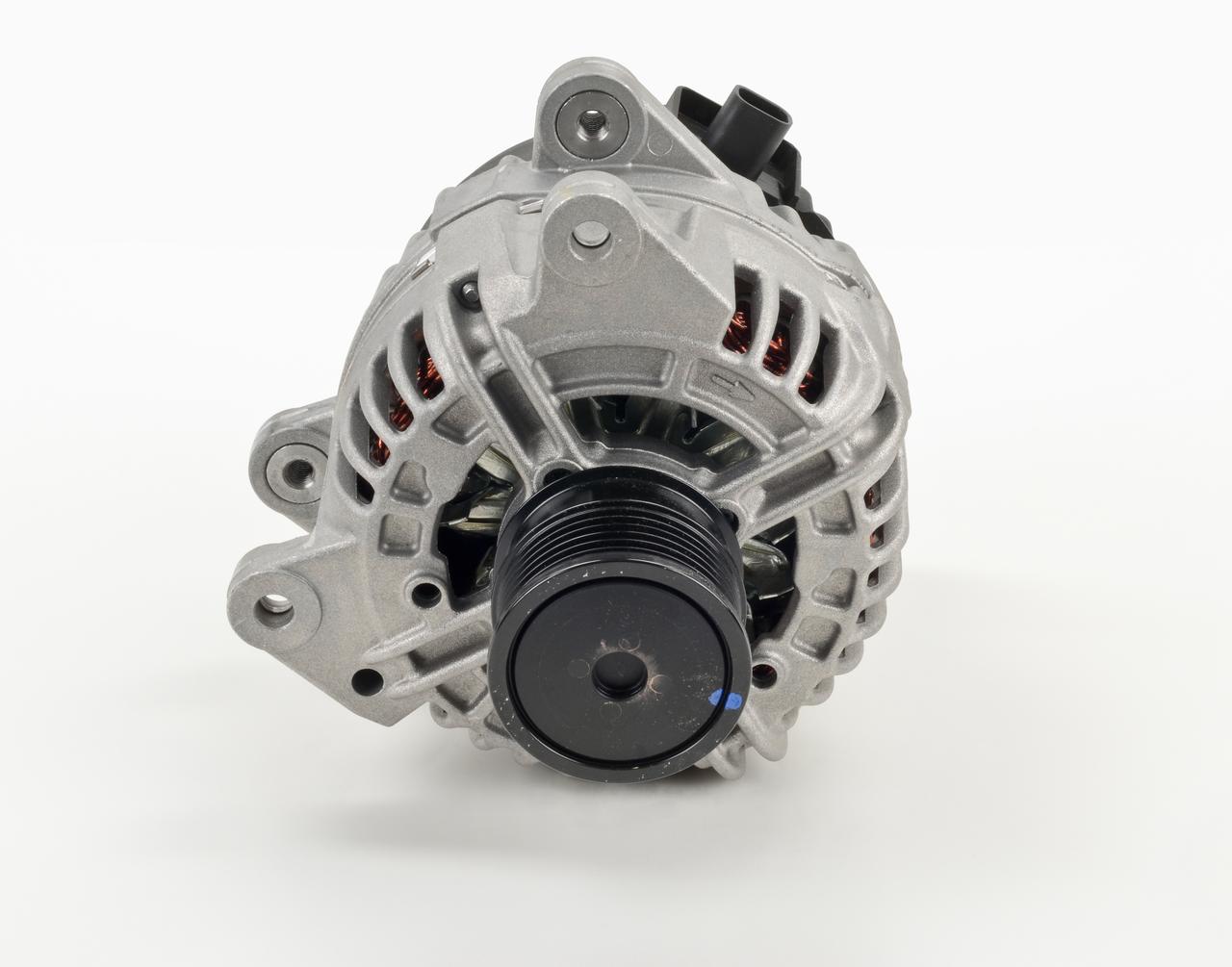

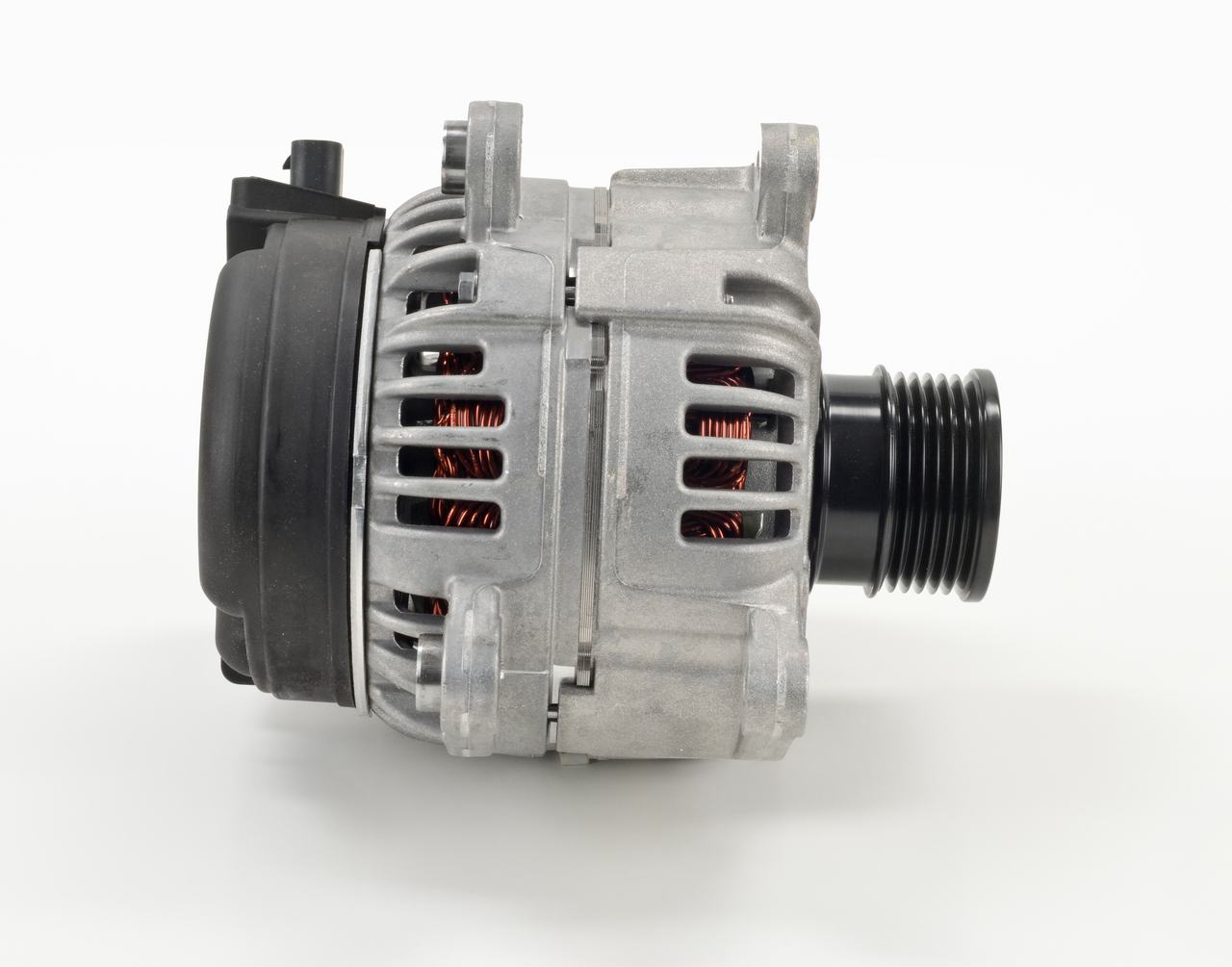

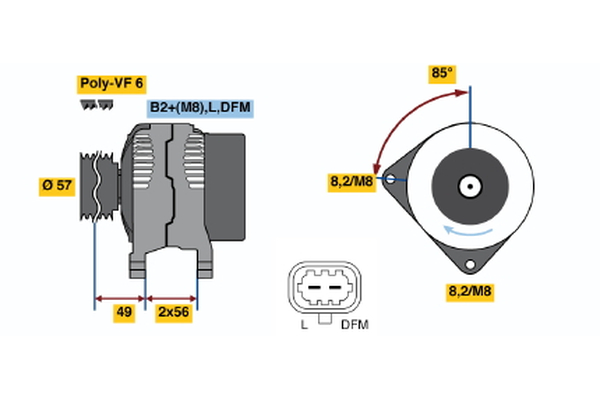

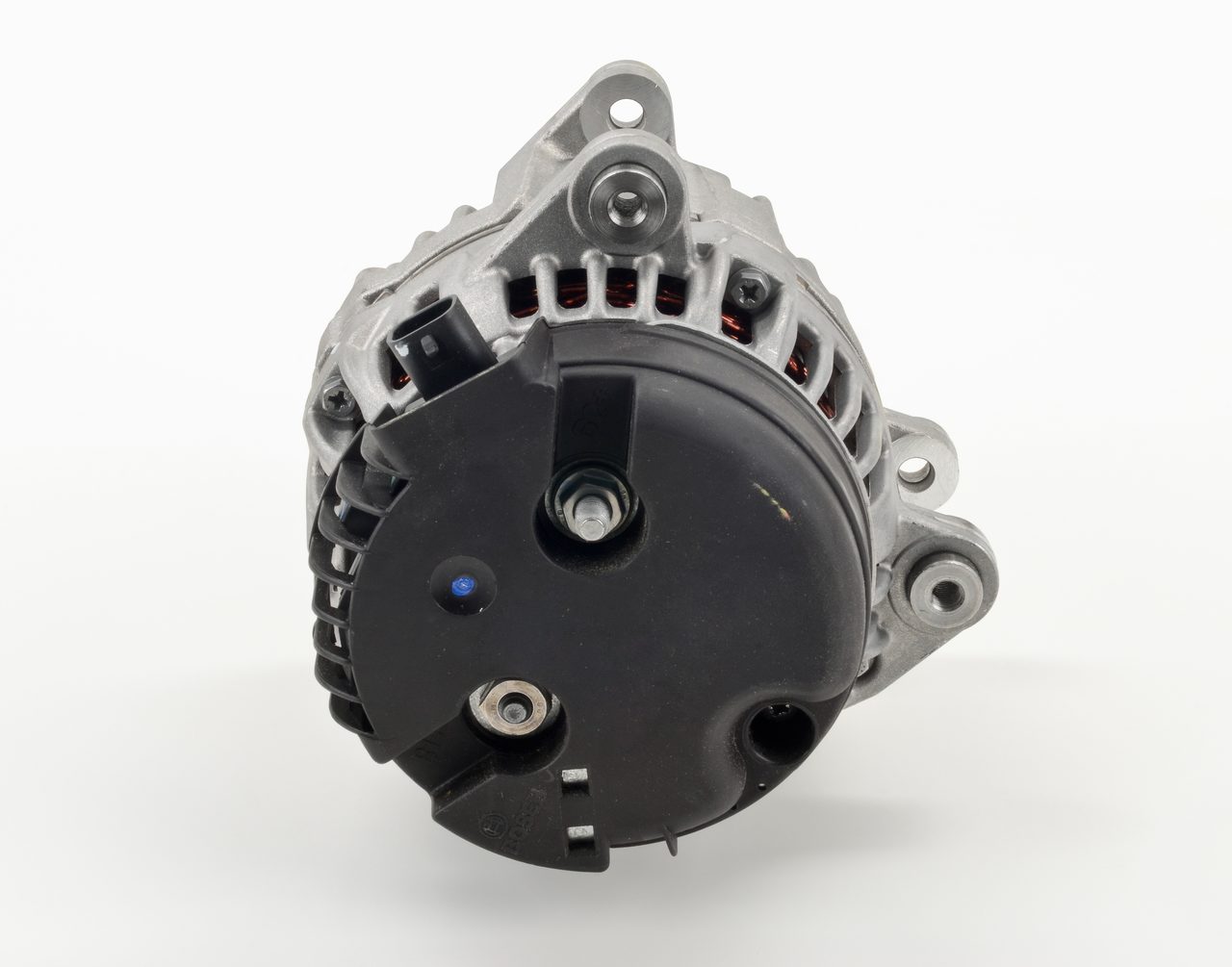

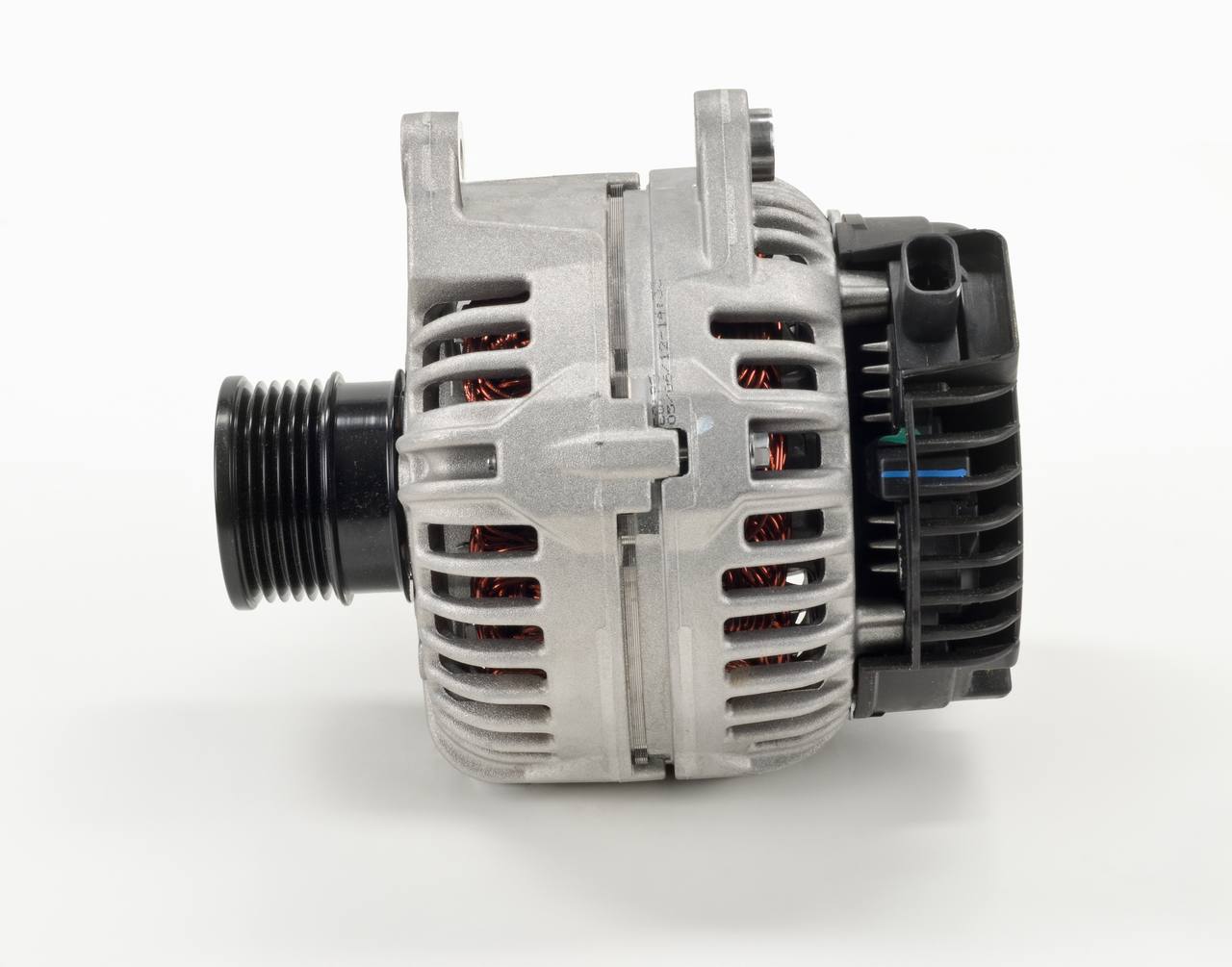

Images
BOSCH - 0124525097-BOC - Alternator - Povrat artikla
narucenog iz Njemacke nije moguc.
