Dealer part number ADW193024-BLU
Part Number ADW193024
Packing unit 1
Quantity per PU -
Parts state Normal
EAN 5050063304060
Vehicle Opel Astra G (T98) 1.2 16V (F08, F48)
Constr.year 02.98 - 09.00
Power 48kW / 65HP
Capacity 1199
Engine Code X 12 XE
KBA Keynumber 0035 342
Characteristics
Outer Diameter [mm] 200 mm
Number of Teeth 14
Multi-piece two-piece
Supplementary Article/Supplementary Info with synthetic grease
Weight [kg] 3,524 kg
Observe service information
Utility numbers
620 3090 09, 3000 836 101, 821301
Replacement numbers
ADG030219, ADW193041
OE numbers
Chevrolet: 55565534, 55565534 S3, 55568083, 55568083 S1, 55594657, 55594657 S3, 55597919, 55597919 S3
Opel: R15200104, 06 64 093, 06 64 093 S6, 06 64 103, 06 64 103 S4, 06 66 147, 06 66 147 S4, 093171786,
093176524, 093176547, 093185875, 093188077, 093189139, 16 06 159, 16 06 237, 16 06 510, 555559472, 555559472
S4, 55559471, 55559471 S6, 55565534, 55565534 S3, 55565536, 55565536 S6, 55568083, 55568083 S4, 55594657,
55594657 S8, 55597919, 55597919 S1, 6 64 093 S6, 6 64 103 S4, 6 66 147 S4, 66 06 001, 90209357, 90209357 S6,
90251383, 90251383 S2, 90288067, 90288067 S2, 90288068, 90288068 S2, 90288421, 90288421 S2, 90335049,
90335049 S2, 90335050, 90335050 S2, 90345124, 90345124 S2, 90345909, 90345909 S2, 90375665, 90375665 S1,
90375885, 90375885 S1, 90421577, 90421577 S5, 90425249, 90425249 S6, 90444451, 90444451 S3, 90465719,
90465719 S4, 90522511, 90522511 S7, 90540725, 90540725 S5, 90541306, 90541306 S6, 90541811, 90541811 S6,
90544037, 90544037 S6, 90544038, 90544038 S2, 90544039, 90544039 S2, 91 17 497, 91 17 497 S2, 91 18 210, 91 18
210 S2, 91 18 211, 91 18 211 S2, 93171786, 93175922, 93175922 S8, 93176524, 93176547, 93185875, 93187703,
93187703 S5, 93188077, 93189139, 93190220, 93190220 S1
Vauxhall: R1020093, R1520096, R1520104, R1520112, 0R1020093, 0R1520096, 0R1520104, 0R1520112, 016 06 237,
016 06 510, 0664058, 0664058 S2, 0664212, 0664212 S7, 0664234, 0664234 S6, 0666006, 0666006 S2, 0666031,
0666031 S7, 093171786, 093176524, 093176547, 093185875, 093185913, 093188077, 093189139, 16 06 237, 16 06
510, 55565534, 55565534 S3, 55568083, 55568083 S2, 664058 S2, 664212 S7, 664234 S6, 666006 S2, 666031 S7,
93171786, 93175919, 93175919 S2, 93176524, 93176547, 93185875, 93185913, 93188077, 93189139, 93190220,
93190220 S2
BLUE PRINT - ADW193024-BLU - Clutch Kit 27.05.2025
Page 1 From
3
Accessory Lists
Part Number Parts Description Quantity
ADW193018-BLU
ADW193018
Clutch Kit 1
ADW193045-BLU
ADW193045
Clutch Kit 1
Additional information
General Information
These products are designed to be used as originally
intended and not modified for purpose. Please ensure the
products are installed by a competent individual. N.B.
products are usually supplied without fitting instructions.
BLUE PRINT - ADW193024-BLU - Clutch Kit 27.05.2025
Page 2 From
3
Images

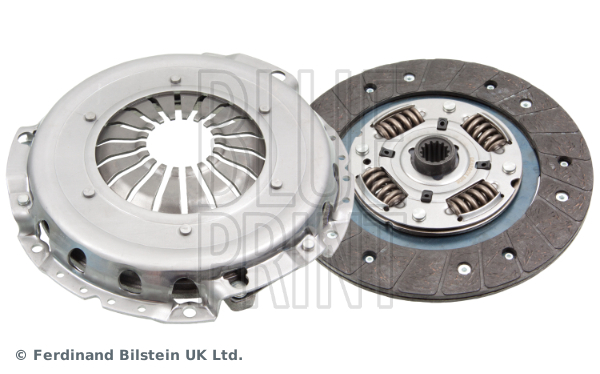

BLUE PRINT - ADW193024-BLU - Clutch Kit
