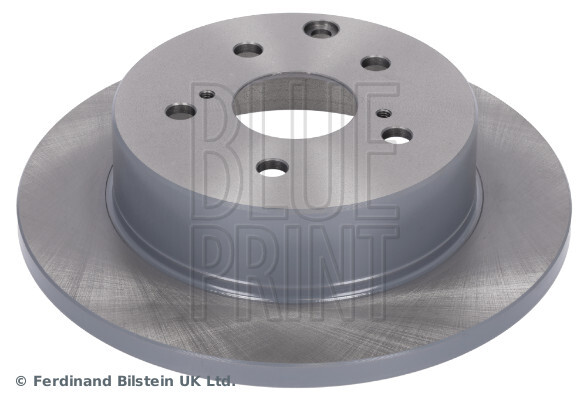

BLUE PRINT - ADT343207-BLU - Brake Disc

Characteristics Brake Disc Thickness [mm] 12 mm Rim Hole Number 5 -Hole Number of mounting bores 1 Thickness [mm] 55 mm Inner Diameter [mm] 173 mm Diameter [mm] 281 mm Bolt Hole Circle Ø [mm] 114 mm max. brake drum reboring dimension [mm] 174 mm Surface Coated Brake Disc Type Solid Fitting Position Rear Axle Minimum thickness [mm] 11 mm Centering Diameter [mm] 62 mm Weight [kg] 5,0 kg Observe service information. Documents/Illustrations Service Information: BPTANVHBRAKING_GB Service Information: BPTEC00134_GB Service Information: DYLBs6JFg0I Service Information: 5Z5BmjxxO5A. Graphic Preview
