Dealer part number ADM52122-BLU
Part Number ADM52122
Packing unit 1
Quantity per PU -
Parts state Normal
EAN 5050063004564
Characteristics
Filter type Spin-on Filter
Height [mm] 76 mm
Outer Diameter [mm] 78 mm
Internal Thread Size 3/4" - 16 UNF
Weight [kg] 0,290 kg
Observe service information
Utility numbers
ADG02104, ADM52109, ADM52110, ADM52118, ADT32108, ADT32114, 0 451 102 056, 0 451 103 227,
0 451 103 298, 0 451 103 363
Replacement numbers
ADM52109
OE numbers
CATERPILLAR: 9Y-4493
CLAAS: 00 0656 834 0
DEUTZ-FAHR: A04 H 4123, 0116 3420
Ford: 1 007 705, 1 007 706, 1 026 285, 1 070 521, 1 070 523, 1 072 434, 1 143 677, 1 455 760, 1 667 890, 1 678 162, 1
682 366, 1 714 387, 1 883 037, 1 911 897, 2 164 292, 5 008 718, 5 008 720, 5 008 721, 5 008 722, 5 012 000, 6 057
166, 6 057 167, 6 062 305, 6 066 094, 6 066 095, 6 066 096, 6 141 811
Ford (USA): BM5Z-6731-A
Mazda: C201-14-302, 1E03-14-302, 1E04-14-302, 1E05-14-302, 1E05-14-302A, 1E05-14-302B, 1E05-14-302C, 1E05-
14-302D, 1E05-14-302E, 1E06-14-302, 1E08-14-302, 1E08-14-302A, 1E09-14-302, 1E13-14-302, 1E13-14-302A
Skoda: 047 115 561 F, 047 198 561 F, 047 498 561 F, 110 402 005 0, 114 094 100, 114 094 101, 115 094 100, 115 094
100 S, 194 094 100, 201 950 001, 47 115 561 F, 47 198 561 F, 47 498 561 F
Steyr: 1 1 07 003 0, 508 107 87
Volvo: 30711616, 30731879, 30777487, 31339023, 586039
BLUE PRINT - ADM52122-BLU - Oil Filter 04.02.2025
Page 1 From
3
Additional information
General Information
These products are designed to be used as originally
intended and not modified for purpose. Please ensure the
products are installed by a competent individual. N.B.
products are usually supplied without fitting instructions.
BLUE PRINT - ADM52122-BLU - Oil Filter 04.02.2025
Page 2 From
3

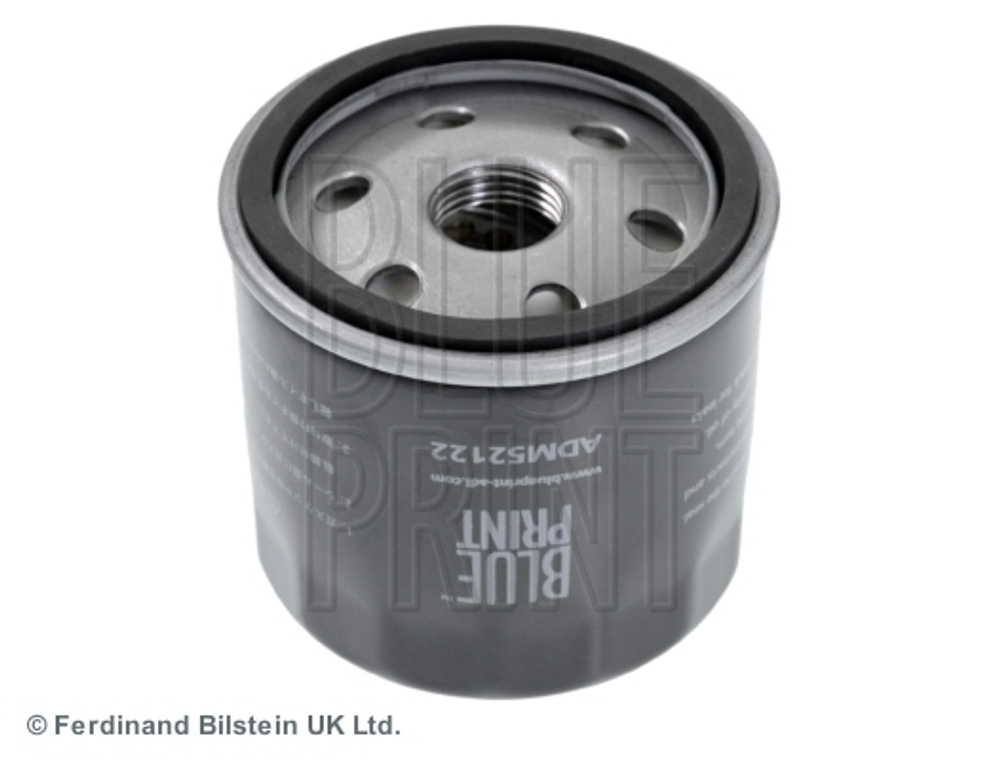

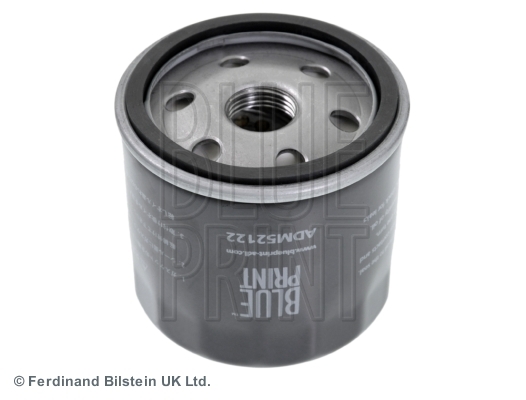

Images
BLUE PRINT - ADM52122-BLU - Oil Filter
