Dealer part number ADG043195-BLU
Part Number ADG043195
Packing unit 2
Quantity per PU -
Parts state Normal
EAN 5050063121681
Characteristics
Brake Disc Thickness [mm] 10 mm
Rim Hole Number 5 -Hole
Number of mounting bores 2
Thickness [mm] 45 mm
Diameter [mm] 262 mm
Bolt Hole Circle Ø [mm] 114 mm
Surface Coated
Brake Disc Type Solid
Fitting Position Rear Axle
Minimum thickness [mm] 8,4 mm
Centering Diameter [mm] 76 mm
Weight [kg] 3,930 kg
for OE number 58411-A6300
Observe service information
Utility numbers
24.0110-0368.1, 24.0110-0379.1, DF6627
Replacement numbers
ADG043176, ADG043176
OE numbers
Hyundai: 58411-A6300, 58411-3X300, 58411-3Y300
Kia: 58411-A6300, 58411-3X300
Accessory Lists
Part Number Parts Description Quantity
ADBP550010 High Temperature Lubricant 1
ADG05534 High Temperature Lubricant 1
BLUE PRINT - ADG043195-BLU - Brake Disc 26.03.2025
Page 1 From
4
Additional information
General Information
These products are designed to be used as originally
intended and not modified for purpose. Please ensure the
products are installed by a competent individual. N.B.
products are usually supplied without fitting instructions.
BLUE PRINT - ADG043195-BLU - Brake Disc 26.03.2025
Page 2 From
4
Images

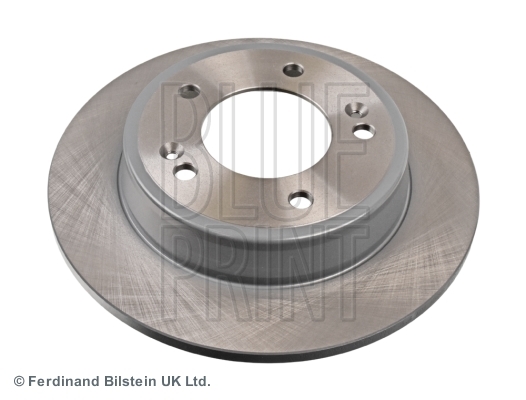

BLUE PRINT - ADG043195-BLU - Brake Disc
