Dealer part number ADG04231-BLU
Part Number ADG04231
Packing unit 1
Quantity per PU -
Parts state Normal
EAN 5050063042313
Characteristics
Length [mm] 149 mm
Width [mm] 58 mm
Test Mark ECE R90 Approved
Fitting Position Front Axle
Thickness 1 [mm] 17 mm
Wear Warning Contact with acoustic wear warning
Weight [kg] 1,89 kg
Observe service information
Utility numbers
23569, 23570, 23571, D864-7739, 13.0460-5832.2, 572453B, ADG04239, FDB1605, BL1929A2, PA-H05AF,
J3600526, 90 91 6682, 2356901, GDB3297, 598505
OE numbers
Hyundai: AY040NS048, AY040NS054, AY040NS081, AY040NS090, 1Y040NS041, 41060ZG225, 41060-4L092, 41060-
5L725, 41060-9E025, 55861370260, 58101-26A00, 58101-26A10, 58101-26A30, 58101-26A30 S1, 581013AA10,
581013AA20, 58101-3AA30, 58101-39A30, 58101-39A40, 58101-4AA26, 58101-4AA90, 58101-47A00
Nissan: 41060-6M090
Ssangyong : 4813008250, 4813008260
Accessory Lists
Part Number Parts Description Quantity
ADBP480025 Accessory Kit, disc brake pad 1
ADBP550010 High Temperature Lubricant 1
ADG05534 High Temperature Lubricant 1
Additional information
General Information
These products are designed to be used as originally
intended and not modified for purpose. Please ensure the
products are installed by a competent individual. N.B.
products are usually supplied without fitting instructions.

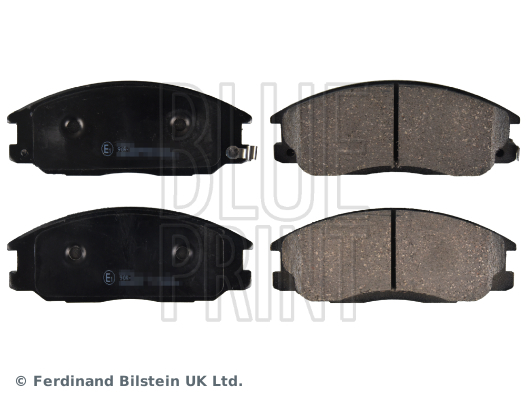

BLUE PRINT - ADG04231-BLU - Brake Pad Set, disc brake 05.11.2024
Page 1 From
3
Additional information
BLUE PRINT - ADG04231-BLU - Brake Pad Set, disc brake
