Dealer part number ADG042137-BLU
Part Number ADG042137
Packing unit 1
Quantity per PU -
Parts state Normal
EAN 5050063115956
Characteristics
Width [mm] 60 mm
Test Mark ECE R90 Approved
Fitting Position Front Axle
Thickness 1 [mm] 17 mm
Wear Warning Contact with acoustic wear warning
Observe service information
Length [mm] 133 mm
Additional parts information
Utility numbers
13.0460-5645.2, ADG042153, PA-K24AF, GDB3549
Utility numbers
D1543-8751
OE numbers
Hyundai: 58101-A4A11, 58101-A4A15, 58101-A6A00, 58101-A6A01, 58101-A6A02, 58101-A7A00, 58101-B1A00,
58101-F2A00, 58101-1SA30, 58101-1UA00, 58101-2VA50, 58101-2VA50 SK1, 58101-2VA60, 58101-3NA50, 58101-
3VA50, 58101-3VA70, 58101-3XA00, 58101-3XA10, 58101-3XA20
Kia: S58101A6A02, 58101-A4A11, 58101-A4A15, 58101-A6A00, 58101-A6A01, 58101-A6A02, 58101-A7A00, 58101-
1UA00, 58101-2VA50, 58101-2VA60, 58101-3NA50, 58101-3XA00
Accessory Lists
Part Number Parts Description Quantity
ADBP550010 High Temperature Lubricant
Weight 3 g, Colour white, Packing Type Bag, Observe service information
1
ADG048607 Accessory Kit, disc brake pad
Fitting Position Front Axle
1
ADG05534 High Temperature Lubricant
Weight 100 g, Colour white, Packing Type Tube, Observe service information
1
BLUE PRINT - ADG042137-BLU - Brake Pad Set, disc brake 24.08.2026
Page 1 From
3
Additional information
General Information
These products are designed to be used as originally
intended and not modified for purpose. Please ensure the
products are installed by a competent individual. N.B.
products are usually supplied without fitting instructions.
BLUE PRINT - ADG042137-BLU - Brake Pad Set, disc brake 24.08.2026
Page 2 From
3
Images

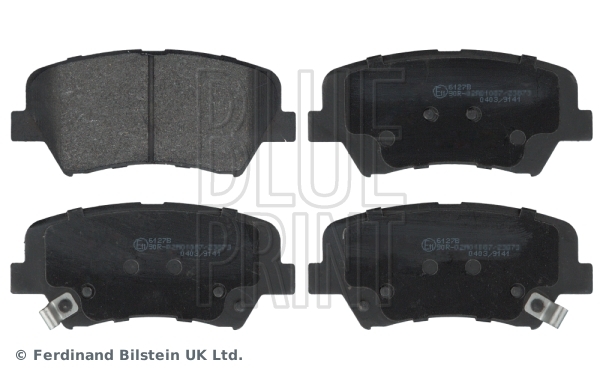

BLUE PRINT - ADG042137-BLU - Brake Pad Set, disc brake
