Dealer part number ADG02342-BLU
Part Number ADG02342
Packing unit 1
Quantity per PU -
Parts state Normal
EAN 5050063023428
Characteristics
Filter type In-Line Filter
with water drain screw
Height [mm] 189 mm
Outer Diameter [mm] 87 mm
Pipe Diameter [mm] 10 mm
8 mm
Weight [kg] 0,380 kg
Observe service information
Utility numbers
PP 838/4, H192WK, KL446, SF PF7474, 50 93 3464, 24.445.00, 587503
OE numbers
Ford: 1 132 631, 1 137 026, 1 230 645, 1 480 561, 1 532 171, 1 709 787, 4 442 434, 4 598 591, 5 292 808
Ford (USA): 1S419155AC, 2T149155CB, 3S719155BA, 3S719155B1B
Hyundai: 31390-H1950, 31390-H1951, 31390-H1952, 31390-H1970, 31395-H1950, 31395-H1952
Jaguar: C2S 27643
Kia: oK52A-13-480, oK52A-23-570, oK52A-23-570A, oK556-13-480, 0K52A-13-480, 0K52A-23-570, 0K52A-23-570A,
0K556-13-480, 31395-H1950
TATA: 253409110108
Additional information
General Information
These products are designed to be used as originally
intended and not modified for purpose. Please ensure the
products are installed by a competent individual. N.B.
products are usually supplied without fitting instructions.
BLUE PRINT - ADG02342-BLU - Fuel Filter 30.05.2025
Page 1 From
3
Images

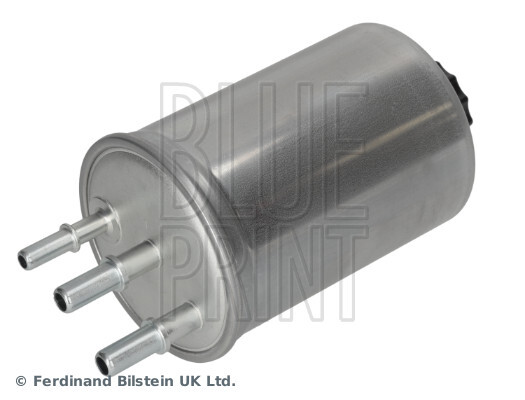

BLUE PRINT - ADG02342-BLU - Fuel Filter
