Dealer part number ADA102101-BLU
Part Number ADA102101
Packing unit 1
Quantity per PU -
Parts state Normal
EAN 5050063592658
Characteristics
Filter type Filter Insert
Inner Diameter [mm] 29 mm
Height [mm] 141 mm
Outer Diameter [mm] 71 mm
Sealing Ring Diameter [mm] 74 mm
Weight [kg] 0,072 kg
Supplementary Article/Info 2 with seal ring
Observe service information
Utility numbers
1 457 429 192, OE 650/1, E19H D83, OX188D, SF OF0045, 30 92 2546, 25.023.00, 586506
OE numbers
Audi: 045 115 466 A, 045 115 466 B, 070 115 562, 071 115 562, 071 115 562 A, 071 115 562 B, 071 115 562 C, 45 115
466 A, 45 115 466 B, 70 115 562, 71 115 562, 71 115 562 A, 71 115 562 B, 71 115 562 C
Chrysler: 68001297AA, 68001297AB
Dodge: 68001297AA
Ford: 1 118 184, 1 250 679
Ford (USA): YM216744AA, 3M216744AA
Jeep: 68001297AA
MITSUBISHI: MN980125, MN980408, 68001297AA
SEAT: 045 115 466 A, 045 115 466 B, 070 115 562, 071 115 562, 071 115 562 A, 071 115 562 B, 071 115 562 C, 45
115 466 A, 45 115 466 B, 70 115 562, 71 115 562, 71 115 562 A, 71 115 562 B, 71 115 562 C
Skoda: 045 115 466 A, 045 115 466 B, 070 115 562, 071 115 562, 071 115 562 A, 071 115 562 B, 071 115 562 C, 45
115 466 A, 45 115 466 B, 70 115 562, 71 115 562, 71 115 562 A, 71 115 562 B, 71 115 562 C
VW: 045 115 466 A, 045 115 466 B, 045 115 466 C, 070 115 562, 071 115 562, 071 115 562 A, 071 115 562 B, 071 115
562 C, 45 115 466 A, 45 115 466 B, 45 115 466 C, 70 115 562, 71 115 562, 71 115 562 A, 71 115 562 B, 71 115 562 C
Additional information
General Information
BLUE PRINT - ADA102101-BLU - Oil Filter 14.11.2024
Page 1 From
3
Additional information
These products are designed to be used as originally
intended and not modified for purpose. Please ensure the
products are installed by a competent individual. N.B.
products are usually supplied without fitting instructions.
BLUE PRINT - ADA102101-BLU - Oil Filter 14.11.2024 E19HD83 E19HD83 EOF087
Page 2 From
3
Images

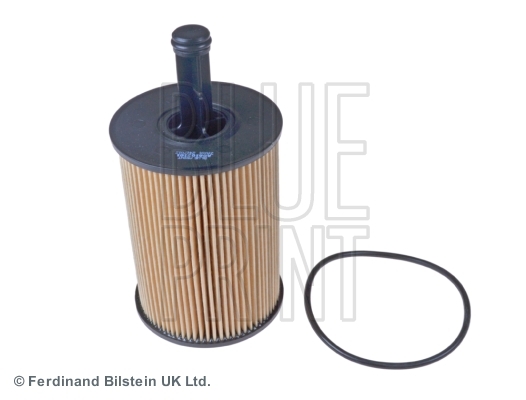

BLUE PRINT - ADA102101-BLU - Oil Filter
