Dealer part number BDS1244HC-BEN
Part Number BDS1244HC
Packing unit 1
Quantity per PU 1
Parts state Normal
EAN 4065586047784
Characteristics
Brake Disc Type internally vented
Diameter [mm] 296 mm
Brake Disc Thickness [mm] 29 mm
Height [mm] 52 mm
Minimum thickness [mm] 27 mm
Machining High-carbon
Surface Coated
Inner Diameter [mm] 154 mm
Bolt Hole Circle Ø [mm] 115 mm
Centering Diameter [mm] 71 mm
Hole Arrangement/Number 05/06
Wheel Bolt Bore Diameter [mm] 13 mm
Supplementary Article/Supplementary Info 2 without wheel hub
without wheel bearing
without wheel studs
Packaging length [cm] 32,8 cm
Packaging width [cm] 32,8 cm
Packaging height [cm] 7,5 cm
Weight [kg] 8,7 kg
OE numbers
Chevrolet: 15837488, 20892949, 25804049, 96625948
Opel: 20955857, 4801850, 4808848
Suzuki: 5521178J01, 5521178J01000, 5521178J02
Vauxhall: 20955857, 4801850, 96625948
BENDIX Braking - BDS1244HC-BEN - Brake Disc 06.03.2026
Page 1 From
2
Images

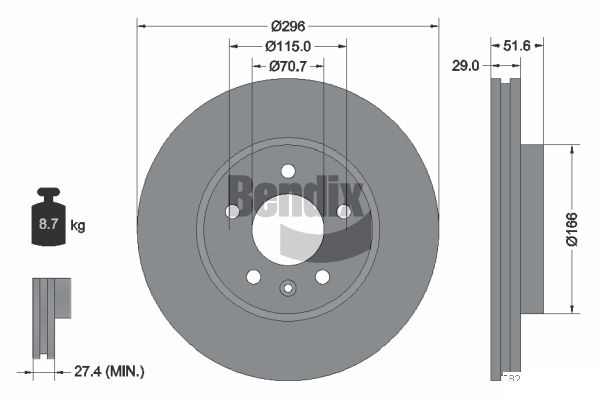

BENDIX Braking - BDS1244HC-BEN - Brake Disc
