BENDIX Braking - BDS1010-BEN - Brake Disc

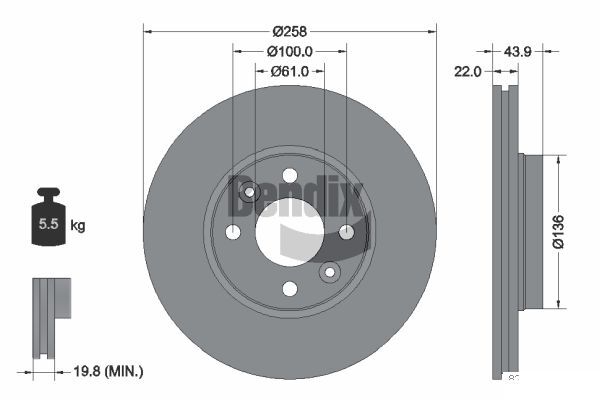

BDS1010-BEN Properties vehicle Fitting Position Front Axle Braking/Driving Dynamics for vehicles with ABS Characteristics Brake Disc Type Externally Vented Diameter [mm] 258 mm Brake Disc Thickness [mm] 22 mm Height [mm] 44 mm Minimum thickness [mm] 20 mm Surface Coated Inner Diameter [mm] 125 mm Bolt Hole Circle Ø [mm] 100 mm Centering Diameter [mm] 61 mm Hole Arrangement/Number 04/06 Wheel Bolt Bore Diameter [mm] 14 mm Supplementary Article/Supplementary Info 2 without wheel hub without wheel bearing without wheel studs Packaging length [cm] 29,3 cm Packaging width [cm] 29,3 cm Packaging height [cm] 6,5 cm Weight [kg] 5,5 kg
