ATE - 24032501131-ATE - Brake Disc

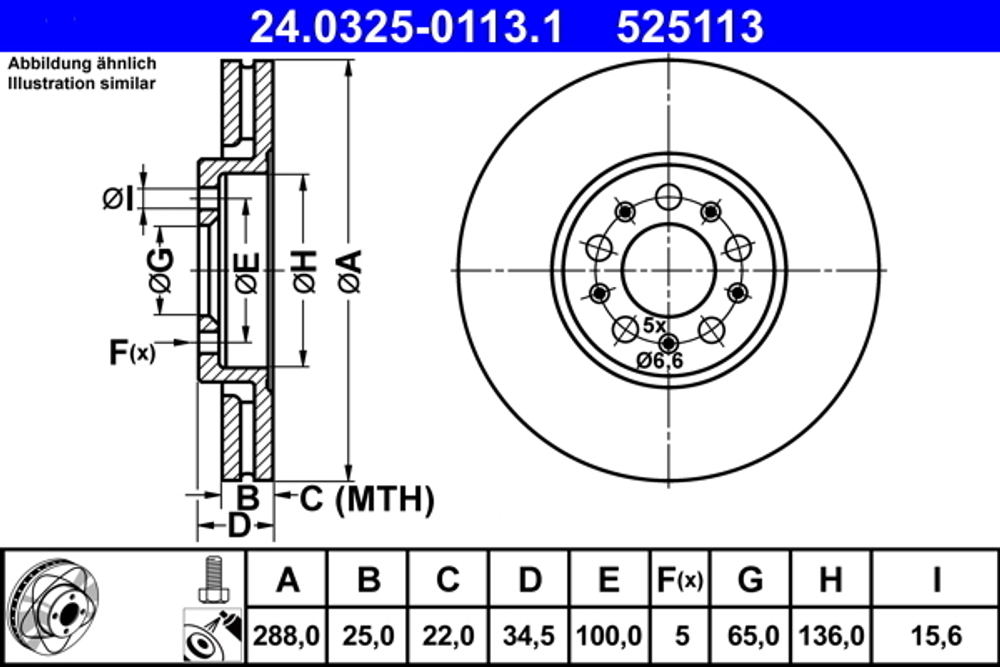

Characteristics Diameter [mm] 288 mm Brake Disc Thickness [mm] 25 mm Minimum thickness [mm] 22 mm Brake Disc Type Vented Machining High-carbon Surface Coated Number of Holes 5 Bolt Hole Circle Ø [mm] 100 mm Height [mm] 35 mm Centering Diameter [mm] 65 mm Inner Diameter [mm] 136 mm Bore Diameter [mm] 16 mm Supplementary Article/Supplementary Info 2 with bolts/screws MAPP code available. OE numbers SEAT 1J0 615 301 C 1J0 615 301 R 1J0 615 301 S 6R0 615 301 D Skoda 1J0 615 301 C 1J0 615 301 R 6R0 615 301 A 6R0 615 301 D VAG 1J0 615 301 C 1J0 615 301 K 1J0 615 301 R 1J0 615 301 S 6R0 615 301 A 6R0 615 301 D. Graphic Preview
