ATE - 24032201511-ATE - Brake Disc

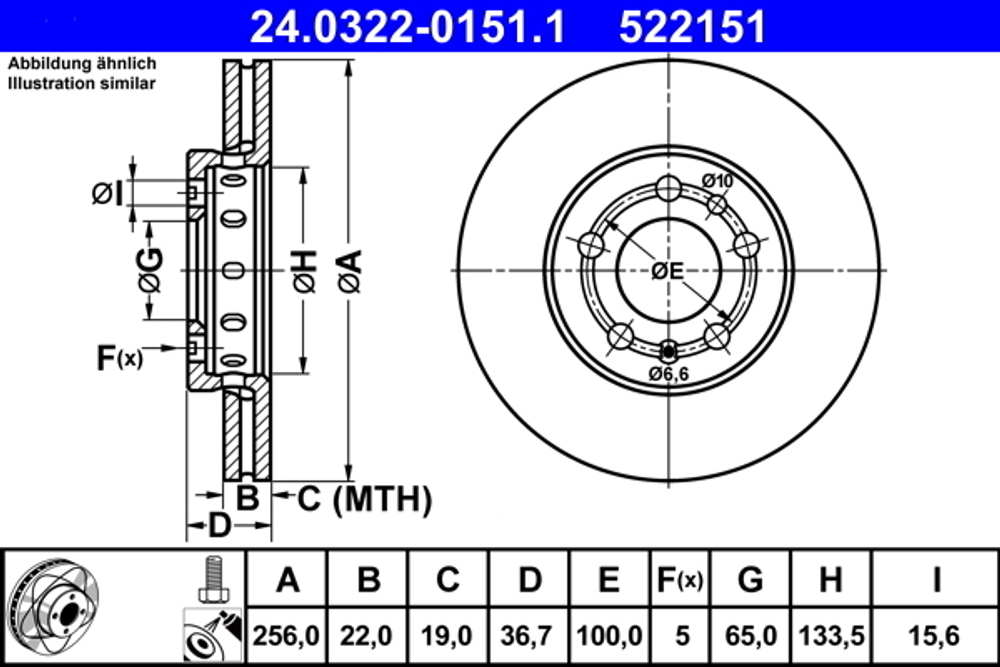

Characteristics Diameter [mm] 256 mm Brake Disc Thickness [mm] 22 mm Minimum thickness [mm] 19 mm Brake Disc Type Vented Machining High-carbon Surface Coated Number of Holes 5 Bolt Hole Circle Ø [mm] 100 mm Height [mm] 37 mm Centering Diameter [mm] 65 mm Inner Diameter [mm] 134 mm Bore Diameter [mm] 16 mm Supplementary Article/Supplementary Info 2 with bolts/screws MAPP code available. OE numbers SEAT 1J0 615 301 D 1J0 615 301 L 6QD 615 301 6R0 615 301 6R0 615 301 C Skoda 1J0 615 301 D 1J0 615 301 L 6QD 615 301 6R0 615 301 6R0 615 301 C VAG 1J0 615 301 D 1J0 615 301 L 6QD 615 301 6R0 615 301 6R0 615 301 C 8Z0 615 301 B 8Z0 615 301 D. Graphic Preview
