ATE - 24030901231-ATE - Brake Disc

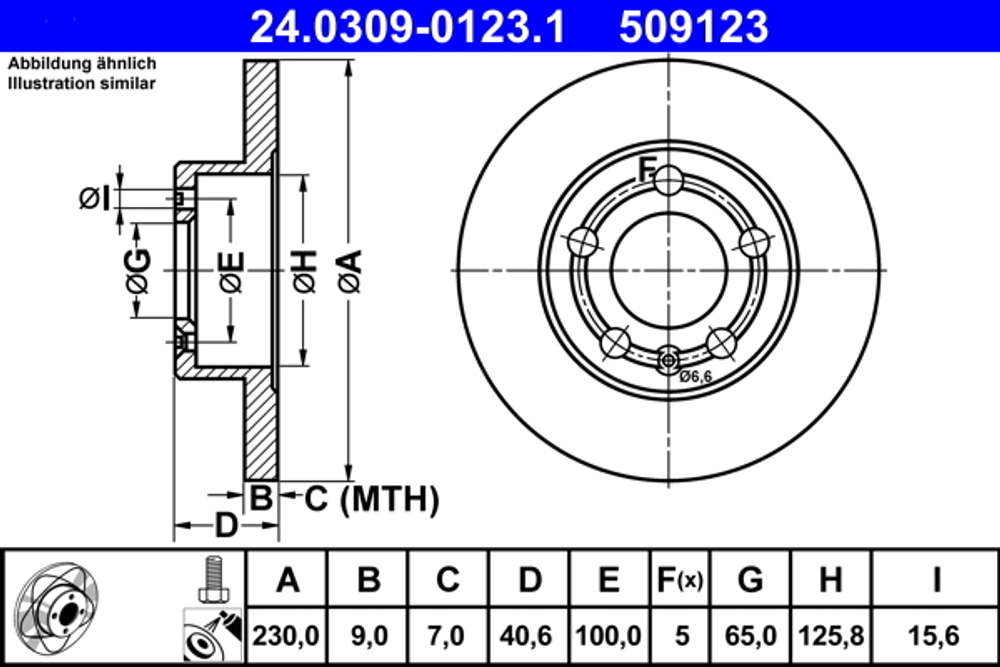

Characteristics Diameter [mm] 230 mm Brake Disc Thickness [mm] 9 mm Minimum thickness [mm] 7,0 mm Brake Disc Type Solid Number of Holes 5 Surface Coated Bolt Hole Circle Ø [mm] 100 mm Height [mm] 41 mm Centering Diameter [mm] 65 mm Inner Diameter [mm] 126 mm Bore Diameter [mm] 16 mm Supplementary Article/Supplementary Info 2 with bolts/screws Test Mark E1 90R-02C0859/1293 MAPP code available. OE numbers SEAT 1J0 615 601 1J0 615 601 C 1J0 615 601 N 1J0 615 601 P 1J0 615 601 Q 2Q0 615 601 H Skoda 1J0 615 601 1J0 615 601 C 1J0 615 601 N 1J0 615 601 P 1J0 615 601 Q 2Q0 615 601 H VAG 1J0 615 601 1J0 615 601 C 1J0 615 601 N 1J0 615 601 P 1J0 615 601 Q 2Q0 615 601 H. Graphic Preview
