Dealer part number 24013002201-ATE
Part Number 24.0130-0220.1
Packing unit 2
Quantity per PU 1
Parts state Normal
EAN 4006633381482

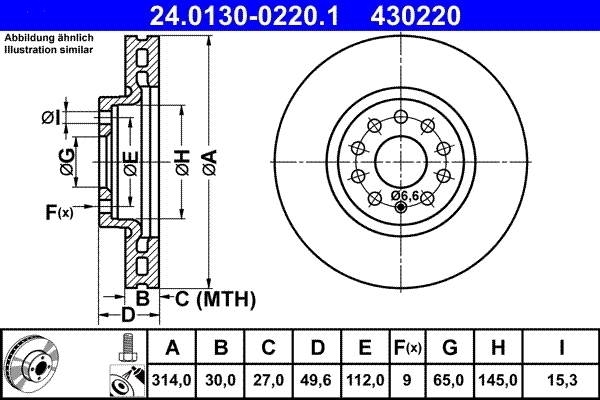

Characteristics
Outer Diameter [mm] 314,0 mm
Brake Disc Thickness [mm] 30,0 mm
Brake Disc Type Vented
Machining High-carbon
Surface Coated
Number of Holes 5
Bolt Hole Circle Ø [mm] 112,0 mm
Height [mm] 49,6 mm
Centering Diameter [mm] 65,0 mm
Supplementary Article/Info 2 with bolts/screws
Test Mark E1 90R-02C0115/1172
MAPP code available
Minimum thickness [mm] 27,0 mm
No. of holes 2 9
Inner Diameter [mm] 145,0 mm
Bore Diameter [mm] 15,3 mm
Additional parts information
Utility numbers
DF6695S
Utility numbers
430220
OE numbers
SEAT: 1K0 615 301 AJ, 5QF 615 301 A
Skoda: 1K0 615 301 AJ, 5QF 615 301 A
VAG: 1K0 615 301 AJ, 5QF 615 301 A
ATE - 24013002201-ATE - Brake Disc 26.10.2024
Page 1 From
2
Images

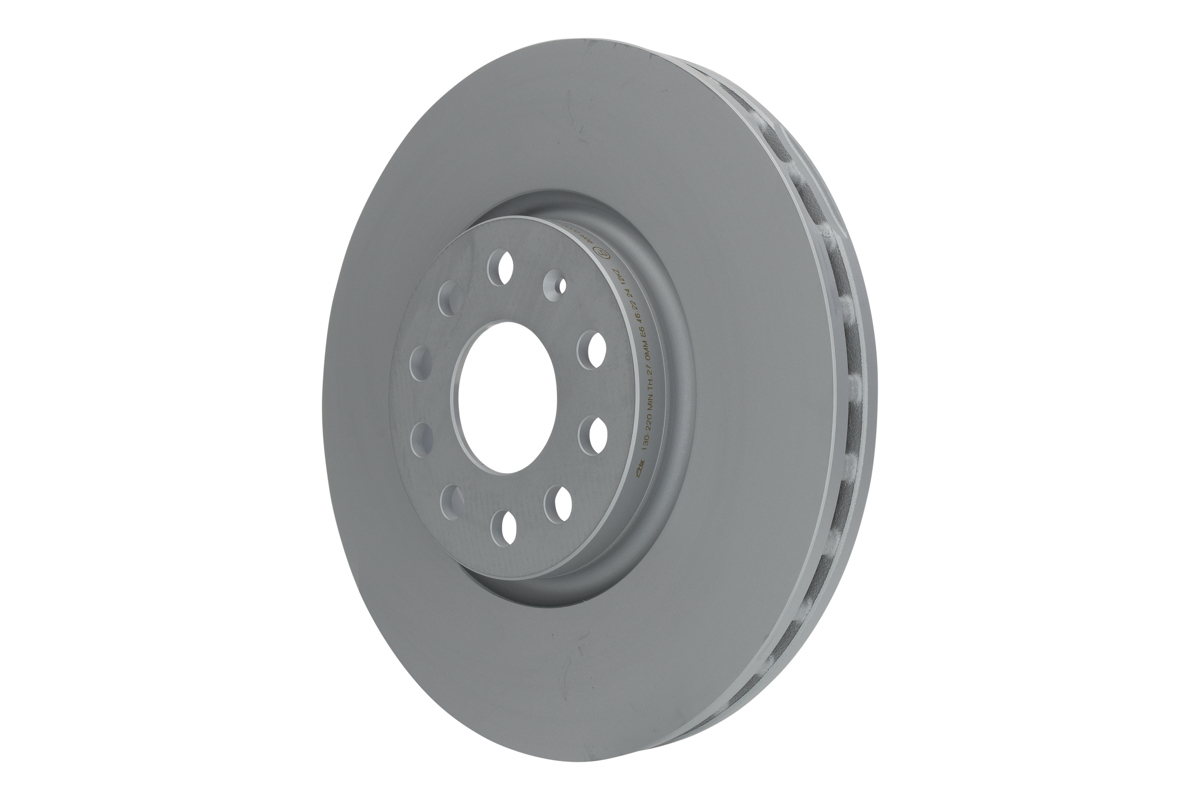

ATE - 24013002201-ATE - Brake Disc
