Dealer part number 24012801761-ATE
Part Number 24.0128-0176.1
Packing unit 1
Quantity per PU 2
Parts state Normal
EAN 4006633209526
Characteristics
Diameter [mm] 295 mm
Brake Disc Thickness [mm] 28 mm
Minimum thickness [mm] 25 mm
Brake Disc Type Vented
Machining Alloyed/High-carbon
Surface Coated
Number of Holes 5
Supplementary Article/Info 2 with bolts/screws
MAPP code available
Bolt Hole Circle Ø [mm] 112 mm
Height [mm] 55 mm
Centering Diameter [mm] 67 mm
Inner Diameter [mm] 154 mm
Bore Diameter [mm] 15 mm
Test Mark E1 90R-02C0115/0046
Utility numbers
428176, 22156, DF4261, 400.3618.20, 400.3619.20, 400.3619.50, 400.3619.52
Replacement numbers
24.0128-0141.1
OE numbers
Mercedes-Benz: A 211 421 07 12, A 211 421 08 12, 211 421 07 12, 211 421 08 12
Additional information
Installation Information
Warning notice
----------------------
Work on the SBC brake system may only be carried
out by trained specialists!
¿ Risk of injury!
ATE - 24012801761-ATE - Brake Disc 26.11.2024
Page 1 From
3
Additional information
¿ System is pressurized!
¿ Observe manufacturer¿s guidelines!
¿ Before starting maintenance and repair work the
system must be deactivated.
¿ After finishing maintenance and repair work the
system must be reactivated.
¿ Only use appropriate service and diagnosis equipment!
¿ Recommendation:
ContiSys Check Item no. 03.9301-6000.4
ContiSys Scan Item no. 03.9301-5000.4
92115205
Bleeding unit ATE FB 30s Item no. 03.9302-3010.4
Continental is not liable for damages which occur due
to incorrect installation of the product.
ATE - 24012801761-ATE - Brake Disc 26.11.2024
Page 2 From
3

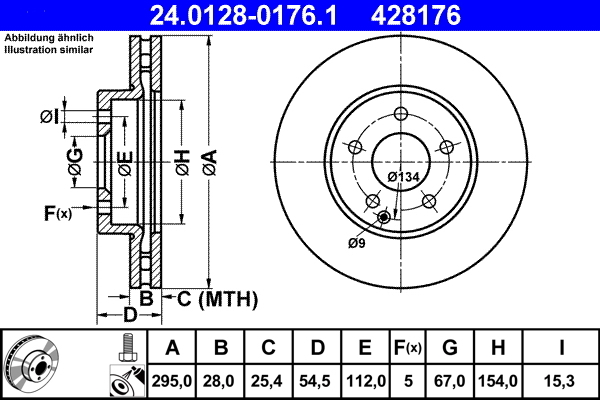

Images
ATE - 24012801761-ATE - Brake Disc
