Dealer part number 24012801551-ATE
Part Number 24.0128-0155.1
Packing unit 2
Quantity per PU 1
Parts state Normal
EAN 4006633310260
Characteristics
Diameter [mm] 295 mm
Brake Disc Thickness [mm] 28 mm
Minimum thickness [mm] 25 mm
Brake Disc Type Vented
Machining Alloyed/High-carbon
Surface Coated
Number of Holes 5
Supplementary Article/Info 2 with bolts/screws
MAPP code available
Bolt Hole Circle Ø [mm] 112 mm
Height [mm] 65 mm
Centering Diameter [mm] 67 mm
Inner Diameter [mm] 154 mm
Bore Diameter [mm] 15 mm
Test Mark E1 90R-02C0115/0039
Utility numbers
428155, 30550, DDF1690, DF4863S
OE numbers
Mercedes-Benz: A 204 421 07 12, A 204 421 25 12, A 212 421 13 12, 204 421 07 12, 204 421 25 12, 212 421 13 12, 92163205
ATE - 24012801551-ATE - Brake Disc 03.02.2025
Page 1 From
2
Images

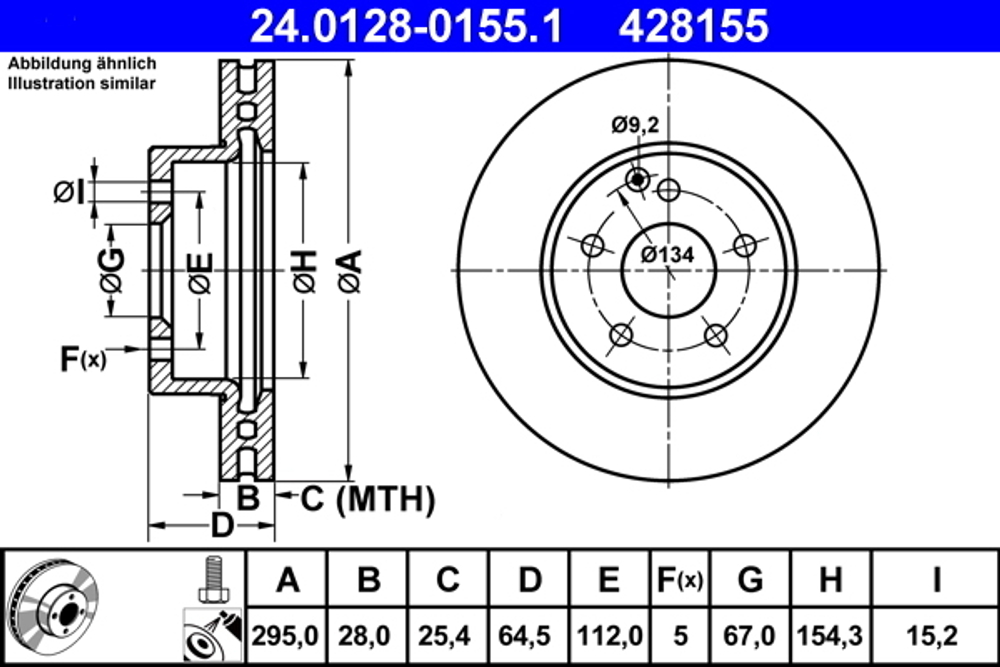

ATE - 24012801551-ATE - Brake Disc
