ATE - 24012601831-ATE - Brake Disc

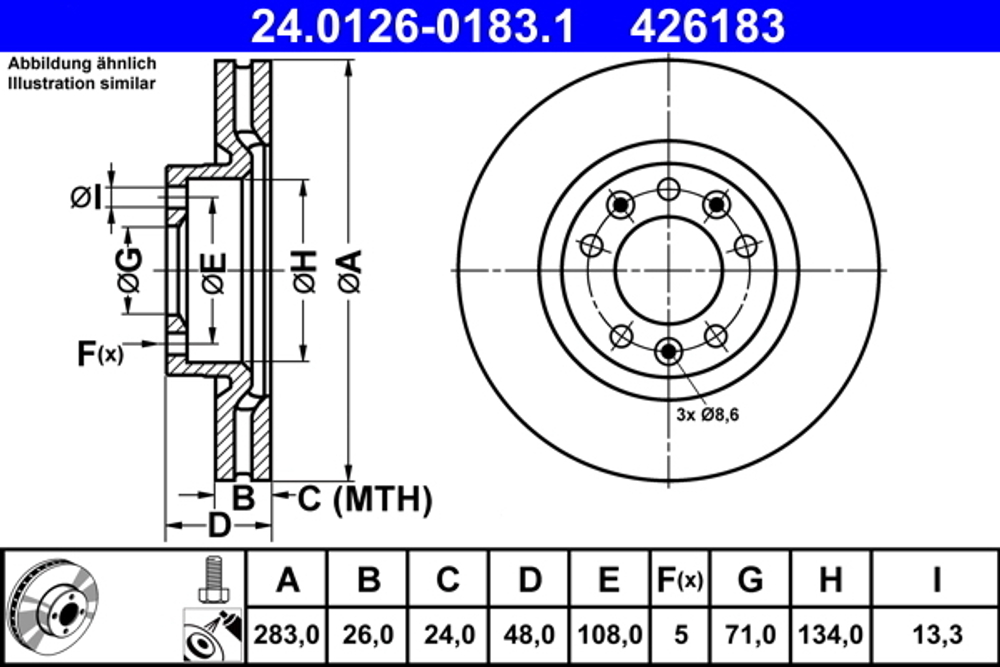

Characteristics Diameter [mm] 283 mm Brake Disc Thickness [mm] 26 mm Minimum thickness [mm] 24 mm Brake Disc Type Vented Machining Alloyed/High-carbon Surface Coated Number of Holes 5 Supplementary Article/Supplementary Info 2 with bolts/screws MAPP code available Bolt Hole Circle Ø [mm] 108 mm Height [mm] 48 mm Centering Diameter [mm] 71 mm Inner Diameter [mm] 134 mm Bore Diameter [mm] 13 mm Test Mark E1 90R-02C0115/1109. OE numbers Citroën 16 478 674 80 98 059 614 80 Opel 98 039 181 80 Peugeot 16 478 674 80 98 039 181 80 98 059 614 80 Toyota SU001-B2510 SU001-B3767 SU001-B5507 Vauxhall 98 039 181 80
