ATE - 24012501601

Dealer part number 24012501601-ATE
Part Number 24.0125-0160.1
Packing unit 2
Quantity per PU 1
Parts state Normal
EAN 4006633220835
Characteristics
Diameter [mm] 325 mm
Brake Disc Thickness [mm] 25 mm
Minimum thickness [mm] 23 mm
Brake Disc Type Vented
Machining High-carbon
Surface Coated
Number of Holes 5
Bolt Hole Circle Ø [mm] 120 mm
Height [mm] 62 mm
Centering Diameter [mm] 75 mm
Inner Diameter [mm] 174 mm
Bore Diameter [mm] 17 mm
Supplementary Article/Info 2 with bolts/screws
MAPP code available
Test Mark E1 90R-02C0115/0597
Utility numbers
425160, 24794, DF4392S, 150.3431.20, 150.3431.52
OE numbers
BMW: 34 11 3 400 151, 92141505
ATE - 24012501601-ATE - Brake Disc 14.02.2025
Page 1 From
2
Images

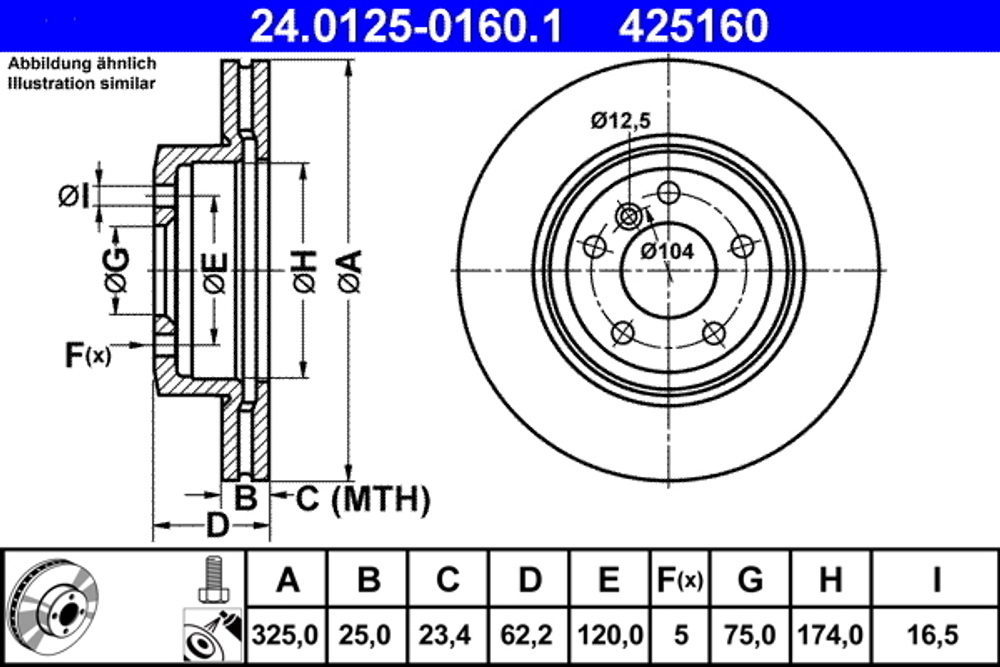

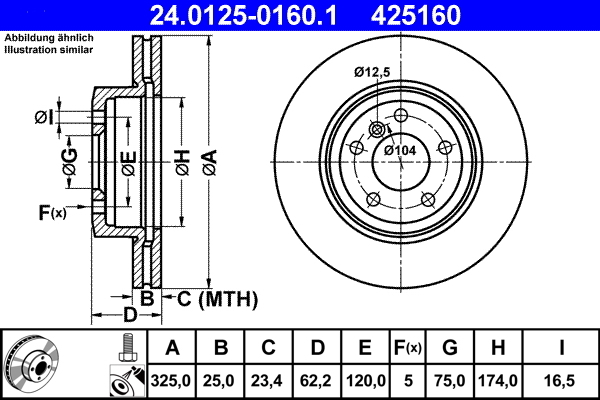

ATE - 24012501601-ATE - Brake Disc
