ATE - 24012501581-ATE - Brake Disc

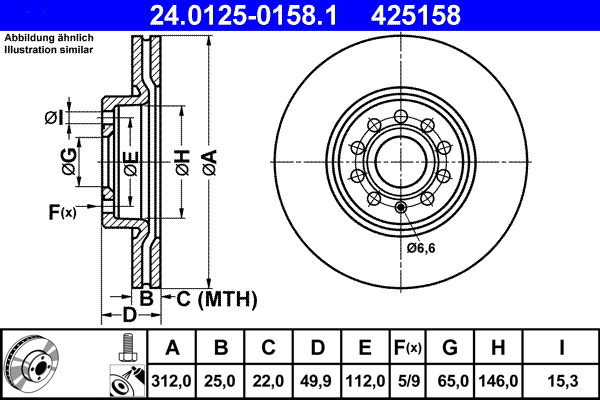

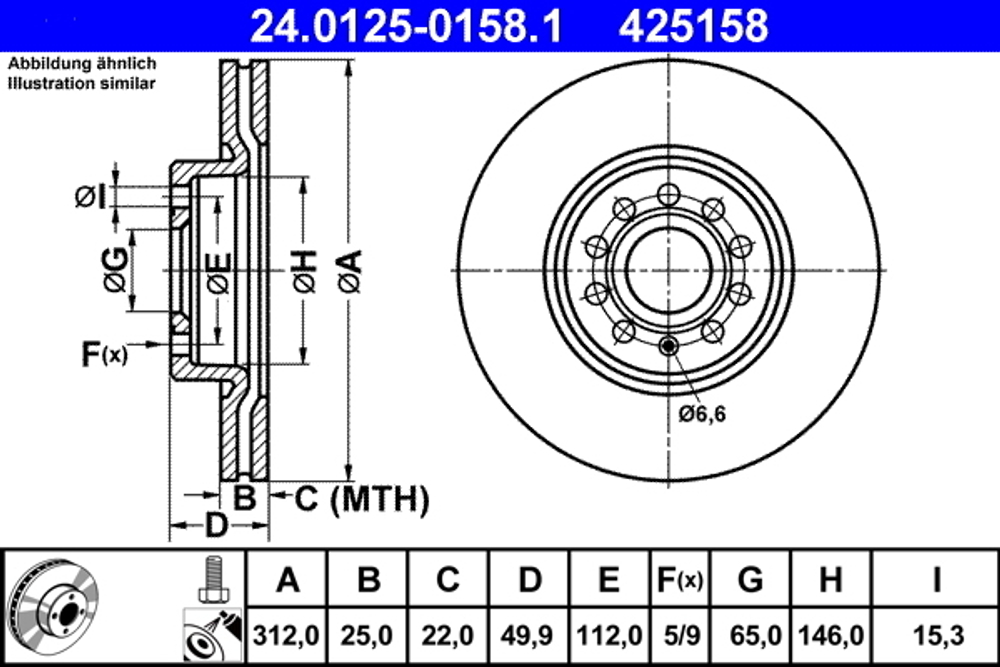

OE numbers SEAT JZW 615 301 H 1K0 615 301 AA 5Q0 615 301 F Skoda JZW 615 301 H 1K0 615 301 AA 5Q0 615 301 F VAG JZW 615 301 H 1K0 615 301 AA 5C0 615 301 B 5Q0 615 301 F. Graphic Preview. Characteristics Diameter [mm] 312 mm Brake Disc Thickness [mm] 25 mm Minimum thickness [mm] 22 mm Brake Disc Type Vented Machining High-carbon Surface Coated Number of Holes 5 No. of holes 2 9 Bolt Hole Circle Ø [mm] 112 mm Height [mm] 50 mm Centering Diameter [mm] 65 mm Inner Diameter [mm] 146 mm Bore Diameter [mm] 15 mm Supplementary Article/Info 2 with bolts/screws MAPP code available Test Mark E1 90R-02C0115/1001
