ATE - 24012501451-ATE - Brake Disc

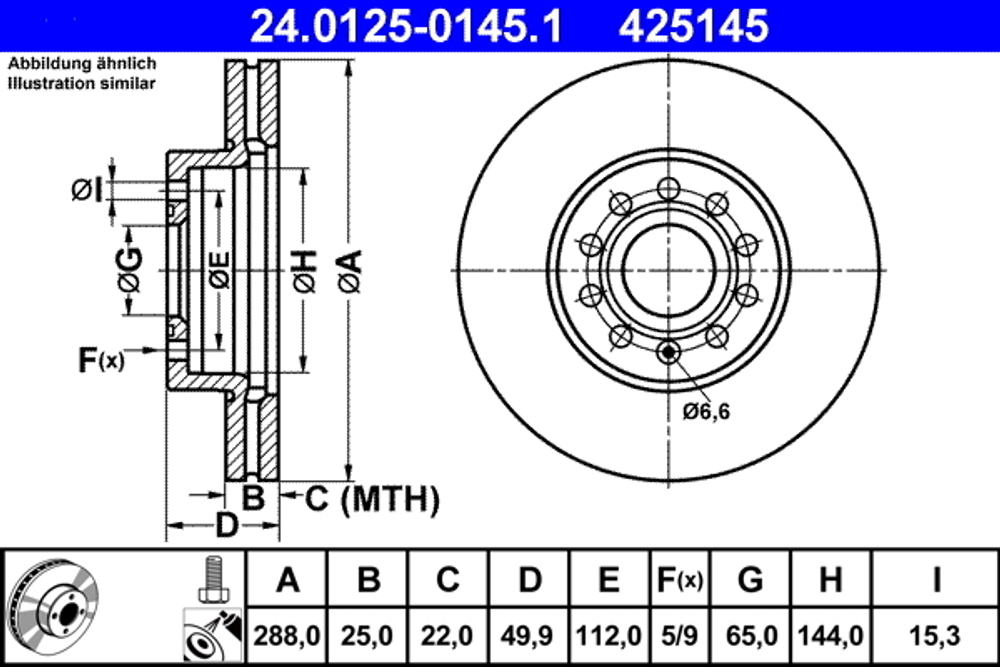

Graphic Preview. OE numbers Ford VWN3CA-1125-AA 2631430 SEAT JZW 615 301 J 1K0 615 301 T 5Q0 615 301 H Skoda JZW 615 301 J 1K0 615 301 T 5Q0 615 301 H VAG JZW 615 301 J 1K0 615 301 K 1K0 615 301 T 5C0 615 301 A 5Q0 615 301 H. Characteristics Diameter [mm] 288 mm Brake Disc Thickness [mm] 25 mm Minimum thickness [mm] 22 mm Brake Disc Type Vented Machining High-carbon Surface Coated Number of Holes 5 No. of holes 2 9 Height [mm] 50 mm Centering Diameter [mm] 65 mm Inner Diameter [mm] 144 mm Bolt Hole Circle Ø [mm] 112 mm Bore Diameter [mm] 15 mm Supplementary Article/Info 2 with bolts/screws MAPP code available Test Mark E1 90R-02C0115/0010
