ATE - 24011202101

Dealer part number 24011202101-ATE
Part Number 24.0112-0210.1
Packing unit 1
Quantity per PU 2
Parts state Normal
EAN 4006633415705

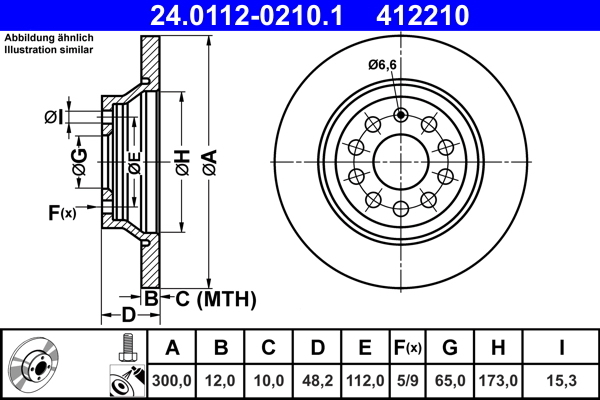

Characteristics
Outer Diameter [mm] 300,0 mm
Brake Disc Thickness [mm] 12,0 mm
Brake Disc Type Solid
Surface Coated
Number of Holes 5
Bolt Hole Circle Ø [mm] 112,0 mm
Height [mm] 48,2 mm
Centering Diameter [mm] 65,0 mm
Supplementary Article/Info 2 with bolts/screws
MAPP code available
Test Mark E1 90R-02C0165/0904
Minimum thickness [mm] 10,0 mm
No. of holes 2 9
Inner Diameter [mm] 173,0 mm
Bore Diameter [mm] 15,3 mm
Additional parts information
Utility numbers
DF6504
Utility numbers
412210
OE numbers
VAG: 3Q0 615 601, 3Q0 615 601 A
ATE - 24011202101-ATE - Brake Disc 26.10.2024
Page 1 From
2
Images

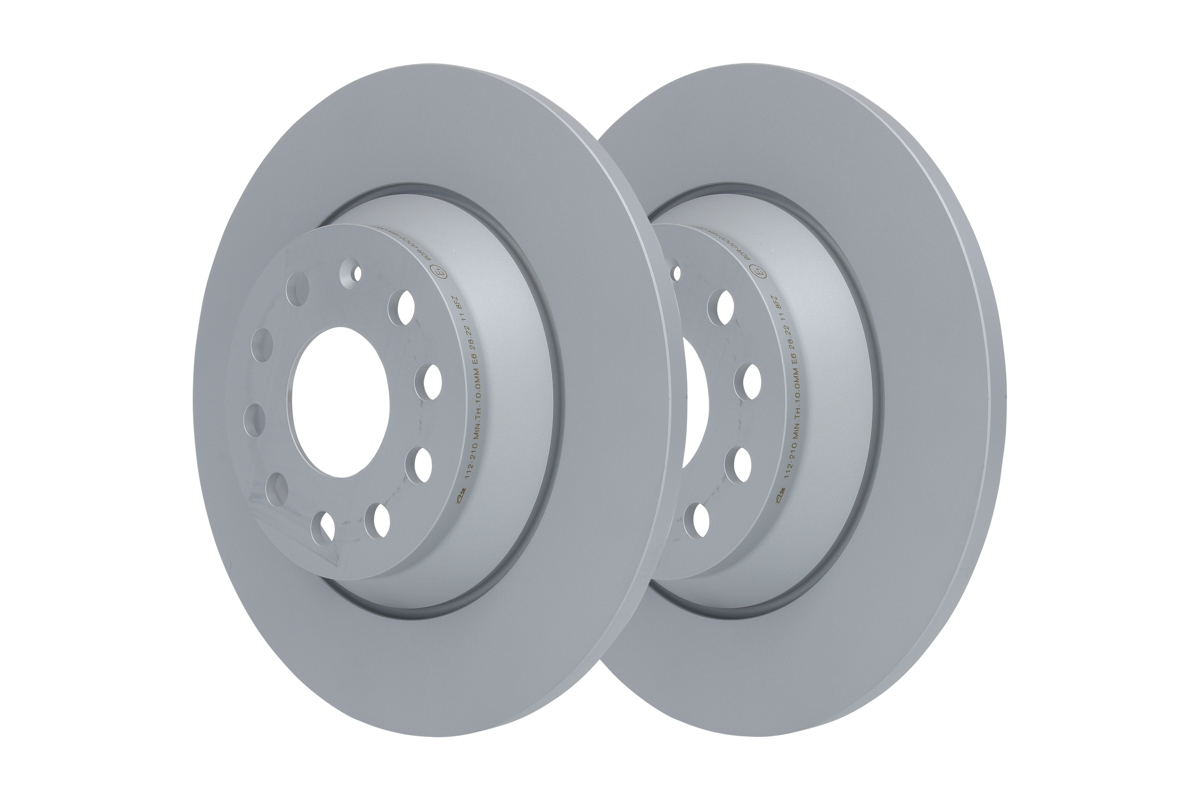

ATE - 24011202101-ATE - Brake Disc
