Dealer part number 24011002781-ATE
Part Number 24.0110-0278.1
Packing unit 1
Quantity per PU 2
Parts state Normal
EAN 4006633130103
Characteristics
Diameter [mm] 300 mm
Brake Disc Thickness [mm] 10 mm
Minimum thickness [mm] 8,3 mm
Brake Disc Type Solid
Number of Holes 5
Surface Coated
Height [mm] 68 mm
Centering Diameter [mm] 67 mm
Inner Diameter [mm] 180 mm
Bolt Hole Circle Ø [mm] 112 mm
Bore Diameter [mm] 15 mm
Supplementary Article/Info 2 with bolts/screws
MAPP code available
Test Mark E1 90R-02C0248/0999
Utility numbers
410278, 22160, 400.3621.20
OE numbers
Mercedes-Benz: A 000 423 10 12, A 211 423 07 12, 000 423 10 12, 211 423 07 12
Additional information
Installation Information
Warning notice
----------------------
Work on the SBC brake system may only be carried
out by trained specialists!
¿ Risk of injury!
¿ System is pressurized!
¿ Observe manufacturer¿s guidelines!
¿ Before starting maintenance and repair work the
system must be deactivated.
¿ After finishing maintenance and repair work the
system must be reactivated.
¿ Only use appropriate service and diagnosis equipment!
ATE - 24011002781-ATE - Brake Disc 03.02.2025
Page 1 From
3
Additional information
¿ Recommendation:
ContiSys Check Item no. 03.9301-6000.4
ContiSys Scan Item no. 03.9301-5000.4, 92115405
Bleeding unit ATE FB 30s Item no. 03.9302-3010.4
Continental is not liable for damages which occur due
to incorrect installation of the product.
ATE - 24011002781-ATE - Brake Disc 03.02.2025
Page 2 From
3

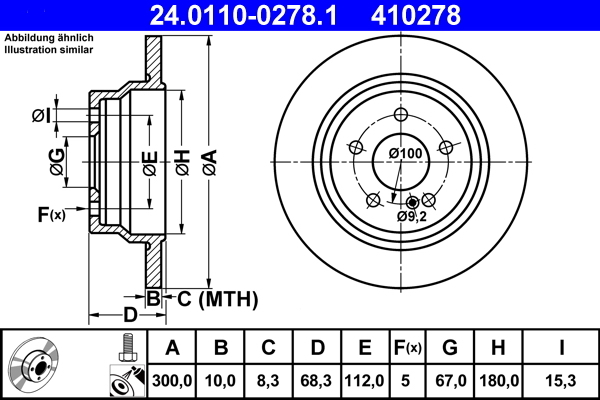

Images
ATE - 24011002781-ATE - Brake Disc
