Dealer part number 13047026362-ATE
Part Number 13.0470-2636.2
Parts Description ATE Ceramic
Packing unit 1
Quantity per PU 1
Parts state Normal
EAN 4006633494151
Characteristics
Width [mm] 175 mm
Height [mm] 79 mm
Thickness [mm] 17 mm
Wear Warning Contact prepared for wear warning indicator
excl. wear warning contact
Supplementary Article/Info 2 with brake caliper screws
Number of bolts/screws 6
Brake System TRW
Test Mark E1 90R-02A0479/0770
MAPP code available
Permissible up to vehicle capacity [kW] 225 kW
Utility numbers
22485, 22486, LD2636
OE numbers
Jaguar: JDE39759
Land Rover: LR091308, LR110409, LR128251
Additional information
Technical Information
Technically it is possible to combine ATE Ceramic brake pads
with the PowerDisc or with perforated brake discs. The brak
ing power with such a pairing is the same as with an origina
l ATE brake pad or OE brake pad. However, when the two compo
nents interact they can generate more noise in braking. ATE
Ceramic brake pads were developed for comfort-oriented drive
rs. We therefore recommend using them with normal brake disc
s, i.e. smooth ones.
ATE - 13047026362-ATE - Brake Pad Set, disc brake 29.12.2024 2248505
Page 1 From
2
Images

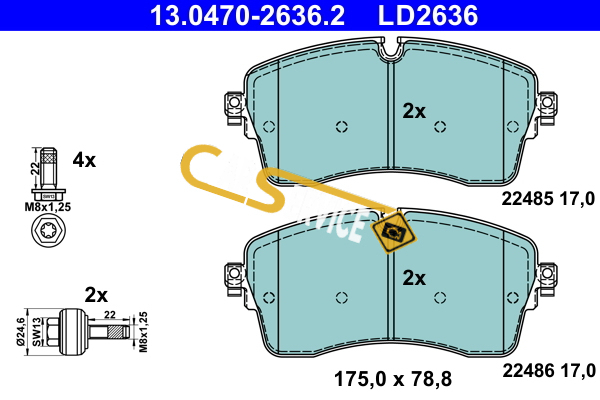

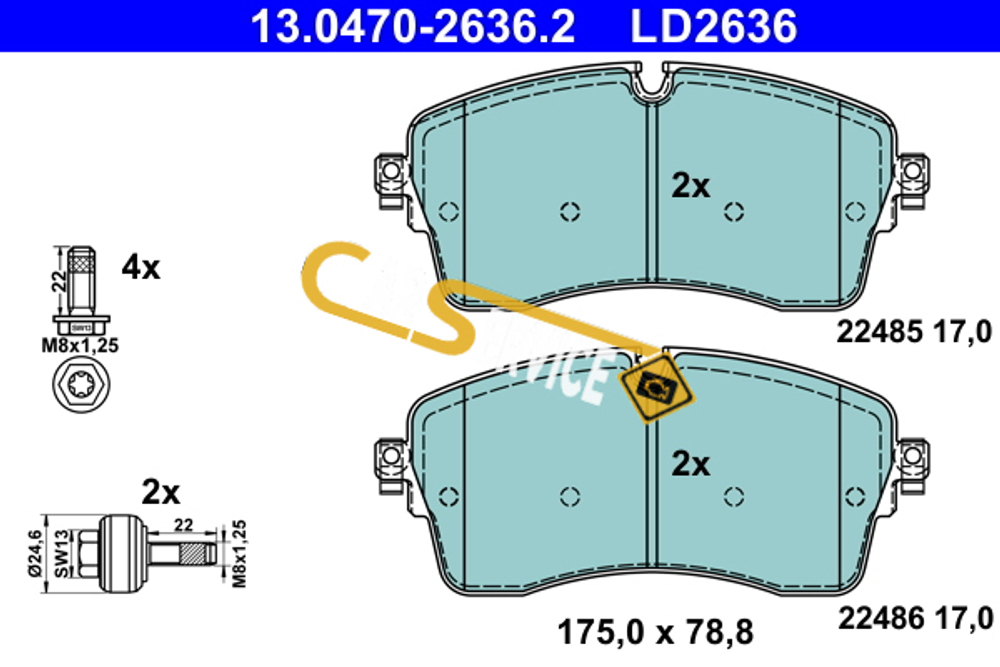

ATE - 13047026362-ATE - Brake Pad Set, disc brake
