Dealer part number A4048-ASL
Part Number A4048
Parts Description AS
Packing unit 1
Quantity per PU -
Parts state Normal
EAN 5901259405408
Vehicle Saab 9-3 II (YS3F, E79, D79, D75) 1.9
TiD
Constr.year 09.04 - 02.15
Power 110kW / 150HP
Capacity 1910
Engine Code Z 19 DTH
KBA Keynumber 9116 438 , 9116 ABD
Properties vehicle
Manufacturer Restriction MAGNETI MARELLI
Characteristics
Voltage [V] 12 V
Alternator Charging Current [A] 130 A
Pulleys without belt pulley
for OE number 63377491
Quality STANDARD LINE
New part without deposit
Utility numbers
113904
OE numbers
Fiat: 71724804, 71755142
General Motors: R1530099
Opel: R1530099, 1204434, 13117236, 13153236, 6204189, 93169030, 93169031, 93169259, 93180104, 9562208
Parts list
Part Number Parts Description Quantity
AB4001-ASL
AS-PL
AB4001
Carbon Brush, alternator
AS
Voltage: 12, Thickness: 4,00, Width: 7,00, Height: 22
1
ABE9006-ASL
AS-PL
ABE9006
Bearing
AS
Inner Diameter: 17, Height: 14, Outer Diameter: 47
1
ABE9006NTN-ASL
AS-PL
ABE9006(NTN)
Bearing
NTN
Inner Diameter: 17, Height: 14, Outer Diameter: 47
1
AS-PL - A4048-ASL - Alternator 24.01.2026
Page 1 From
8
Parts list
Part Number Parts Description Quantity
ABE9006(NSK) Bearing
NSK
Inner Diameter: 17, Height: 14, Outer Diameter: 47
1
ABE9006BULK-ASL
AS-PL
ABE9006(BULK)
Bearing
AS
Inner Diameter: 17, Height: 14, Outer Diameter: 47
1
ABE9006SKF-ASL
AS-PL
ABE9006(SKF)
Bearing
SKF
Inner Diameter: 17, Height: 14, Outer Diameter: 47
1
ABE9039-ASL
AS-PL
ABE9039
Bearing
AS
Inner Diameter: 17, Height: 10,00, Outer Diameter: 35
1
ABE9039(NSK) Bearing
NSK
Inner Diameter: 17, Height: 10,00, Outer Diameter: 35
1
ABE9039SKF-ASL
AS-PL
ABE9039(SKF)
Bearing
SKF
Inner Diameter: 17, Height: 10,00, Outer Diameter: 35
1
ABEC4001-ASL
AS-PL
ABEC4001
Protective Cap, alternator
AS
Outer Diameter: 37, Inner Diameter: 35, Height: 18
1
ABR4040 Protective Cap, alternator
AS
Outer Diameter: 138, Inner Diameter: 47, Height: 74
1
ABR4041 Protective Cap, alternator
AS
Outer Diameter: 137, Inner Diameter: 35, Height: 68
1
ABR4042 Protective Cap, alternator
AS
Outer Diameter: 138, Inner Diameter: 47, Height: 73
1
AFP4002-ASL
AS-PL
AFP4002
Alternator Freewheel Clutch
AS
Number of ribs: 6, Thread Size: M17x1,5
1
AFP4002INA-ASL
AS-PL
AFP4002(INA)
Alternator Freewheel Clutch
Ina
Number of ribs: 6, Thread Size: M17x1,5
1
AFP4002(V) Alternator Freewheel Clutch
AS
Number of ribs: 6, Thread Size: M17x1,5
1
APC4018 Protective Cap, alternator
AS
1
AS4007-ASL
AS-PL
AS4007
Stator, alternator
AS
Voltage: 12, Alternator Charging Current: 140, Inner Diameter: 100, Outer Diameter 1: 120
1
ASL9014-ASL
AS-PL
ASL9014
Slip Ring, alternator
AS
Outer Diameter 1: 17, Inner Diameter 1: 6,70, Inner Diameter 2: 17, Height 1: 8,00, Height
2: 8,00, Length 1: 78, Outer Diameter 2: 31
1
AS-PL - A4048-ASL - Alternator 24.01.2026
Page 2 From
8
Parts list
Part Number Parts Description Quantity
ASL9014(BULK) Slip Ring, alternator
AS
Outer Diameter 1: 17, Inner Diameter 1: 6,70, Inner Diameter 2: 17, Height 1: 8,00, Height
2: 8,00, Length 1: 78, Outer Diameter 2: 31
1
ARS9001 Repair Set, alternator
AS
Inner Diameter 1: 17, Outer Diameter 1: 30, Thickness: 1,60
1
ARS4007 Repair Set, alternator
AS
Outer Diameter 1: 13, Inner Diameter 1: 9,60
1
ARS4013 Repair Set, alternator
AS
Length 1: 28
1
ARS4010 Repair Set, alternator
AS
Length 1: 11
1
ARS4006 Repair Set, alternator
AS
Length 1: 19
1
ARS4003 Repair Set, alternator
AS
Length 1: 33
1
ARS4005 Repair Set, alternator
AS
Thickness: 7,80
1
ARS4009 Repair Set, alternator
AS
Length 1: 93
1
ARS4011 Repair Set, alternator
AS
Outer Diameter 1: 15, Inner Diameter 1: 5,90, Height 1: 7,20, Outer Diameter 2: 8,80, Inner
Diameter 2: 13
1
ARS4012 Repair Set, alternator
AS
Outer Diameter 1: 5,70, Inner Diameter 1: 4,50, Width: 12, Height 1: 16
1
ARS4012(BULK) Repair Set, alternator
AS
Outer Diameter 1: 5,70, Inner Diameter 1: 4,50, Width: 12, Height 1: 16
1
ARS4015 Repair Set, alternator
AS
Outer Diameter 1: 61, Inner Diameter 1: 32, Thickness: 5,50
1
ARS0017 Repair Set, alternator
AS
Outer Diameter 1: 18
1
ABE9006FAGBULK-ASL
AS-PL
ABE9006(FAG)(BULK)
Bearing
FAG
Inner Diameter: 17, Height: 14, Outer Diameter: 47
1
ABE9006FAG-ASL
AS-PL
ABE9006(FAG)
Bearing
FAG
Inner Diameter: 17, Height: 14, Outer Diameter: 47
1
AS-PL - A4048-ASL - Alternator 24.01.2026
Page 3 From
8
Parts list
Part Number Parts Description Quantity
ABE9006NSKBULK-ASL
AS-PL
ABE9006(NSK)(BULK)
Bearing
NSK
Inner Diameter: 17, Height: 14, Outer Diameter: 47
1
ABE9006NTNBULK-ASL
AS-PL
ABE9006(NTN)(BULK)
Bearing
NTN
Inner Diameter: 17, Height: 14, Outer Diameter: 47
1
ABE9006(SKF)(BULK) Bearing
SKF
Inner Diameter: 17, Height: 14, Outer Diameter: 47
1
ARS9057S(BULK) Repair Set, alternator
AS
Length 1: 13
1
ARS9057S Repair Set, alternator
AS
Length 1: 13
1
ABE9039KOYO-ASL
AS-PL
ABE9039(KOYO)
Bearing
Koyo
Inner Diameter: 17, Height: 10,00, Outer Diameter: 35
1
ARS9047 Repair Set, alternator
AS
Thickness: 6,30
1
ARS9030 Repair Set, alternator
AS
Thickness: 6,00, Outer Diameter 1: 13
1
ARS6006 Repair Set, alternator
AS
Length 1: 38
1
ARS9075S Repair Set, alternator
AS
Thickness: 4,90, Outer Diameter 1: 11
1
ARS1019S Repair Set, alternator
AS
Length 1: 20
1
ARS9030(BULK) Repair Set, alternator
AS
Thickness: 6,00, Outer Diameter 1: 13
1
ARS4045S Repair Set, alternator
AS
Thickness: 28, Width: 27, Length 1: 33
1
ABEC4002-ASL
AS-PL
ABEC4002
Protective Cap, alternator
AS
Outer Diameter: 37, Inner Diameter: 35, Height: 18
1
AR4007 Rotor, alternator
AS
Voltage: 12, Alternator Charging Current: 120, Outer Diameter: 100, Length 1: 160
1
ARC4022-ASL
AS-PL
ARC4022
Rectifier, alternator
AS
Outer Diameter: 121, Rated Current: 50, Number of diodes: 6
1
AS-PL - A4048-ASL - Alternator 24.01.2026
Page 4 From
8
Parts list
Part Number Parts Description Quantity
ARC4021-ASL
AS-PL
ARC4021
Rectifier, alternator
AS
Outer Diameter: 121, Rated Current: 50, Number of diodes: 6
1
AB4001(BULK) Carbon Brush, alternator
AS
Voltage: 12, Thickness: 4,00, Width: 7,00, Height: 22
1
ARS9031(BULK) Repair Set, alternator
AS
Thickness: 10,00
1
ARS9047(BULK) Repair Set, alternator
AS
Thickness: 6,30
1
ARS9075S(BULK) Repair Set, alternator
AS
Thickness: 4,90, Outer Diameter 1: 11
1
ZS0002 Bearing
AS
1
ZS0003-ASL
AS-PL
ZS0003
Carbon Brush, alternator
AS
1
ARC4022P Rectifier, alternator
AS
Outer Diameter: 122, Rated Current: 50, Number of diodes: 6
1
ARE4012-ASL
AS-PL
ARE4012
Alternator Regulator
AS
Voltage: 12
1
ARE4012S Alternator Regulator
AS
Voltage: 12
1
ARE4022-ASL
AS-PL
ARE4022
Alternator Regulator
AS
Voltage: 12
1
ARS4040SR Repair Set, alternator
Remanufactured AS
Outer Diameter 1: 61, Inner Diameter 1: 30, Thickness: 3,00, Spare part without deposit:
1
ABE9006(KOYO) Bearing
Koyo
Inner Diameter: 17, Height: 14, Outer Diameter: 47
1
ABE9006(NACHI) Bearing
Nachi
Inner Diameter: 17, Height: 14, Outer Diameter: 47
1
ABE9006(NACHI)(BULK) Bearing
Nachi
Inner Diameter: 17, Height: 14, Outer Diameter: 47
1
AS-PL - A4048-ASL - Alternator 24.01.2026
Page 5 From
8
Images

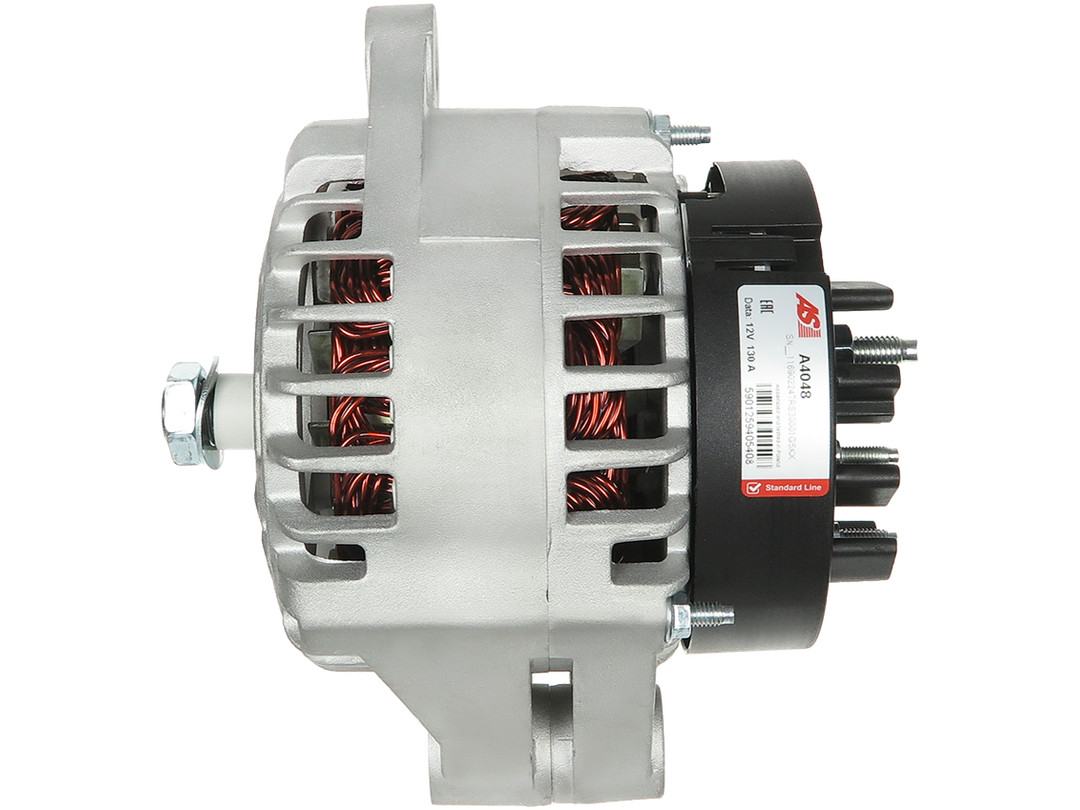

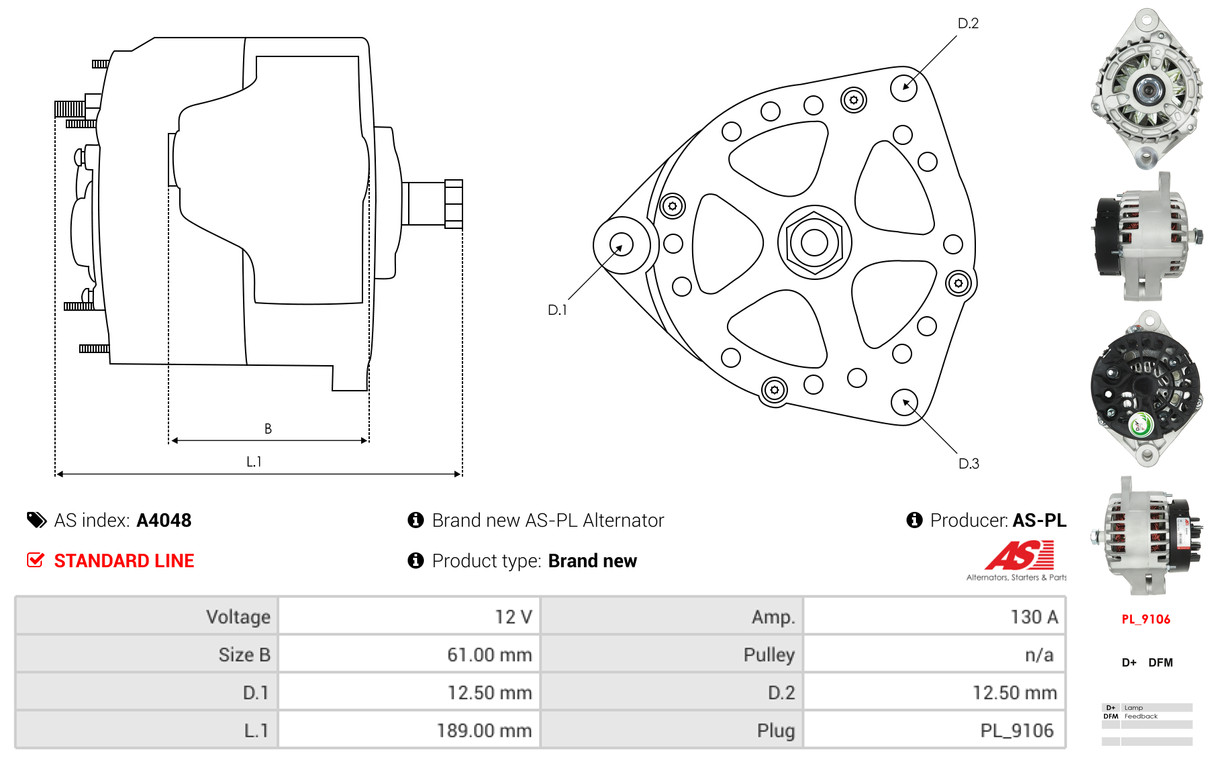

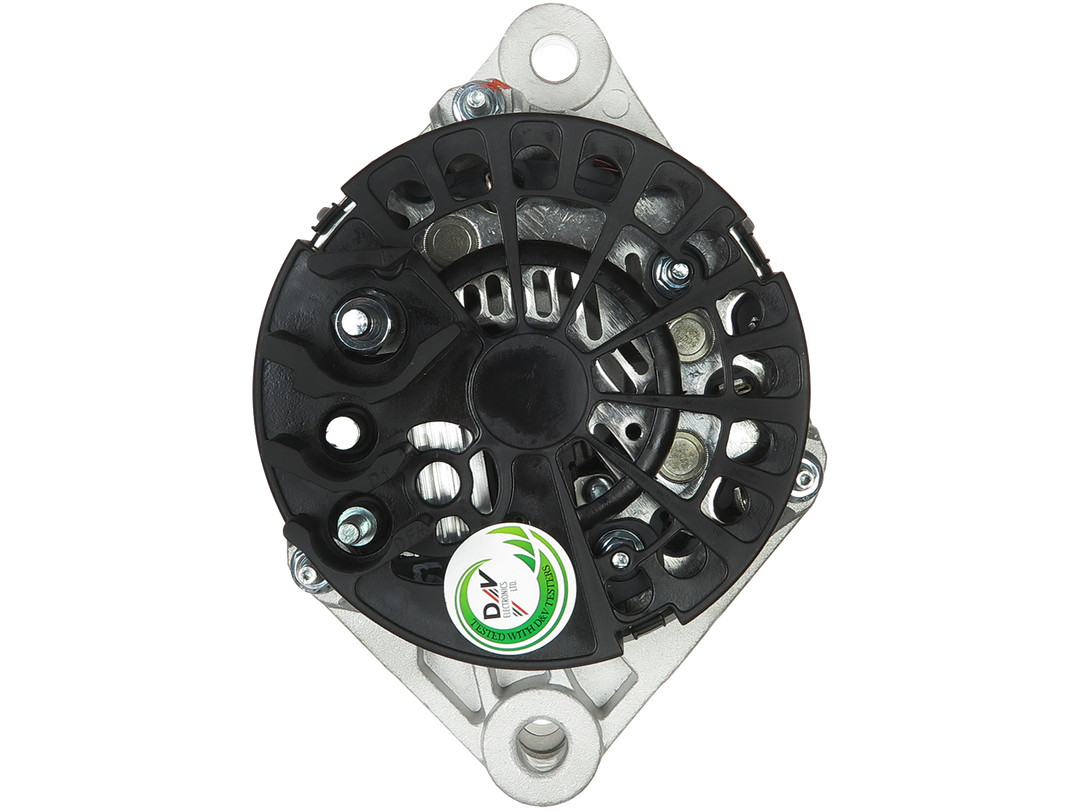

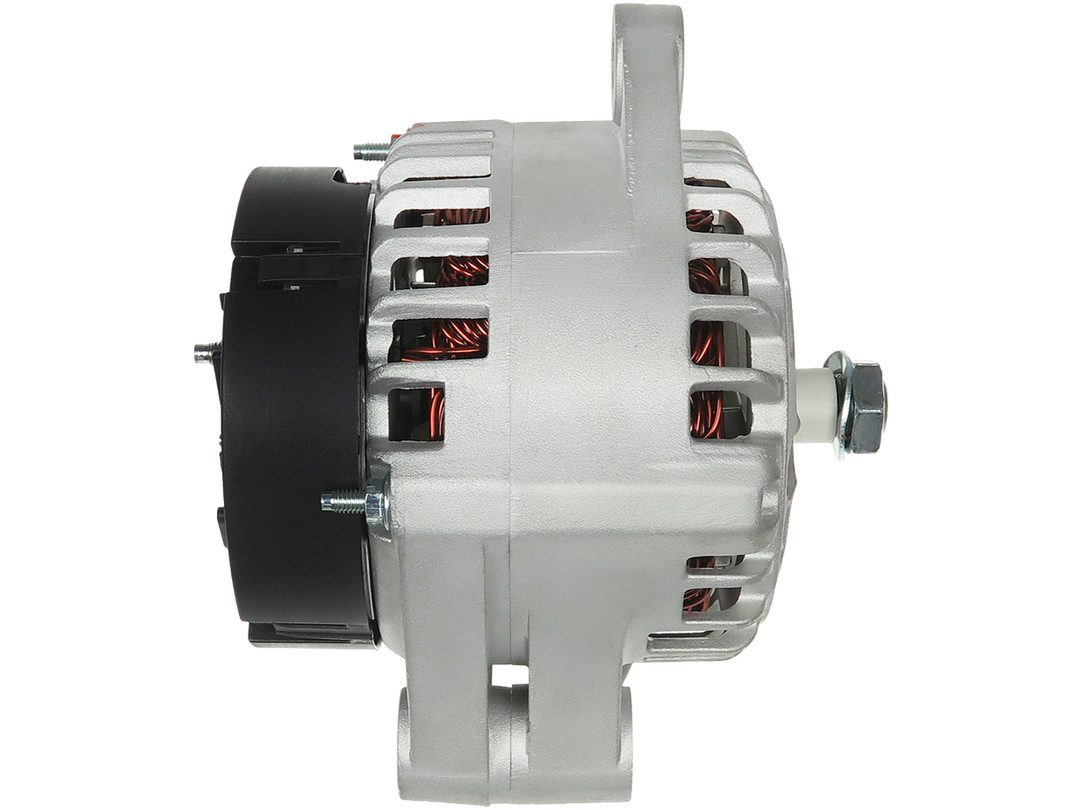

AS-PL - A4048-ASL - Alternator
