TEXTAR - 92265625-TET - Brake Disc

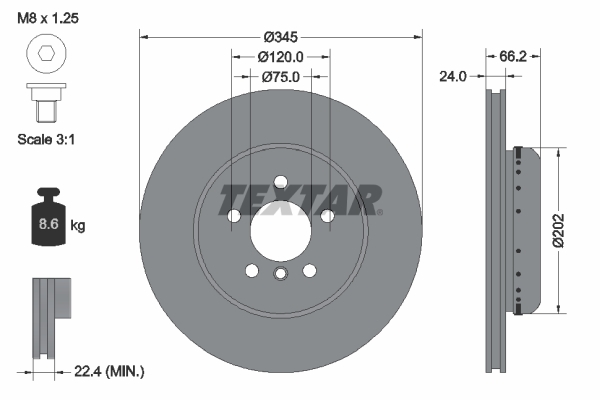

Properties vehicle Fitting Position Rear Axle Suspension for vehicles with M technology Braking System for vehicles without Performance brakes Brake Caliper Colour blue. Characteristics Brake Disc Type internally vented two-piece brake disc Diameter [mm] 345 mm Brake Disc Thickness [mm] 24 mm Height [mm] 66 mm Minimum thickness [mm] 22 mm Machining High-carbon Surface Coated Inner Diameter [mm] 185 mm Bolt Hole Circle Ø [mm] 120 mm Centering Diameter [mm] 75 mm Hole Arrangement/Number 05/06 Wheel Bolt Bore Diameter [mm] 17 mm Supplementary Article/Supplementary Info 2 without wheel hub without wheel bearing without wheel studs with bolts/screws Number of bolts/screws 2 Packaging length [cm] 37,8 cm Packaging width [cm] 37,8 cm Packaging height [cm] 15,5 cm Weight [kg] 8,6 kg. Graphic
